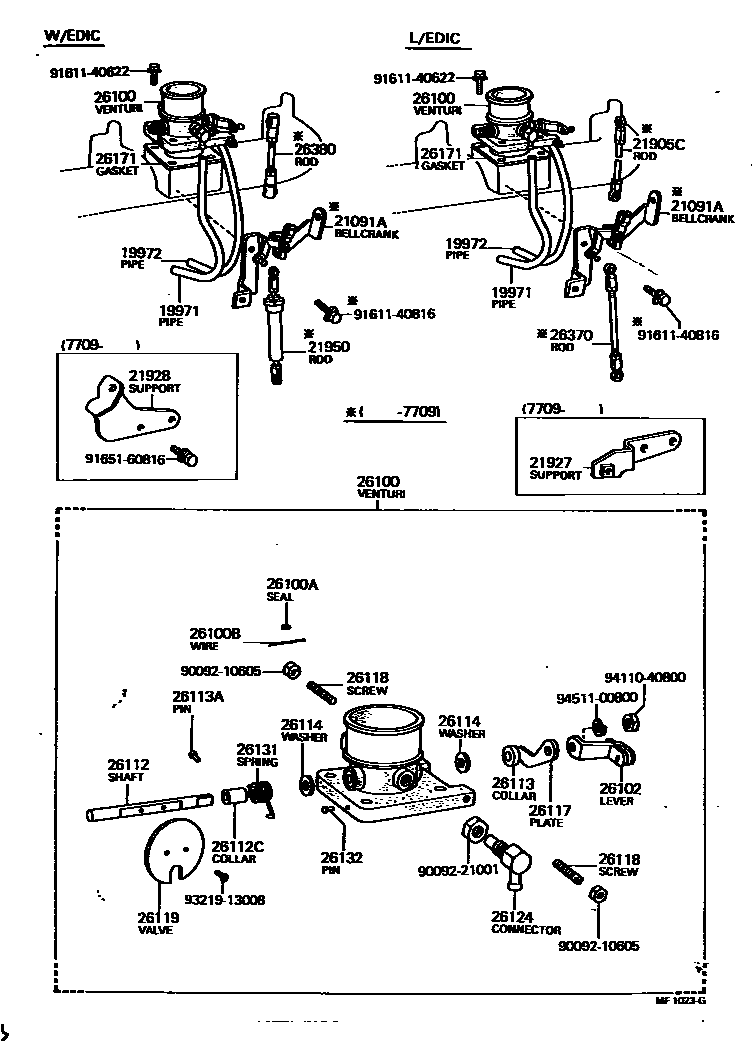

VENTURI

0001 1 0002 1

19971PIPE, VACUUM(FOR VENTURI)

main90446-12185iH..HJ45197204-197710

L=245

main90446-12202iH..HJ45197710-198007

L=220

main90447-12003iB..BJ4#197709-198007

main90447-12019iB..BJ4#197402-197709

19972PIPE, AIR CLEANER VENT

main90446-12185iH..HJ45197204-197709

L=245

main90446-12202iH..HJ45197709-198007

L=220

main90447-12003iB..BJ4#197709-198007

main90447-12019iB..BJ4#197402-197709

21091ABELLCRANK, CHOKE ROD(FOR VENTURI)

main21091-56020iB..BJ4#197402-197709

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-47031iH..HJ45197204-198007

main21905-56020iB..BJ4#197402-197709

21927SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)

main21927-56020iB..BJ4#197709-198007

L/EDIC

21928SUPPORT, THROTTLE WIRE

main21928-47031iH..HJ45197204-197306

main21928-47032iH..HJ45197306-197709

main21928-47040iH..HJ45197709-198007

main21928-56040iB..BJ4#197709-198007

21950ROD ASSY, ACCELERATOR CONNECTING

main21950-56010iB..BJ4#197402-197709

W/EDIC

26100VENTURI ASSY

main26100-47040iH..HJ45197204-197306

main26100-47041iH..HJ45197306-197709

main26100-47060iH..HJ45197709-198007

main26100-56020iB..BJ4#197402-197709

main26100-56040iB..BJ4#197709-198007

26100ASEAL, LEAD

main22354-76010iB..BJ4#; H..HJ45197204-197709

main22354-77050iB..BJ4#; H..HJ45197709-198007

26100BWIRE, SEAL

main22355-36010iB..BJ4#197709-198007

main22355-76010iB..BJ4#; H..HJ45197204-197709

26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING

main26102-47040iH..HJ45197204-197709

main26102-56020iB..BJ4#197402-197709

main26102-56040iB..BJ4#197709-198007

main26111-47060iH..HJ45197709-198007

26112SHAFT, VENTURI THROTTLE VALVE

main26112-47012iH..HJ45197204-198007

main26112-56010iB..BJ4#197402-197709

main26112-56030iB..BJ4#197709-198007

26112CCOLLAR, ADJUSTING

main26113-56010iB..BJ4#197402-198007

26113COLLAR, THROTTLE VALVE SHAFT

main26113-47020iB..BJ4#; H..HJ45197204-198007

26113APIN, THROTTLE VALVE SHAFT

main26132-56011iB..BJ4#197402-198007

26114WASHER, THROTTLE VALVE SHAFT ADJUSTING

main26114-76010iB..BJ4#; H..HJ45197204-198007

T=0.1,T=0.1

main26115-76010iB..BJ4#; H..HJ45197204-198007

T=0.2,T=0.2

main26116-76010iB..BJ4#; H..HJ45197204-198007

T=0.5,T=0.5

26117PLATE, THROTTLE VALVE SHAFT STOP

main26117-47050iH..HJ45197709-198007

main26117-48010iH..HJ45197204-197709

main26117-56010iB..BJ4#197709-198007

main26117-56020iB..BJ4#197402-197709

26118SCREW, STOP PLATE ADJUSTING

main26118-48014×2iB..BJ4#197402-198007

main26118-76010×2iH..HJ45197204-198007

26119VALVE, VENTURI THROTTLE

main26119-47012iH..HJ45197204-198007

main26119-48010iB..BJ4#197402-197709

main26119-56030iB..BJ4#197709-198007

26124CONNECTOR, VENTURI PIPE

main26124-47010iH..HJ45197204-197709

main26124-47060iH..HJ45197709-198007

main26124-48010iB..BJ4#197402-198007

26131SPRING, RETURN

main26131-48014iB..BJ4#197402-197709

main26131-56010iB..BJ4#197709-198007

26132PIN

main26132-56010iB..BJ4#197402-198007

26171GASKET, VENTURI

main26171-46010iB..BJ4#197402-197709

main26171-47010iH..HJ45197204-198007

main26171-56010iB..BJ4#197709-198007

26370ROD SUB-ASSY, PNEUMATIC GOVERNOR CONNECTING

main26370-56020iB..BJ4#197402-197709

26380ROD ASSY, GOVERNOR CONNECTING

main26380-56010iB..BJ4#197402-197709

W/EDIC

9009210605

main90092-10605

9009221001

main90092-21001

9161140622

main91611-40622

9161140816

main91611-40816

9165160816

main91651-60816

9321913008

main93219-13008

9411040800

main94110-40800

9451100800

main94511-00800

33 parts on this diagram · 2 diagrams in section
