SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W140iURJ150200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WC90×2supersedes 86160-60460iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

86160BSPEAKER ASSY, REAR

main86160-0WG20×2supersedes 86160-60430iURJ150200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WQ10supersedes 86160-60490iURJ150200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER,LH

main86160-0WQ20supersedes 86160-60490iURJ150200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER,RH

86160LSPEAKER ASSY, FRONT NO.4

main86160-0WQ60supersedes 86160-60530iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WQ00×2supersedes 86160-60470iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

86160TSPEAKER ASSY, REAR HEADER

main86160-0WQ70iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER,LH

main86160-0WQ80iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER,RH

86160YSPEAKER ASSY, REAR NO.2

main86160-0WQ40iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER,LH

main86160-0WQ50iURJ150201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER,RH

9011906915

main90119-06915

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

91631J0612

main91631-J0612

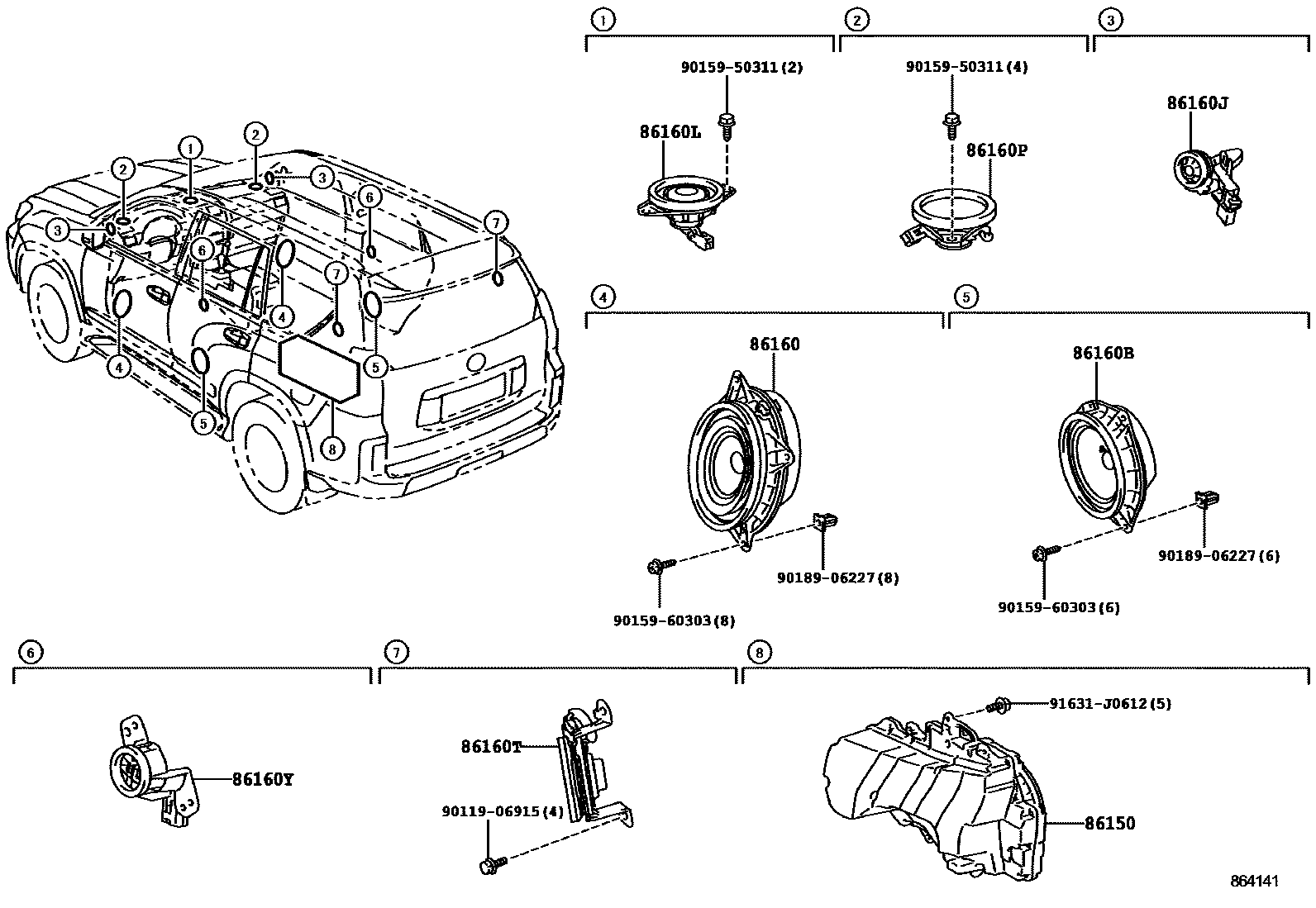

13 parts on this diagram · 1 diagram in section
