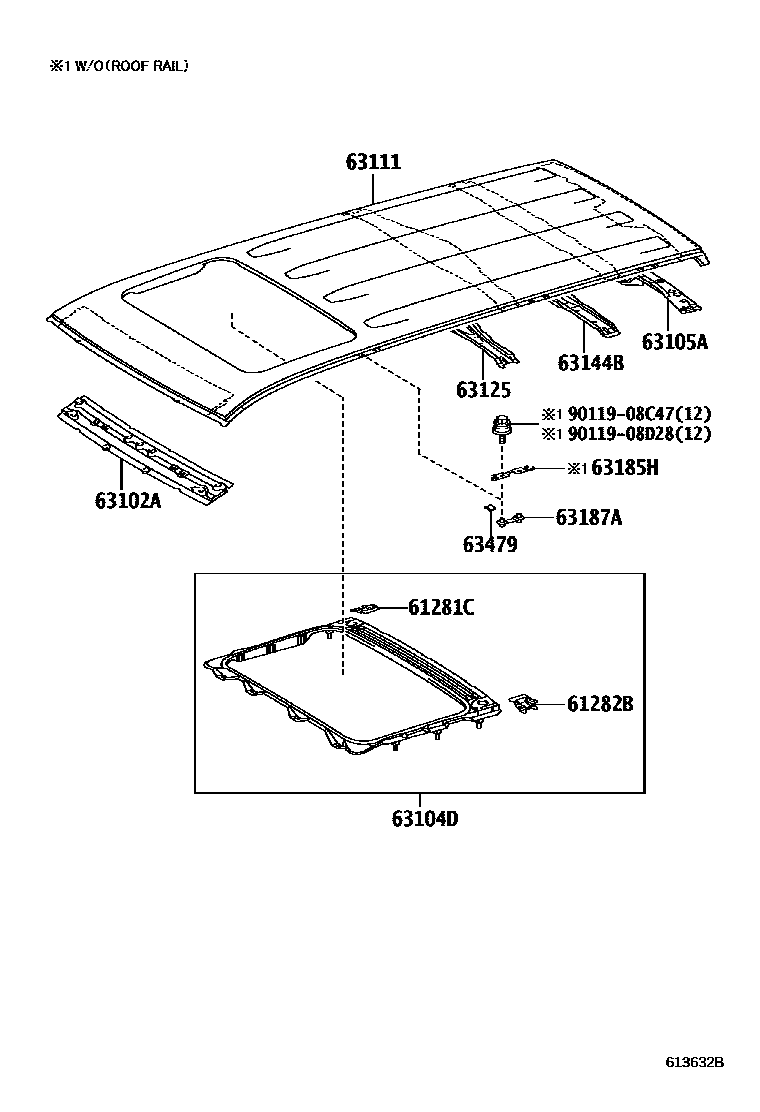

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RACK

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60050iURJ150200911-201308

61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH

main61282-60010iURJ150200911-201308

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60140iURJ150200911-201308

main63102-60141iURJ150201611-201908

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60070iURJ150200911-201308

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60300iURJ150200911-201308

63111PANEL, ROOF

main63111-60630iURJ150200911-201308

main63111-60840iURJ150201508-201908

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-60070iURJ150200911-201308

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60070iURJ150200911-201308

63185HBRACKET, ROOF RACK

main63185-42020×6iURJ150200911-201308

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6iURJ150201308-201908

63479RETAINER, ROOF INNER RACK

main63479-60020×6iURJ150201308-201908

9011908C47

main90119-08C47

9011908D28

main90119-08D28

13 parts on this diagram · 3 diagrams in section
