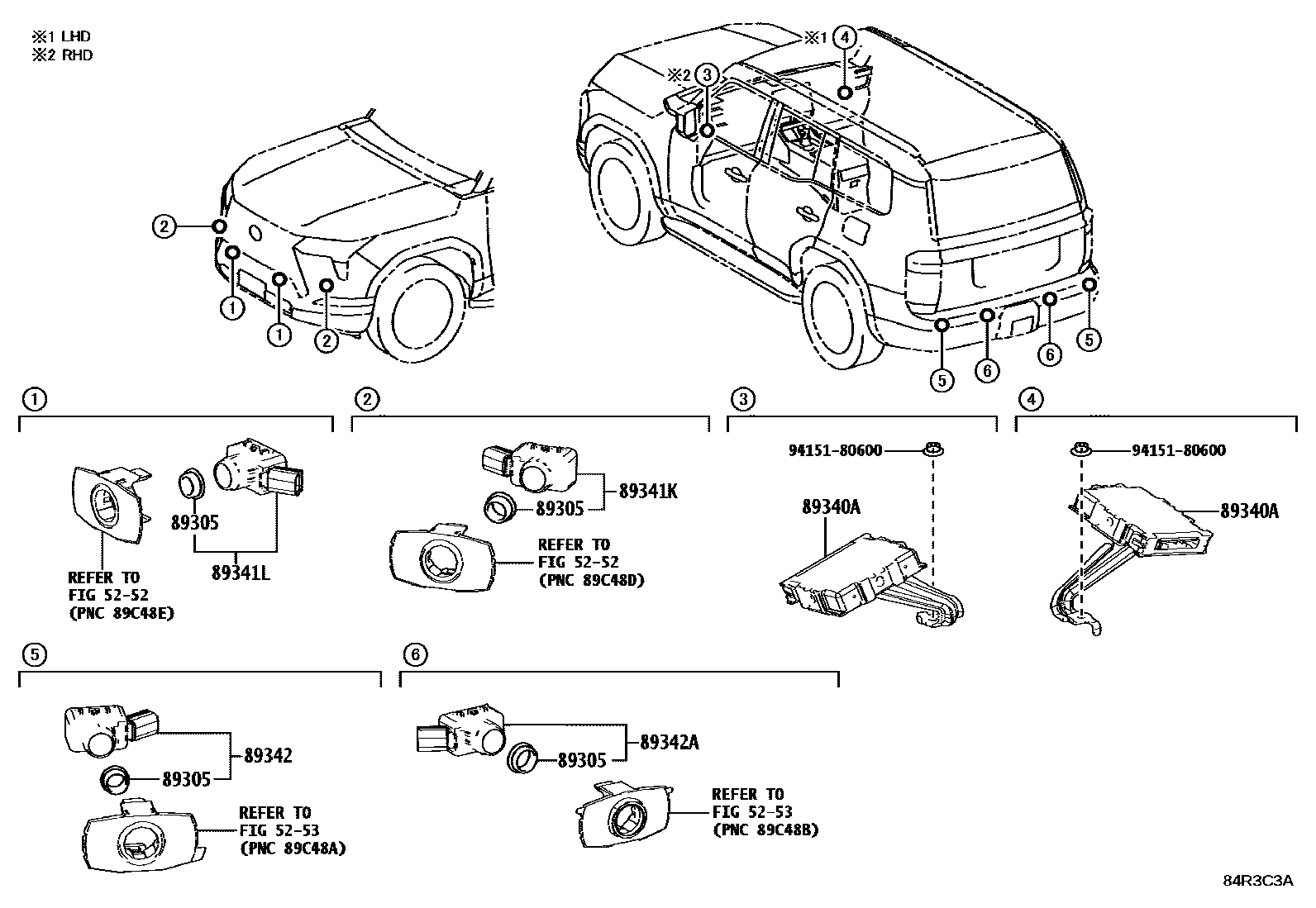

CLEARANCE & BACK SONAR
5252FRONT BUMPER & BUMPER STAY
5253REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
MOON DESERT,M08
SONIC TITANIUM,1J7 ,M06
MERCURY GRAY MC.,1H9
89341LSENSOR, ULTRASONIC, FRONT CENTER
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
MOON DESERT,M08
SONIC TITANIUM,1J7 ,M06
MERCURY GRAY MC.,1H9
89342SENSOR, ULTRASONIC, REAR CORNER
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
MOON DESERT,M08
SONIC TITANIUM,1J7 ,M06
MERCURY GRAY MC.,1H9
89342ASENSOR, ULTRASONIC, REAR CENTER
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
MOON DESERT,M08
SONIC TITANIUM,1J7 ,M06
MERCURY GRAY MC.,1H9
9415180600
main94151-80600
9 parts on this diagram · 1 diagram in section
