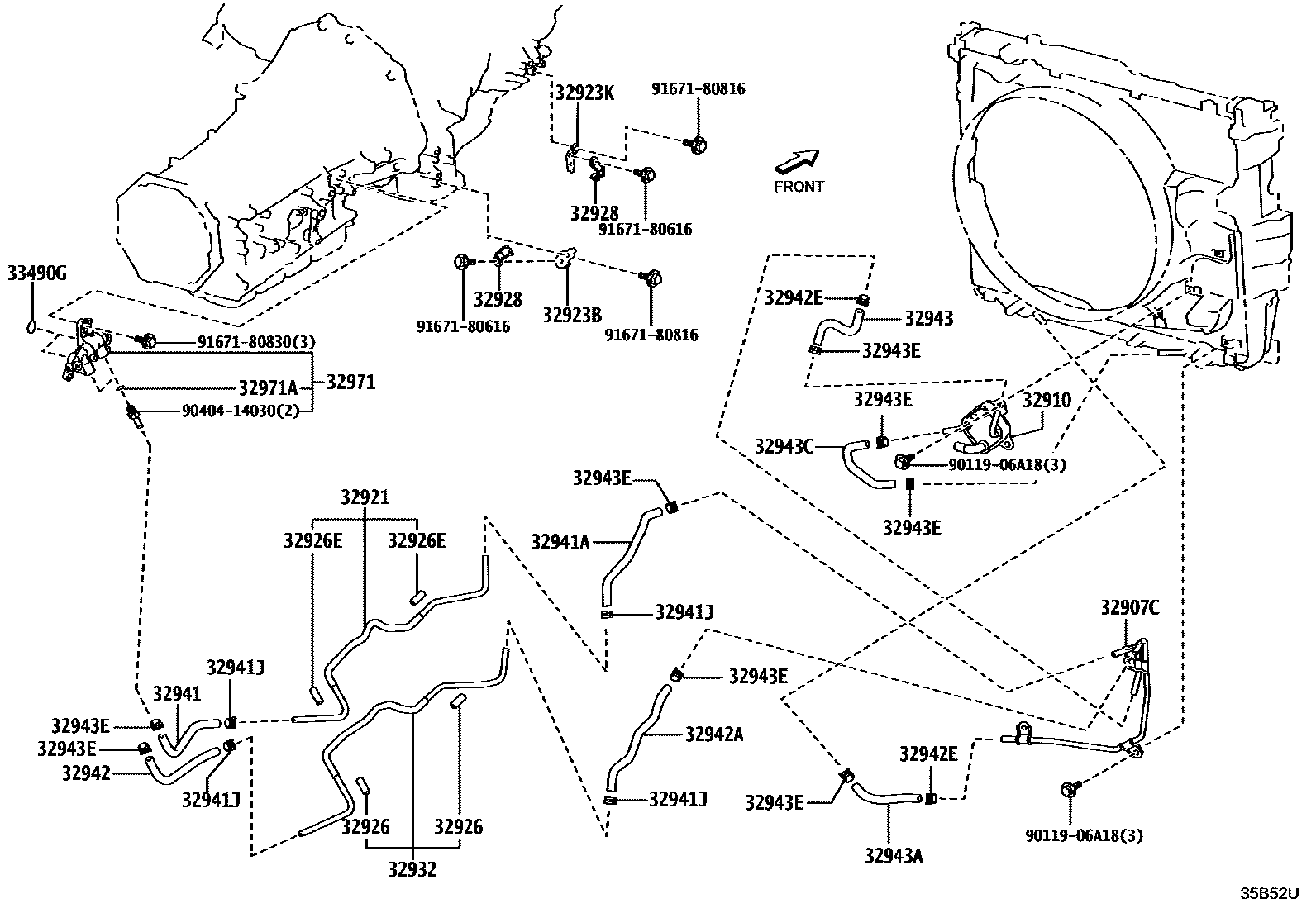

OIL COOLER & TUBE (ATM)

0001 1AJA0F 0002 1L580F

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60400iVJA252202402

32910COOLER ASSY, OIL

main32910-60190iVJA252202402

main32910-60200iTJH252202403

32921TUBE, OIL COOLER INLET, NO.1

main32921-60490iVJA252202402

main32921-60560iTJH252202403

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-60230iTJH252202403

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60220iVJA252202402

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32924-60210iVJA252202402

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iVJA252202402

L=35,ID=10

main32926-30030×2iTJH252202403

L=35,ID=10

main32926-60030×2iTJH252202403

L=45,ID=10

32926ECUSHION, OIL COOLER TUBE, NO.2(ATM)

main32926-30030×2iVJA252202402

main32926-60030×2iTJH252202403

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60170iTJH252202403

main32928-60180×2iVJA252202402

32932TUBE, OIL COOLER OUTLET

main32922-60520iVJA252202402

main32922-60590iTJH252202403

32941HOSE, OIL COOLER INLET, NO.1

main32941-60420iVJA252202402

main32941-60490iTJH252202403

32941AHOSE, OIL COOLER INLET, NO.2

main32941-60450iVJA252202402-202405

main32941-60451iVJA252202406

main32941-60500iTJH252202403

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×4iTJH252,VJA252202402

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60580iVJA252202402

main32942-60660iTJH252202403

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-60620iVJA252202402-202405

main32942-60621iVJA252202406

main32942-60670iTJH252202403

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iVJA252202402

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60870iTJH252202403

main32943-60880iVJA252202402-202405

main32943-60881iVJA252202406

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60890iVJA252202402-202405

main32943-60891iVJA252202406

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-60A00iVJA252202402-202405

main32943-60A01iVJA252202406

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×8iVJA252202402

32971THERMOSTAT, TRANSMISSION OIL

main32971-60030iVJA252202402

main32971-60040iTJH252202403

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main90301-11031×2iTJH252,VJA252202402

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iTJH252,VJA252202402

9011906A18

main90119-06A18

9040414030

main90404-14030

9167180616

main91671-80616

9167180816

main91671-80816

9167180830

main91671-80830

28 parts on this diagram · 2 diagrams in section
