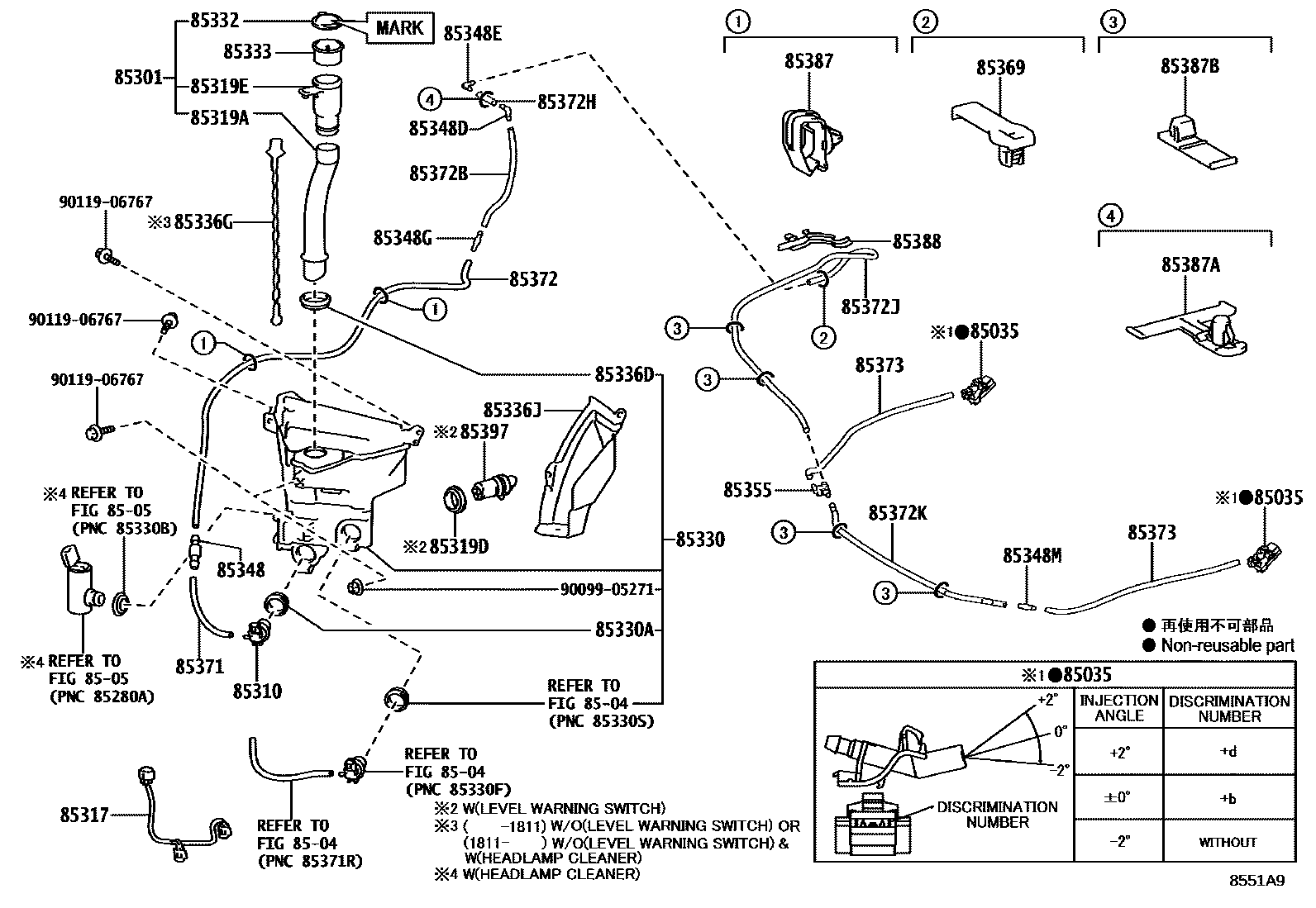

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
MARK=E11:REF.ILLUST
MARK=E13:REF.ILLUST
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85317WIRING ASSY, WASHER
main85317-60400iGDJ15#,GRJ150..EUR; GDJ150,GRJ150,TRJ150..RUS; GDJ150..6F;GDJ155,GRJ150..EUR;GDJ150..LHD..6FC..EUR201708-202312
COLD AREA SPEC; COLD AREA SPEC&HEADLAMP CLEANER-WITH
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
COLD AREA SPEC
HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH; HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH; HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP-LED&HEADLAMP CLEANER-WITH
TX-L PACKAGE&COLD AREA SPEC&HEADLAMP-LED; VX PACKAGE&COLD AREA SPEC&HEADLAMP-LED; VX PACKAGE&COLD AREA SPEC&HEADLAMP-LED & WITH(*AHB); VX-L PACKAGE&COLD AREA SPEC&HEADLAMP-LED; VX-L PACKAGE&COLD AREA SPEC&HEADLAMP-LED & WITH(*AHB)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
MARK=E11:REF.ILLUST
MARK=E13:REF.ILLUST
85333FILTER, WINDSHIELD WASHER JAR
HEADLAMP CLEANER-WITH
85336DPACKING, WINDSHIELD WASHER JAR
85336GGAGE, WATER LEVEL
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
WINDSHIELD GLASS-*EHL(ACOUSTIC) & WITH(DEICER)
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080iGDJ15#,GRJ150,KDJ150,TRJ150; GDJ15#,GRJ150..EUR; GDJ150..6F;GDJ155,GRJ150..EUR;GDJ150..LHD..6FC..EUR; GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150201708-202312
L=1450(*H,L=160); L=1450(*H,L=160),COLD AREA SPEC; L=1450(*H,L=160),COLD AREA SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=160),HEADLAMP CLEANER-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1130); L=1450(*H,L=1130),WINDSHIELD GLASS-*EHL(ACOUSTIC) & WITH(DEICER)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=90)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=40)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=930)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=470)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=300)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
WINDSHIELD GLASS-*EHL(ACOUSTIC) & WITH(DEICER)
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
9009905271
main90099-05271
9011906767
main90119-06767
37 parts on this diagram · 3 diagrams in section
