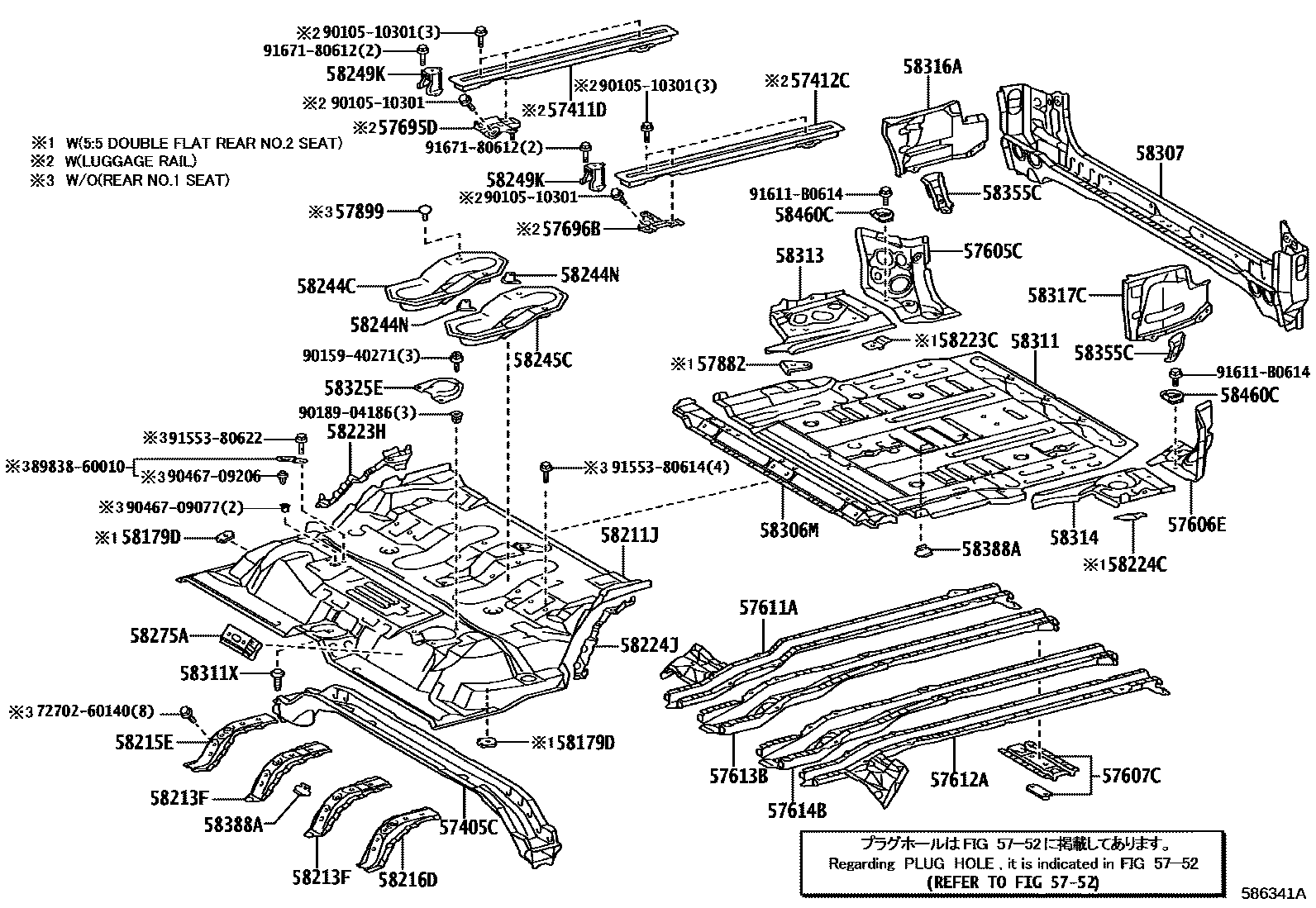

REAR FLOOR PANEL & REAR FLOOR MEMBER
57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57411DRAIL, FLOOR SIDE, RH
LUGGAGE BOX-WITH(UTILITY RAIL)
57412CRAIL, FLOOR SIDE, LH
LUGGAGE BOX-WITH(UTILITY RAIL)
5752HOLE PLUG
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57613BMEMBER, REAR FLOOR SIDE CENTER, RH
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR)
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
main57603-60261iGDJ150,GRJ150; GDJ150,GRJ150,TRJ150..LHD..(6F,6FC); GDJ150..6F; GDJ150..6F;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC); GDJ150..LHD..6F; GDJ150..LHD..6F;GDJ150..6FC..EUR; GDJ150..LHD..6FC..EUR; GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC); TRJ150202203-202312
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
57614BMEMBER, REAR FLOOR SIDE, CENTER LH
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR)
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
main57603-60261iGDJ150,GRJ150; GDJ150,GRJ150,TRJ150..LHD..(6F,6FC); GDJ150..6F; GDJ150..6F;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC); GDJ150..LHD..6F; GDJ150..LHD..6F;GDJ150..6FC..EUR; GDJ150..LHD..6FC..EUR; GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC); TRJ150202203-202312
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
LUGGAGE BOX-WITH(UTILITY RAIL)
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
LUGGAGE BOX-WITH(UTILITY RAIL)
57882REINFORCEMENT, BELT ANCHOR, NO.4
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
57899SEAL, REAR FLOOR, REAR
N1&&W.V.T.A. CORRESPONDENCE-WITHOUT&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&*242&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&BULGARIA SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&CZECH, HUNGARY, SLOVAKIA SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&ESTONIA, LATVIA, LITHUANIA SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&GERMANY SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&GREECE SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&ICELAND SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&IRELAND SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&ISRAEL SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&MALTA SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&MONACO, GIBRALTAR SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REARSEAT-WITHOUT(WITH/ANCHOR); N1&POLAND SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&PORTUGAL SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&RUMANIA SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&SLOVENIA,CROATIA,SERBIA,MONTENEGRO SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEATLESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&SWEDEN, FINLAND, DENMARK SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&UNITED KINGDOM SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&W.V.T.A. CORRESPONDENCE-WITH&NORWAY SPEC&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&W.V.T.A. CORRESPONDENCE-WITH&WVTA COUNTRIES, MACEDONIA SPEC&REAR SEAT LESS PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR); N1&WVTA CEUTA, AZORES, MACEDONIA SPEC&W.V.T.A. CORRESPONDENCE-WITH&REAR SEAT LESSPACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR)
58179DBRACKET, CLAMP FLOOR
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
58211JPAN, CENTER FLOOR
W.V.T.A. CORRESPONDENCE-WITH; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)
main58211-60100iGDJ150,GRJ150,TRJ150..LHD..(6F,6FC); GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD; GDJ150..LHD..6F;GDJ150..6FC..EUR; KDJ150..LHD;GDJ150,GRJ150; TRJ150201708-202312
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
58213FREINFORCEMENT, CENTER FLOOR PANEL
58215EBRACKET, REAR SEAT MOUNTING, RH
58216DBRACKET, REAR SEAT MOUNTING, LH
58223CREINFORCEMENT, SEAT SET, NO.1
LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58224CREINFORCEMENT, SEAT SET, NO.2
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
58224JREINFORCEMENT, FLOOR PANEL SIDE, LH
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
58244NSTOPPER, REAR SEAT CUSHION BRACKET
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITH&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN& 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; W.V.T.A. CORRESPONDENCE-WITHOUT&LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
58249KBRACKET, CENTER FLOOR BOARD SUPPORT
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
LUGGAGE BOX-WITH(UTILITY RAIL)
main58311-60B40iGDJ150,GRJ150,TRJ150..LHD..(6F,6FC); GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD; GDJ150..LHD..6F;GDJ150..6FC..EUR; KDJ150..LHD;GDJ150,GRJ150; TRJ150201708-202312
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
W.V.T.A. CORRESPONDENCE-WITH
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
58314PANEL, REAR FLOOR SIDE, LH
main58314-60140iGDJ150,GRJ150,TRJ150..LHD..(6F,6FC); GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD; GDJ150..LHD..6F;GDJ150..6FC..EUR; KDJ150..LHD;GDJ150,GRJ150; TRJ150201708-202312
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER; LUGGAGE BOX-WITH(UTILITY RAIL)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER; REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58388ABRACKET,REAR FLOOR PLATE
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
7270260140BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-60140
8983860010
main89838-60010
9010510301
main90105-10301
9015940271
main90159-40271
9018904186
main90189-04186
9046709077
main90467-09077
9046709206
main90467-09206
9155380614
main91553-80614
9155380622
main91553-80622
91611B0614
main91611-B0614
9167180612
main91671-80612
52 parts on this diagram · 2 diagrams in section
