VENTURI

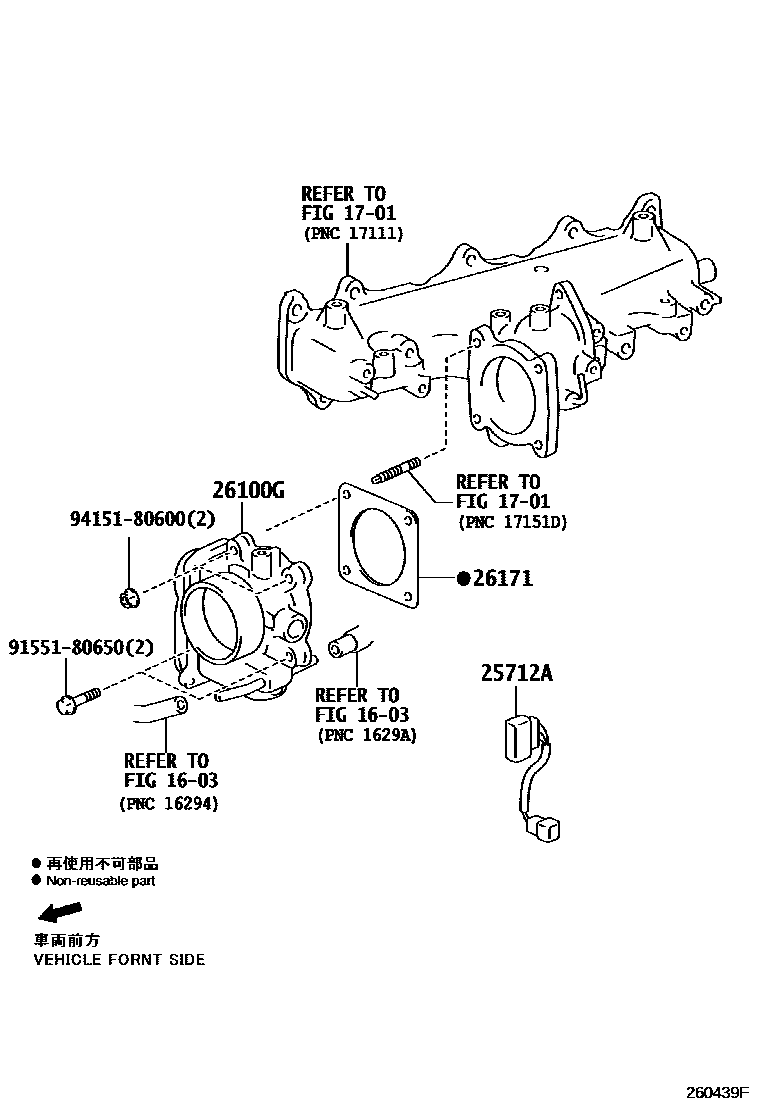

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25712AWIRE, EMISSION CONTROL VALVE

main25712-11010i201708-202312

26100GBODY ASSY, DIESEL THROTTLE

main26100-11010i201708-202008

COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main26100-11030i202008-202312

main26100-11040i202106-202312

EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

main26100-30070i201708-202007

main26100-11020i201708-202008

EXHAUST EMISSION CONTROL-EURO 5

26171GASKET, VENTURI

main26171-11010i201708-201806

main26171-11020×2i202008-202312

main26171-30020i201708-202007

9155180650

main91551-80650

9415180600

main94151-80600

7 parts on this diagram · 3 diagrams in section
