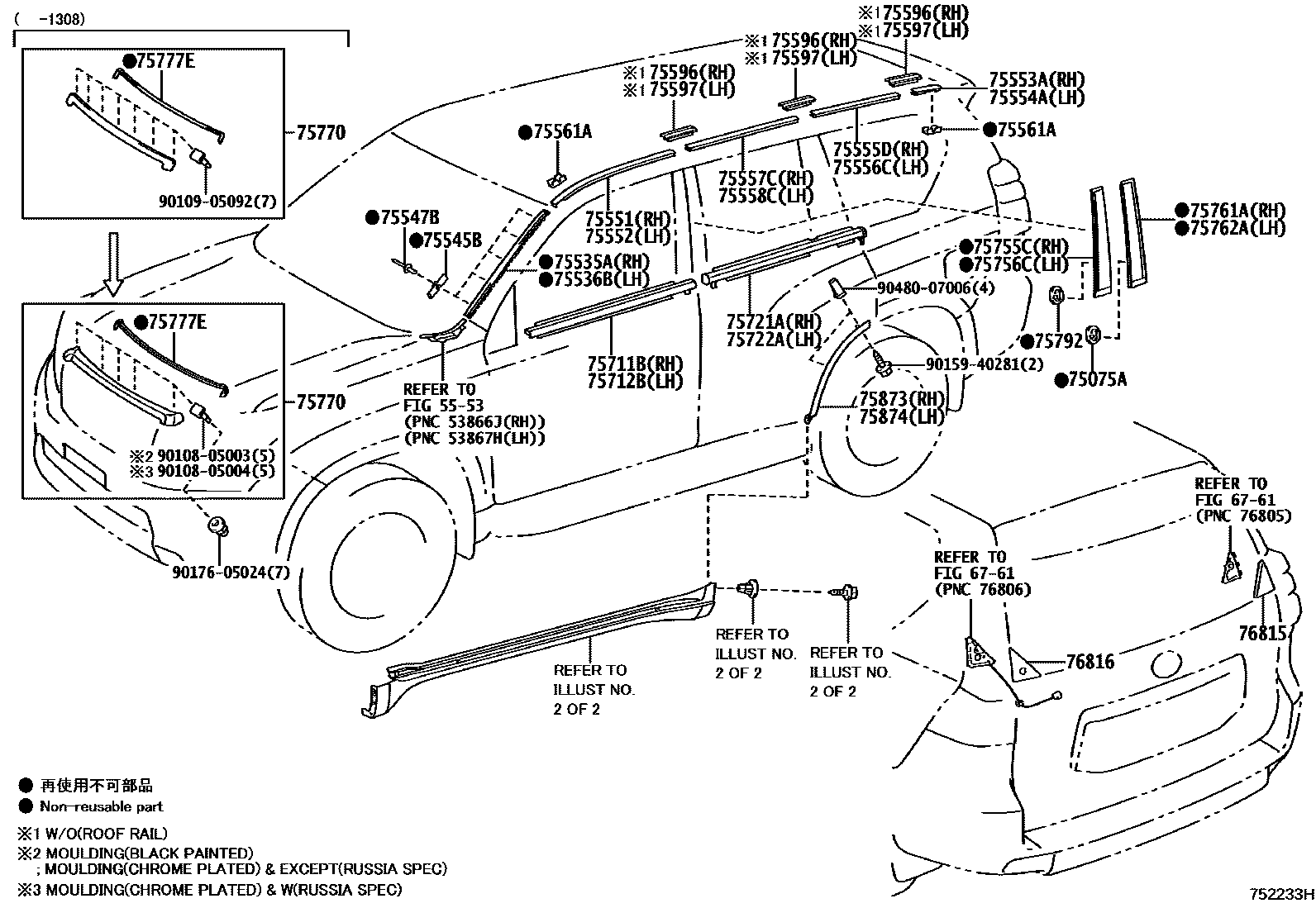

MOULDING
5553COWL PANEL & WINDSHIELD GLASS
6761BACK DOOR PANEL & GLASS
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75535AMOULDING, WINDSHIELD, OUTSIDE LOWER
75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75770MOULDING ASSY, HOOD, FRONT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main75770-60050iGDJ150..6FC;KDJ150..LHD..5FC; GDJ150;KDJ150..LHD; GDJ155,KDJ155; GRJ150;KDJ150..RHD201506-201508
PLATED; PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED; PLATED,VX PACKAGE; PLATED,VX PACKAGE&CHROME & COLORED; PLATED,VX-L PACKAGE
main75770-60051iGDJ150..6FC;KDJ150..LHD..5FC; GDJ150;KDJ150..LHD; GDJ155,KDJ155; GRJ150;KDJ150..RHD201509-201510
PLATED; PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED; PLATED,VX PACKAGE; PLATED,VX PACKAGE&CHROME & COLORED; PLATED,VX-L PACKAGE
main75770-60052supersedes 75770-60042iGDJ150..6FC;KDJ150..LHD..5FC; GDJ150;KDJ150..LHD; GDJ155; GRJ150;KDJ150..RHD201511
PLATED; PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED; PLATED,VX PACKAGE; PLATED,VX PACKAGE&CHROME & COLORED; PLATED,VX-L PACKAGE
PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED; PLATED,VX PACKAGE; PLATED,VX PACKAGE&CHROME & COLORED; PLATED,VX-L PACKAGE
PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE; PLATED,RUSSIA SPEC&VX-L PACKAGE
PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE; PLATED,RUSSIA SPEC&VX-L PACKAGE
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE; PLATED,RUSSIA SPEC&VX-L PACKAGE
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE; PLATED,RUSSIA SPEC&VX-L PACKAGE
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE; PLATED,RUSSIA SPEC&VX-L PACKAGE
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE; PLATED,RUSSIA SPEC&VX-L PACKAGE
75777EPAD, HOOD FRONT MOULDING
RUSSIA SPEC&TX-L PACKAGE; RUSSIA SPEC&VX PACKAGE; RUSSIA SPEC&VX-L PACKAGE
75792CLIP, DOOR WINDOW FRAME MOULDING
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
76815MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH
SPARE TIRE-WITHOUT
76816MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH
SPARE TIRE-WITHOUT
9010805003
main90108-05003
9010805004
main90108-05004
9010905092
main90109-05092
9015940281
main90159-40281
9017605024
main90176-05024
9048007006
main90480-07006
39 parts on this diagram · 4 diagrams in section
