RADIATOR GRILLE

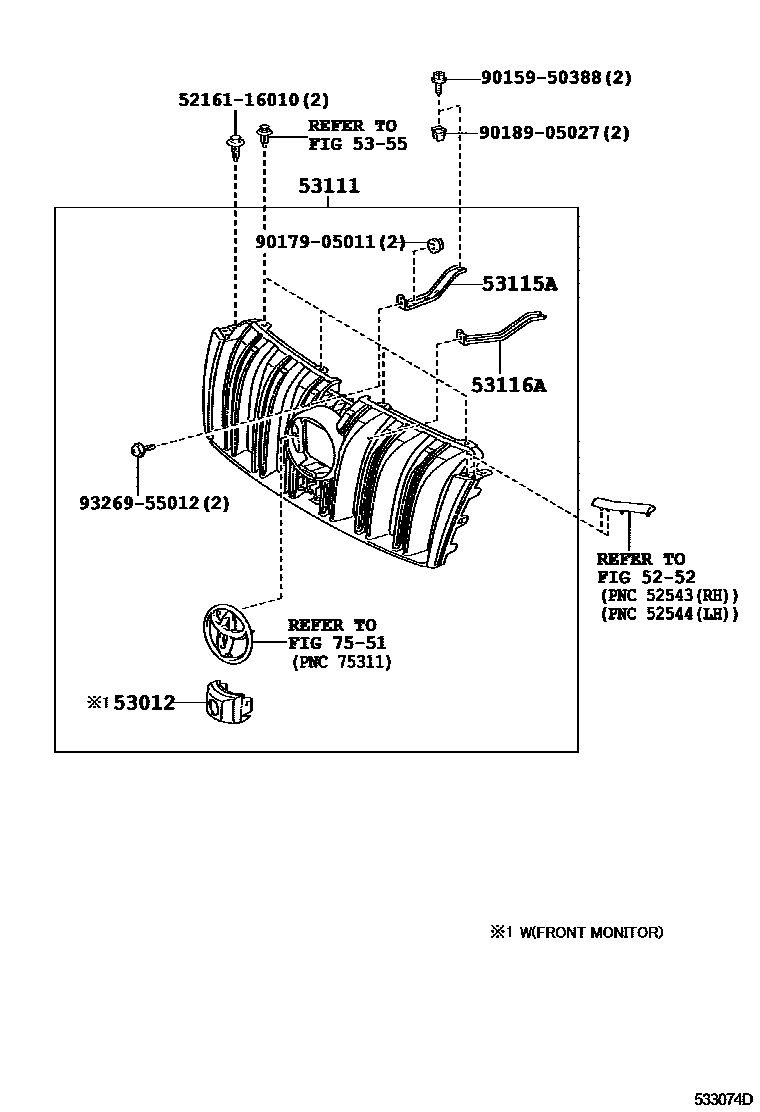

Parts diagram
5252FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-52
53012GARNISH SUB-ASSY, RADIATOR GRILLE, CENTER
main53142-60020i200908-201308
RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(AROUND MONITOR); VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX PACKAGE&CHROME & COLORED&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); VX PACKAGE&CHROME & COLORED&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH(AROUND MONITOR); VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUNDMONITOR); VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH(AROUND MONITOR)
53111GRILLE, RADIATOR
main53101-60660i200908-201207
NO PAINT REQ.
main53101-60661i201208-201308
NO PAINT REQ.
main53101-60B80i201308-201407
NO PAINT REQ.
main53101-60B81i201408-201506
NO PAINT REQ.
main53101-60C21i201506
PLATED; PLATED,VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)
main53101-60670i200908-201207
PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED; PLATED,VX PACKAGE&BACK MONITOR-WITH; PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH; PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60671i201208-201308
PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED; PLATED,VX PACKAGE&BACK MONITOR-WITH; PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH; PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60680supersedes 53101-60660i200908-201110
PLATED,VX-L PACKAGE&BACK MONITOR-WITH; PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60681i201208-201308
PLATED,VX-L PACKAGE&BACK MONITOR-WITH; PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60690i200908-201207
PLATED,VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60691i201208-201308
PLATED,VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60700supersedes 53101-60660i200908-201110
PLATED,VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60701i201208-201308
PLATED,VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60730i200908-201207
PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH; PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60731i201208-201308
PLATED,RUSSIA SPEC&TX-L PACKAGE; PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH; PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60740i200908-201207
PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60741i201208-201308
PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60750i200908-201207
PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH; PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60751i201208-201308
PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH; PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE)
main53101-60760i200908-201207
PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60761i201208-201308
PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60770i200908-201207
NO PAINT REQ.,RUSSIA SPEC
main53101-60771i201208-201308
NO PAINT REQ.,RUSSIA SPEC
main53101-60909supersedes 53101-60660i200908-201110
PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60910supersedes 53101-60660i200908-201110
PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main53101-60925i201208-201308
PLATED,VX PACKAGE&CHROME & COLORED&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH(AROUNDMONITOR)
main53101-60926i201208-201308
PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(AROUND MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH(AROUND MONITOR)
main53101-60927i201308-201408
PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH &W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH& W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)
main53101-60934i201408-201506
PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH &W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&BACK MONITOR-WITH& W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)
main53101-60B90i201308-201407
PLATED; PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED
main53101-60B91i201506
PLATED; PLATED,TX-L PACKAGE; PLATED,TX-L PACKAGE&CHROME & COLORED
main53101-60C00i201308-201407
PLATED,VX PACKAGE; PLATED,VX PACKAGE&CHROME & COLORED
main53101-60C01i201506
PLATED,VX PACKAGE; PLATED,VX PACKAGE&CHROME & COLORED
main53101-60C20i201308-201407
PLATED,VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX PACKAGE&CHROME & COLORED&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR); PLATED,VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)
main53101-60C40i201308-201409
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE
main53101-60C43i201409-201506
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE
main53101-60C44supersedes 53101-60B91i201508
PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&TX-L PACKAGE
main53101-60C50i201308-201409
PLATED,RUSSIA SPEC&VX PACKAGE
main53101-60C53i201506-201507
PLATED,RUSSIA SPEC&VX PACKAGE
main53101-60C54i201508
PLATED,RUSSIA SPEC&VX PACKAGE
main53101-60C60i201308-201409
PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)
main53101-60C63i201506-201507
PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)
main53101-60C64i201508
PLATED,RUSSIA SPEC&VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR); PLATED,RUSSIA SPEC&VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)
main53101-60C70i201308-201407
NO PAINT REQ.,RUSSIA SPEC
main53101-60C71i201506
NO PAINT REQ.,RUSSIA SPEC
53115ABRACKET, RADIATOR GRILLE, RH
main53115-60020i200908-201308
main53115-60050i201308-201506
53116ABRACKET, RADIATOR GRILLE, LH
main53116-60020i200908-201110
main53116-60030i201308-201506
5355FRONT FENDER APRON & DASH PANEL
→ Go to FIG 53-55
7551EMBLEM & NAME PLATE
→ Go to FIG 75-51
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
9015950388
main90159-50388
9017905011
main90179-05011
9018905027
main90189-05027
9326955012
main93269-55012
