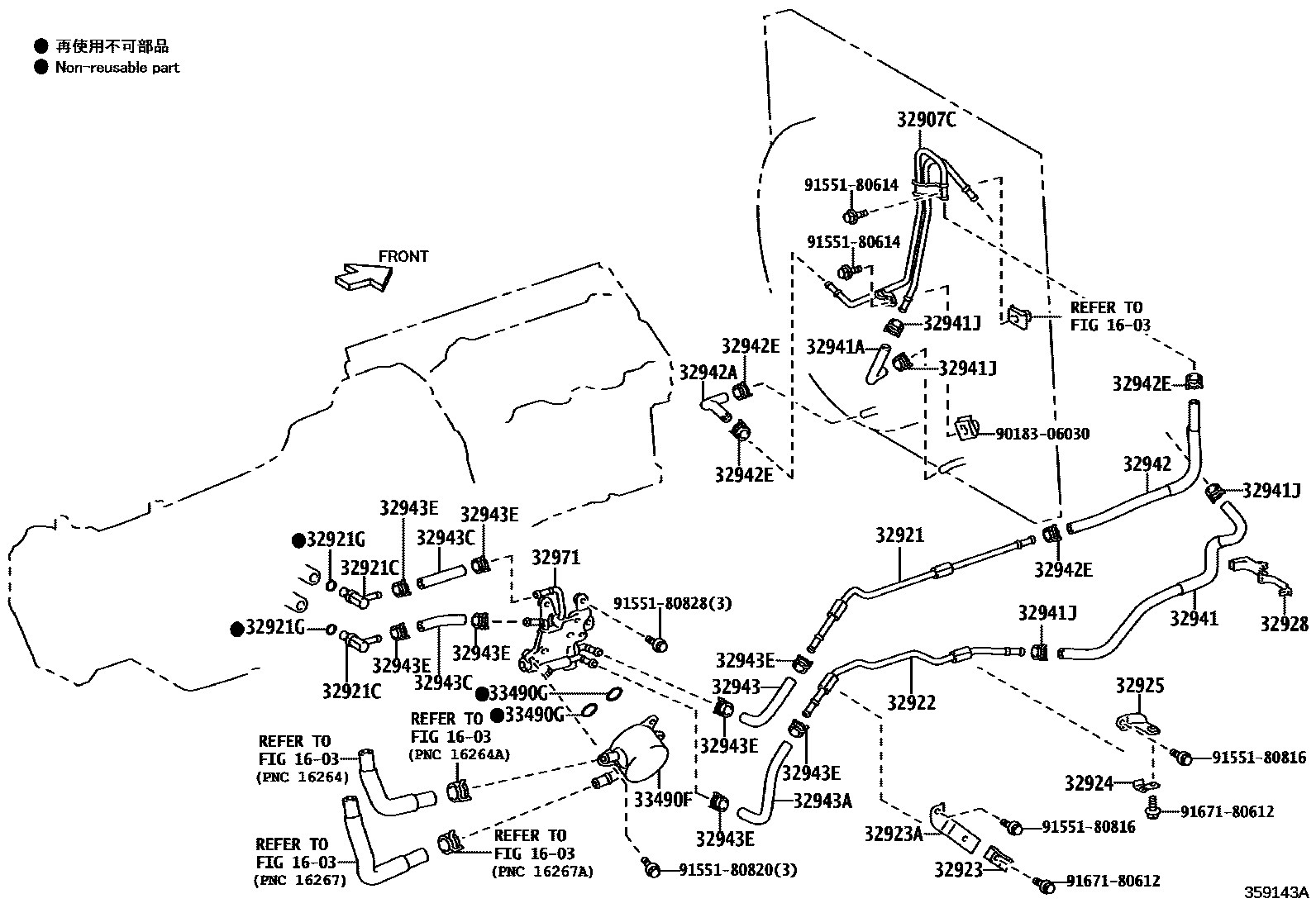

OIL COOLER & TUBE (ATM)

0001 1A750F 0002 1AC60F 0003 1AC60F 0004 1A750F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60280iGRJ150201308-201506

main32907-60310iGRJ150201506

main32907-60350iGDJ15#..6FC201506

32921TUBE, OIL COOLER INLET, NO.1

main32921-60230iGRJ150201308-201506

main32921-60390iKDJ15#..5FC200908-201009

main32921-60410iKDJ15#..5FC201308-201506

main32921-60470iGDJ15#..6FC201506

main32921-60480iGRJ150201506

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iGRJ150..RHD200908-201110

main90407-16009×2iKDJ15#..5FC201308-201506

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iKDJ155..5FC201506-201607

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60250iGRJ150..RHD200908-201110

main32922-60420iKDJ15#..5FC200908-201009

main32922-60440iKDJ150..5FC201506

main32922-60500iGDJ15#..6FC201506

main32922-60510iGRJ150201506

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32928-60170iGRJ150..RHD200908-201110

main32928-60180iGRJ150201506

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-60140iGRJ150..RHD200908-201110

main32923-60200iGRJ150201506

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-60160iKDJ155..5FC201506-201607

main32929-24060iGRJ150..RHD200908-201110

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-60200iGRJ150..RHD200908-201110

main32925-60240iGRJ150201506

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030iGRJ150..LHD;KDJ15#..5FC200908-201308

32941HOSE, OIL COOLER INLET, NO.1

main32941-60360iKDJ15#..5FC200908-201308

main32941-60370iGRJ150201308-201506

main32941-60430iGDJ15#..6FC201506

main32942-60560iGRJ150201506

32941AHOSE, OIL COOLER INLET, NO.2

main32943-60700iGRJ150201506

main90445-17074iGRJ150..RHD200908-201110

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×4iGRJ150; KDJ15#..5FC201308-201506

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-60400iGRJ150201506

main32942-60520iKDJ155..5FC201506-201607

main32942-60530iGRJ150..RHD200908-201110

main32942-60590iGDJ15#..6FC201506

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-60600iGDJ15#..6FC201506

main32943-60600iGRJ150..RHD200908-201110

main32943-60690iGRJ150201506

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×4iGRJ150..LHD; KDJ15#..5FC200908-201308

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-35030iGRJ150..RHD200908-201110

main32943-60650iGRJ150201506

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60590iGRJ150..RHD200908-201110

main32943-60670iGRJ150201506

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-60570×2iGRJ150..RHD200908-201110

main32943-60660iGRJ150201506

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×8iGRJ150..RHD200908-201110

32971THERMOSTAT, TRANSMISSION OIL

main32971-60010iGRJ150..RHD200908-201110

main32971-60020iGRJ150201506

33490FCOOLER ASSY, TRANSMISSION OIL

main33493-34030iGRJ150..RHD200908-201110

main33493-60020iGRJ150201506

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iGRJ150..RHD200908-201110

9018306030

main90183-06030

9155180614

main91551-80614

9155180816

main91551-80816

9155180820

main91551-80820

9155180828

main91551-80828

9167180612

main91671-80612

30 parts on this diagram · 4 diagrams in section
