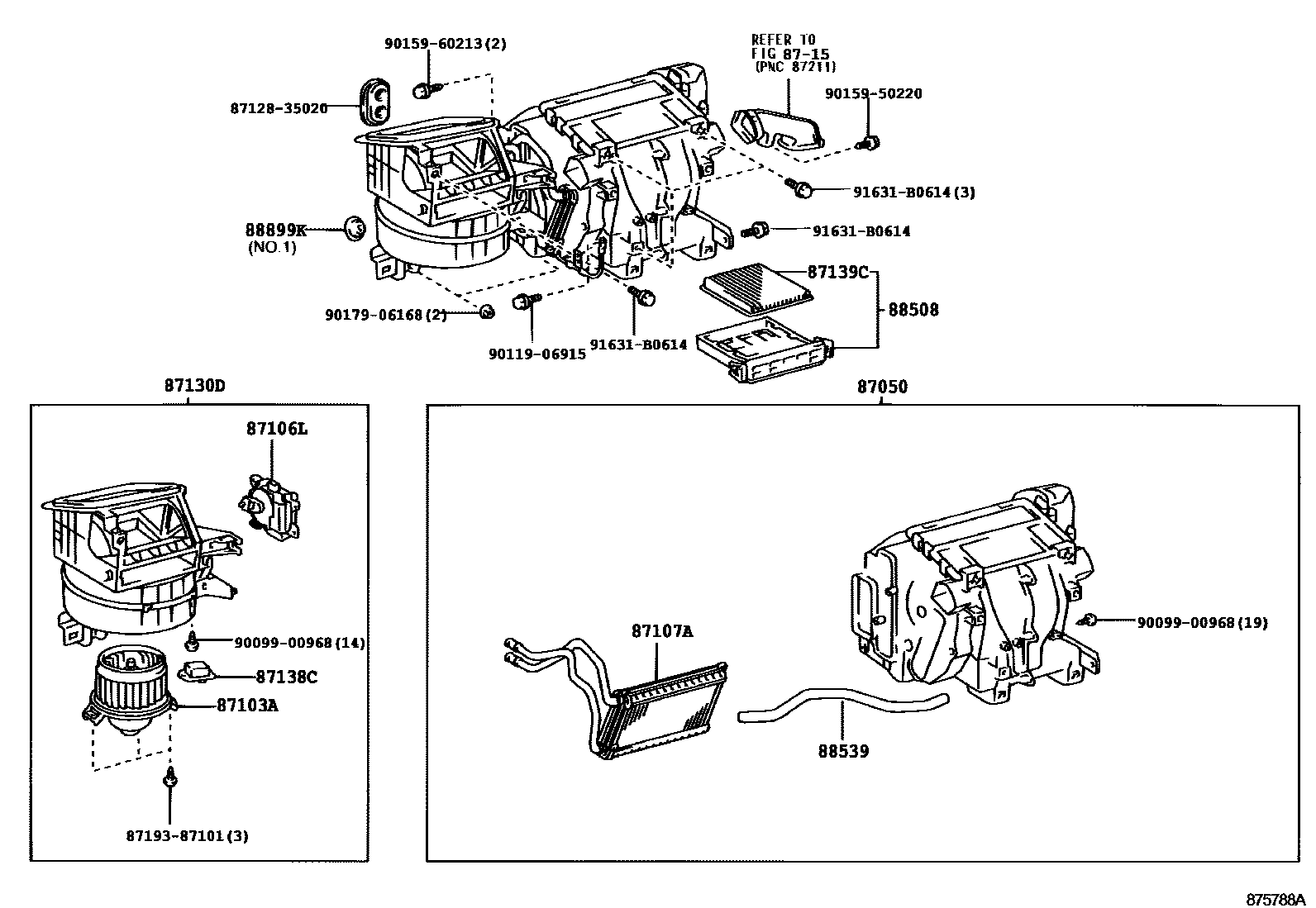

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-SINGLE MANUAL
COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
COLD SPEC
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-SINGLE MANUAL
COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
COLD SPEC
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
AIR CONDITIONER-SINGLE MANUAL
AIR CONDITIONER-SINGLE MANUAL
COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
COLD SPEC
COLD SPEC
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
87106LSERVO SUB-ASSY, DAMPER
main87106-35150iGRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F); GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F); KDJ12#..MTM; KDJ120..MTM200209-200908
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
87107AUNIT SUB-ASSY, HEATER RADIATOR
COLD SPEC; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
COLD SPEC; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-SINGLE MANUAL
87130DBLOWER ASSY
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
main87130-35151iGRJ12#,KDJ12#..LHD; GRJ120,KDJ120..LHD; KDJ12#..LHD..6F; KDJ120..LHD..6F200411-200707
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
main87130-35161iGRJ120,KDJ12#..RHD; GRJ120,KDJ120..RHD; KDJ12#..RHD..6F; KDJ120..RHD..6F200411-200707
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
main87130-60540iGRJ12#,KDJ12#..LHD; GRJ120,KDJ120..LHD; KDJ12#..LHD..6F; KDJ120..LHD..6F200707-200807
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
main87130-60541iGRJ12#,KDJ12#..LHD; GRJ120,KDJ120..LHD; KDJ12#..LHD..6F; KDJ120..LHD..6F200808-200908
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
main87130-60580iGRJ120,KDJ12#..RHD; GRJ120,KDJ120..RHD; KDJ12#..RHD..6F; KDJ120..RHD..6F200707-200807
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
main87130-60581supersedes 87130-60591iGRJ120,KDJ12#..RHD; GRJ120,KDJ120..RHD; KDJ12#..RHD..6F; KDJ120..RHD..6F200808-200908
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; COLD SPEC&AIR CONDITIONER-DUAL AUTO; COLD SPEC&AIR CONDITIONER-SINGLE AUTO
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
88508FILTER SUB-ASSY, CLEAN AIR
88539HOSE, COOLER UNIT DRAIN, NO.1
FRONT
FRONT
AIR CONDITIONER-DUAL AUTO,REAR
88899KPLATE, COVER
main88899-60250iGRJ12#,KDJ12#; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F); GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F); KDJ12#..MTM; KDJ120..MTM200209-200508
AIR CONDITIONER-DUAL AUTO,NO.2; AIR CONDITIONER-SINGLE AUTO,NO.2; AIR CONDITIONER-SINGLE MANUAL,NO.2; COLD SPEC&AIR CONDITIONER-DUAL AUTO,NO.2; COLD SPEC&AIR CONDITIONER-SINGLE AUTO,NO.2; COLD SPEC&AIR CONDITIONER-SINGLE MANUAL,NO.2
main88899-60260iGRJ12#,KDJ12#; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F); GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F); KDJ12#..MTM; KDJ120..MTM200209-200508
AIR CONDITIONER-DUAL AUTO,NO.3; AIR CONDITIONER-SINGLE AUTO,NO.3; AIR CONDITIONER-SINGLE MANUAL,NO.3; COLD SPEC&AIR CONDITIONER-DUAL AUTO,NO.3; COLD SPEC&AIR CONDITIONER-SINGLE AUTO,NO.3; COLD SPEC&AIR CONDITIONER-SINGLE MANUAL,NO.3
8712835020GROMMET, HEATER
main87128-35020
8719387101
main87193-87101
9009900968
main90099-00968
9011906915
main90119-06915
9015950220
main90159-50220
9015960213
main90159-60213
9017906168
main90179-06168
91631B0614
main91631-B0614
19 parts on this diagram · 8 diagrams in section
