REAR FOG LAMP

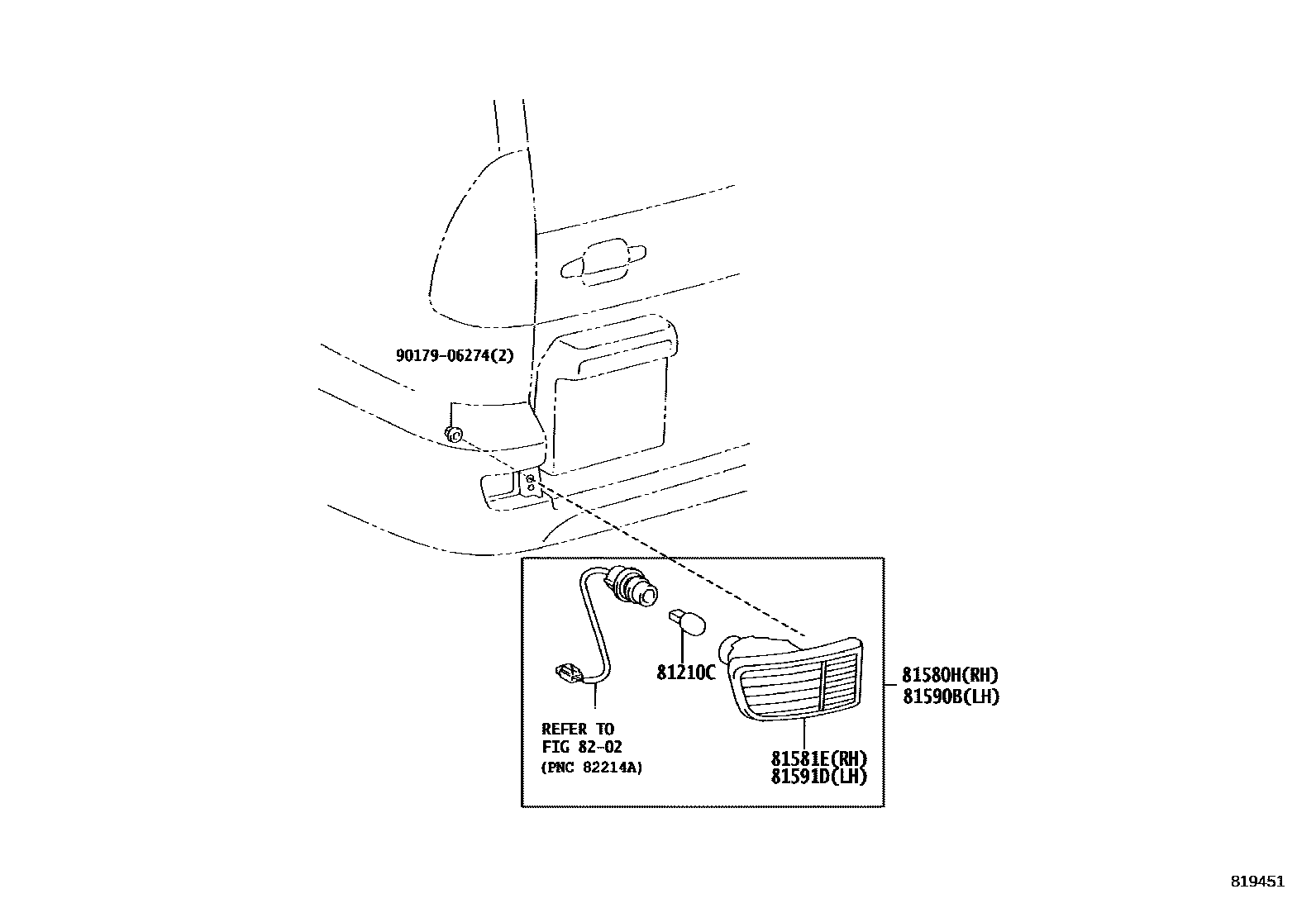

Parts diagram

81210CBULB, REAR FOG LAMP

main90981-13043×2i200209-200908

12V 21W,WITH(REAR FOG LAMP)

81580HLAMP ASSY, REAR FOG, RH

main81580-60100i200209-200309

WITH(REAR FOG LAMP)

main81580-60101i200309-200607

WITH(REAR FOG LAMP)

main81580-60102i200608-200908

WITH(REAR FOG LAMP)

81581ELENS AND BODY, REAR FOG LAMP, RH

main81581-60100i200209-200309

WITH(REAR FOG LAMP)

main81581-60101i200309-200608

WITH(REAR FOG LAMP)

main81581-60102i200608-200908

WITH(REAR FOG LAMP)

81590BLAMP ASSY, REAR FOG, LH

main81590-60130i200209-200309

WITH(REAR FOG LAMP)

main81590-60131i200309-200607

WITH(REAR FOG LAMP)

main81590-60132i200608-200908

WITH(REAR FOG LAMP)

81591DLENS AND BODY, REAR FOG LAMP, LH

main81591-60130i200209-200309

WITH(REAR FOG LAMP)

main81591-60131i200309-200608

WITH(REAR FOG LAMP)

main81591-60132i200608-200908

WITH(REAR FOG LAMP)

8202WIRING & CLAMP

→ Go to FIG 82-02

6 parts on this diagram · 1 diagram in section
