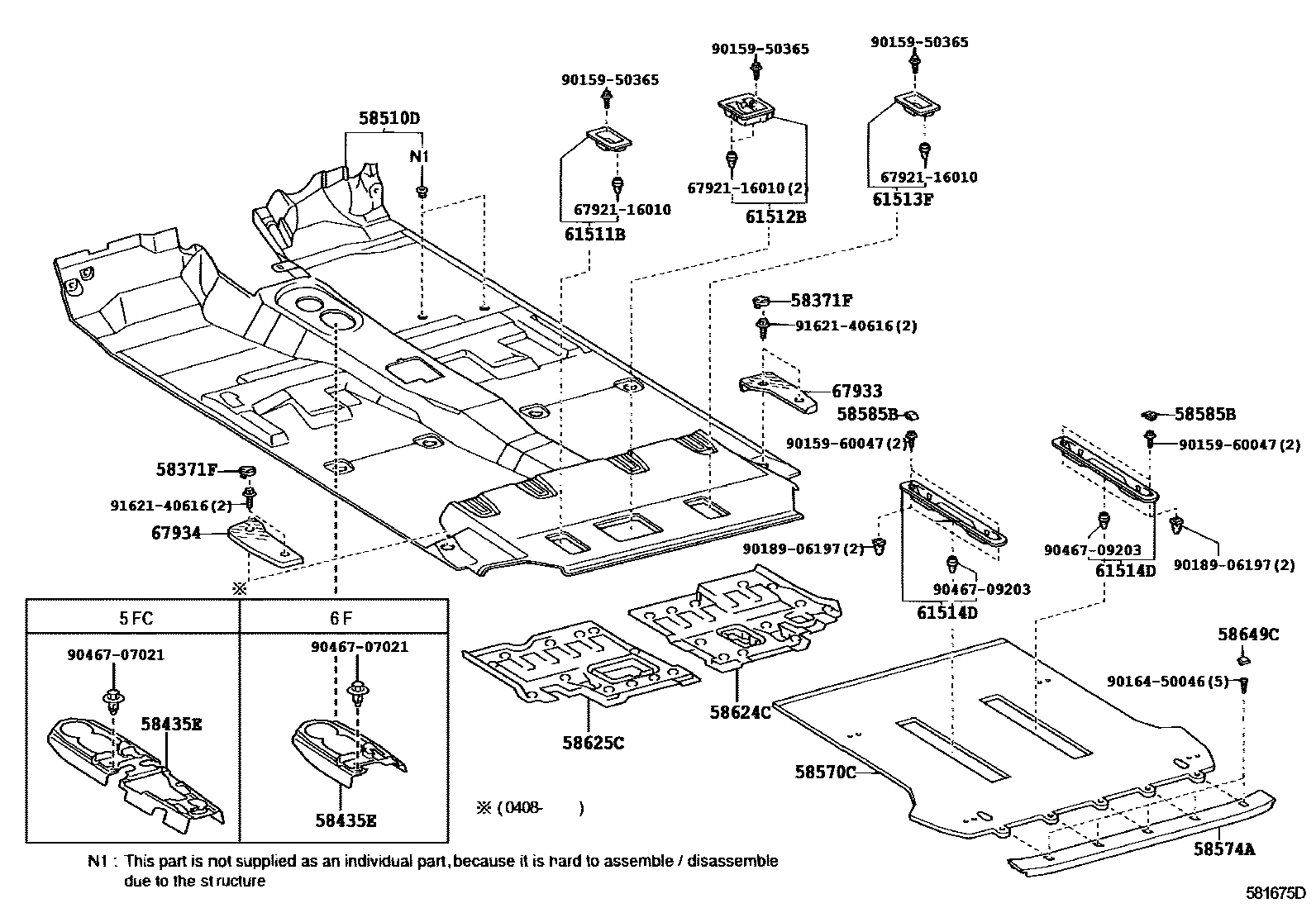

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58371FCOVER, REAR FLOOR STEP, NO.1

main58371-60150-A0×4iGRJ120,KDJ120200209-200908

IVORY,TRIM0#

main58371-60150-B0×4iGRJ120,KDJ120200209-200908

MD.GRAY,TRIM1#

58435ESILENCER, FRONT FLOOR, CENTER

main58435-60010iGRJ12#,KDJ12#..5FC200408

main58435-60020iKDJ12#..6F200408

58510DCARPET ASSY, FLOOR, FRONT

main58510-6C260-A0iGRJ120,KDJ120..RHD200209-200311

IVORY,TRIM0#

main58510-6C260-B0iGRJ120,KDJ120..RHD200209-200311

MD GRAY,TRIM1#

main58510-6C261-A0iGRJ120,KDJ120..RHD200311-200908

IVORY,TRIM0#

main58510-6C261-B0iGRJ120,KDJ120..RHD200311-200601

MD GRAY,TRIM1#

main58510-6C261-B1iGRJ120,KDJ120..RHD200601-200908

MD GRAY,TRIM1#

main58510-6C370-A0iGRJ120,KDJ120..LHD200209-200908

IVORY,TRIM0#

main58510-6C370-B0iGRJ120,KDJ120..LHD200209-200601

MD GRAY,TRIM1#

main58510-6C370-B1iGRJ120,KDJ120..LHD200601-200908

MD GRAY,TRIM10

main58510-6C450-A0iKDJ125..RHD200209-200311

IVORY,TRIM0#

main58510-6C450-B0iKDJ125..RHD200209-200311

MD GRAY,TRIM1#

main58510-6C451-A0iKDJ125..RHD200311-200908

IVORY,TRIM0#

main58510-6C451-B0iKDJ125..RHD200311-200601

MD GRAY,TRIM1#

main58510-6C451-B1iKDJ125..RHD200601-200908

MD GRAY,TRIM10

main58510-6C510-A0iGRJ125,KDJ125..LHD200209-200908

IVORY,TRIM0#

main58510-6C510-B0iGRJ125,KDJ125..LHD200209-200601

MD GRAY,TRIM1#

main58510-6C510-B1iGRJ125,KDJ125..LHD200601-200908

MD GRAY,TRIM10

58570CCARPET ASSY, REAR FLOOR

main58570-60840-B1iGRJ120,KDJ120200601-200908

MD GRAY,TRIM10

main58570-6A020-A0iGRJ125,KDJ125200209-200908

IVORY,TRIM0#

main58570-6A020-B0iGRJ125,KDJ125200209-200601

MD GRAY,TRIM1#

main58570-6A020-B1iGRJ125,KDJ125200601-200908

MD GRAY,TRIM10

main58570-60850-A0supersedes 58570-60840-A0iGRJ120,KDJ120200209-200908

REAR SEAT-REMOVABLE,IVORY,TRIM0#

main58570-60850-B0supersedes 58570-60840-B0iGRJ120,KDJ120200209-200601

REAR SEAT-REMOVABLE,MD GRAY,TRIM1#

main58570-60850-B1iGRJ120,KDJ120200601-200908

REAR SEAT-REMOVABLE,MD GRAY,TRIM1#

main58570-60870-A0supersedes 58570-60840-A0iGRJ120,KDJ120200209-200908

AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0#

main58570-60870-B0supersedes 58570-60840-B0iGRJ120,KDJ120200209-200601

AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,MD GRAY,TRIM1#

main58570-60870-B1iGRJ120,KDJ120200601-200908

AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,MD GRAY,TRIM1#

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60080-A0iGRJ12#,KDJ12#200209-200612

IVORY,TRIM0#

main58574-60080-B0iGRJ12#,KDJ12#200209-200612

MD.GRAY,TRIM1#

main58574-60090-A0iGRJ12#,KDJ12#200612-200908

IVORY,TRIM0#

main58574-60090-B0iGRJ12#,KDJ12#200612-200908

MD.GRAY,TRIM1#

58585BCOVER, REAR FLOOR SEAT LOCK

main58585-60010-A0×4iGRJ120,KDJ120200209-200908

REAR SEAT-REMOVABLE,IVORY,TRIM0#

main58585-60010-B0×4iGRJ120,KDJ120200209-200908

REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-60120iGRJ120,KDJ120..RHD200209

main58624-60140iGRJ120,KDJ120..LHD200209

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-60040iGRJ120,KDJ120..RHD200209

main58625-60050iGRJ120,KDJ120..LHD200209

58649CCOVER, MAT SET PLATE

main58649-60010-A0×5iGRJ12#,KDJ12#200209-200908

IVORY,TRIM0#

main58649-60010-B0×5iGRJ12#,KDJ12#200209-200908

MD.GRAY,TRIM1#

61511BRAIL, SEAT ANCHOR, NO.1

main61511-60030-A0iGRJ120,KDJ120200209-200908

IVORY,TRIM0#

main61511-60030-B0iGRJ120,KDJ120200209-200908

MD.GRAY,TRIM1#

61512BRAIL, SEAT ANCHOR, NO.2 RH

main61512-60030-A0iGRJ120,KDJ120200209-200908

IVORY,TRIM0#

main61512-60030-B0iGRJ120,KDJ120200209-200908

MD.GRAY,TRIM1#

61513FRAIL, SEAT ANCHOR, NO.3

main61513-60030-A0iGRJ120,KDJ120200209-200908

IVORY,TRIM0#

main61513-60030-B0iGRJ120,KDJ120200209-200908

MD.GRAY,TRIM1#

61514DRAIL, SEAT ANCHOR, NO.4

main61514-60030-A0×2iGRJ120,KDJ120200209-200908

REAR SEAT-REMOVABLE,IVORY,TRIM0#

main61514-60030-B0×2iGRJ120,KDJ120200209-200908

REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#

67933PLATE, QUARTER SCUFF, INNER RH

main67933-60010-A0iGRJ120,KDJ120200209-200908

IVORY,TRIM0#

main67933-60010-B0iGRJ120,KDJ120200209-200908

MD.GRAY,TRIM1#

67934PLATE, QUARTER SCUFF, INSIDE LH

main67934-60010-A0iGRJ120,KDJ120200209-200908

IVORY,TRIM0#

main67934-60010-B0iGRJ120,KDJ120200209-200908

MD.GRAY,TRIM1#

6792116010RETAINER, FRONT DOOR SCUFF PLATE

main67921-16010

9015950365

main90159-50365

9015960047

main90159-60047

9016450046

main90164-50046

9018906197

main90189-06197

9046707021

main90467-07021

9046709203

main90467-09203

9162140616

main91621-40616

23 parts on this diagram · 2 diagrams in section
