HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT BLOWER(MANUAL A/C) 0002 1FRONT BLOWER(AUTO A/C) 0003 1FRONT BLOWER(SINGLE AUTO A/C)0004 1FRONT RADIATOR(MANUAL A/C) 0005 1FRONT RADIATOR(MANUAL A/C) 0006 1FRONT RADIATOR(AUTO A/C) 0007 1FRONT RADIATOR(SINGLE AUTO A/0008 1REAR 0009 1VISCOUS HEATER

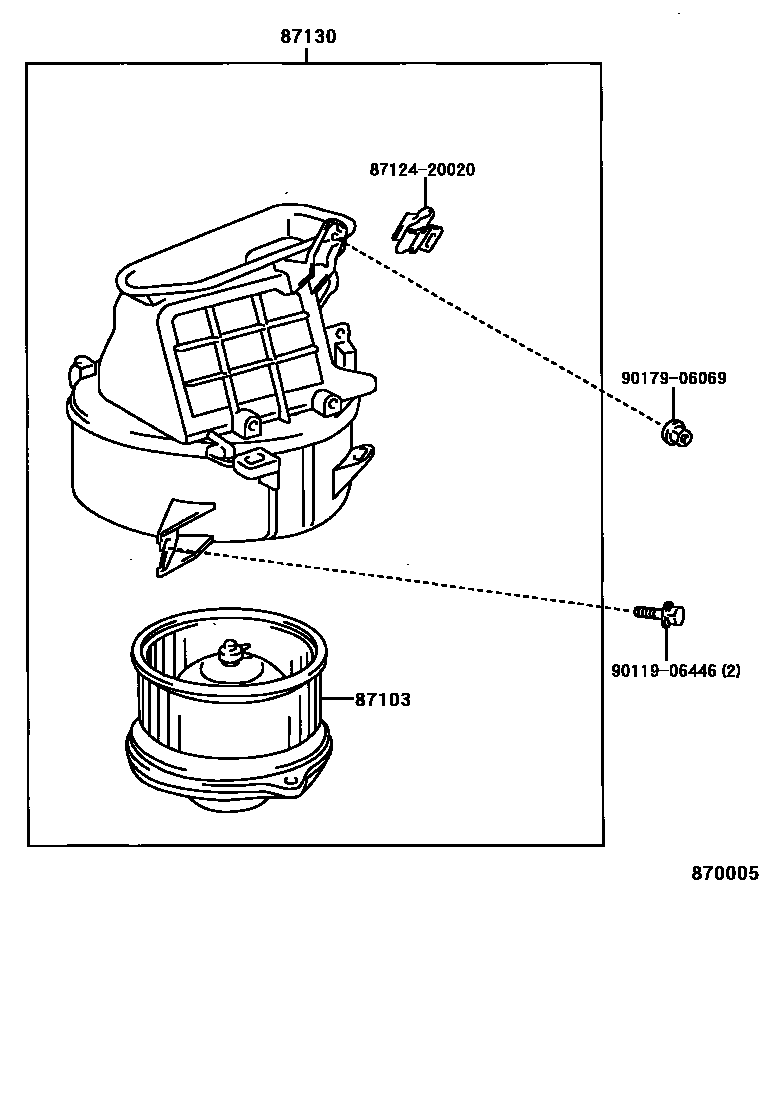

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-35010iKZJ9#,VZJ95..RHD199604-199807

main87103-35022iKDJ9#..LHD200008-200109

50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER)

main87103-35030iKZJ95..RHD200008-200209

main87103-60170iKZJ9#,VZJ9#..LHD199604-199702

main87103-60171iKZJ9#,VZJ9#..LHD199702-199807

main87103-60172iKZJ9#,VZJ9#..LHD199808-199906

87130BLOWER ASSY, HEATER, FRONT

main87130-35050iKDJ9#,KZJ9#,VZJ95..RHD199906-200209

main87130-35130iVZJ95..RHD199906-200008

AUTOMATIC AIR CONDITIONER

main87130-60310iKZJ9#,VZJ9#..LHD199604-199906

main87130-60410iKDJ9#..LHD200008-200109

50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER)

main87130-60460iVZJ95..RHD200008-200209

W(DUAL AUTO AIR CONDITIONER) OR W(SINGLE AUTO AIR CONDITIONER)

8712420020CLAMP, HEATER

main87124-20020

9011906446

main90119-06446

9017906069

main90179-06069

5 parts on this diagram · 9 diagrams in section
