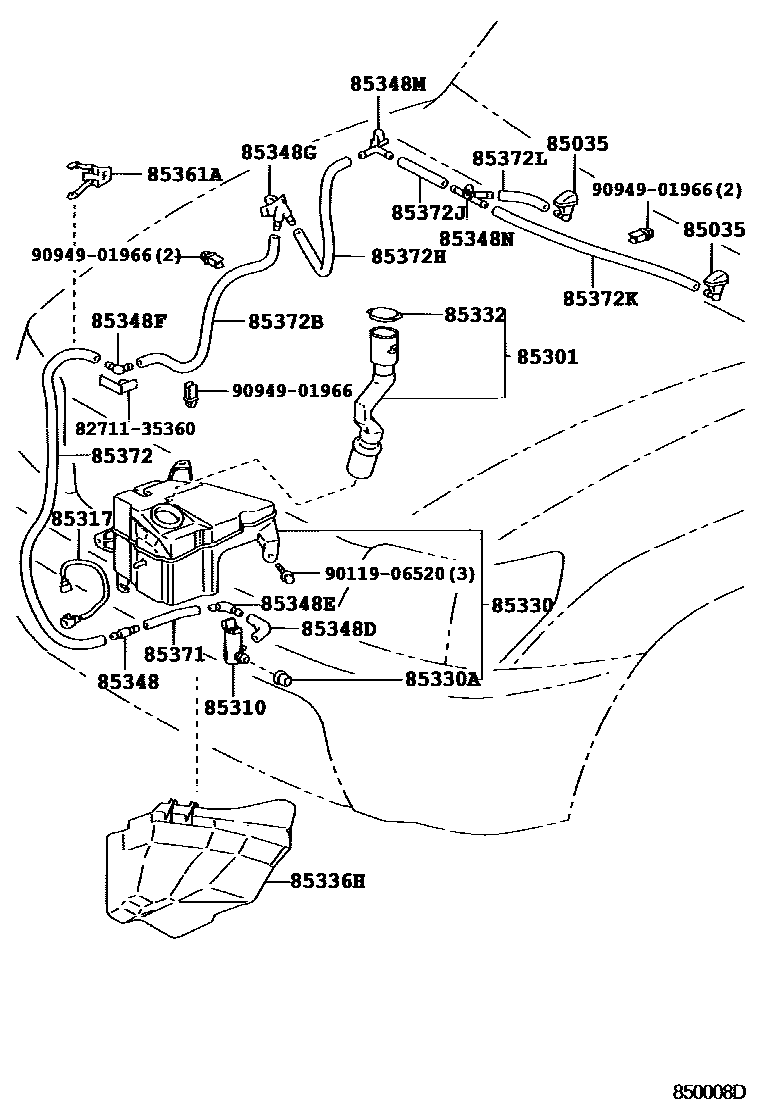

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
W(CYCLON TYPE AIR CLEANER)
W(HEADLAMP CLEANER)
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85317WIRING ASSY, WASHER
85330JAR ASSY, WINDSHIELD WASHER
W(HEADLAMP CLEANER)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
W(HEADLAMP CLEANER)
85336HCOVER, WINDSHIELD WASHER JAR UNDER
W(HEADLAMP CLEANER)
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85361ABRACKET, WINDSHIELD WASHER, NO.1
W(CYCLON TYPE AIR CLEANER)
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=340)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=740)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=330)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=185)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=725)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=145)
8271135360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35360
9011906520
main90119-06520
9094901966
main90949-01966
26 parts on this diagram · 1 diagram in section
