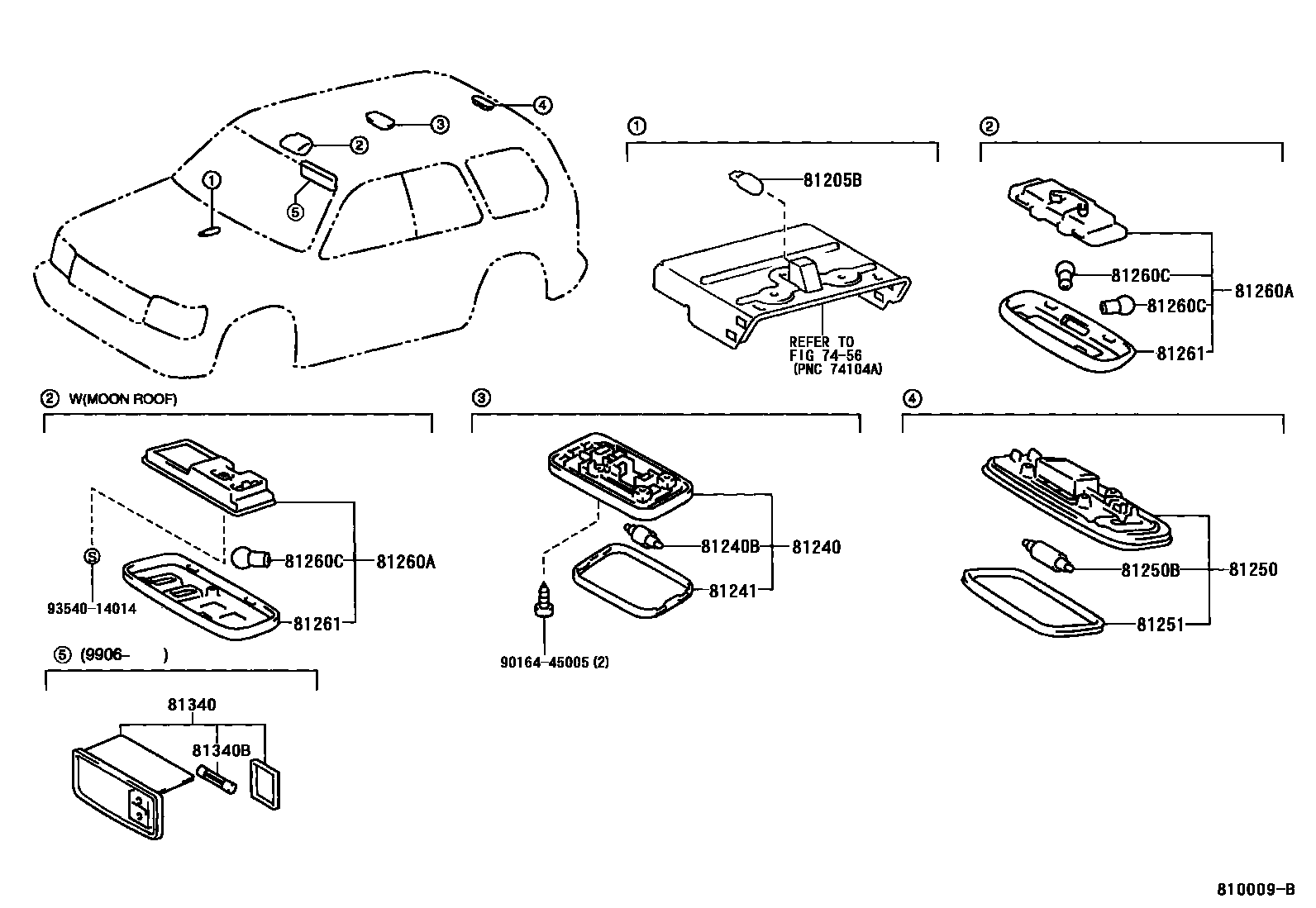

INTERIOR LAMP

7456ASH RECEPTACLE

→ Go to FIG 74-56

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iKDJ9#,VZJ9#199906-200209

12V 1.2W W/O SOCKET

main90981-11041iKZJ90;KZJ95..MTM;KZJ95..LHD..ATM199906-200008

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

LT.BLUISH GRAY,TRIM1#

main81240-12060-B2iKZJ9#,VZJ9#199604-199906

MOON MIST,TRIM1#

main81240-12060-E0iKZJ9#199906-200209

MD.OAK,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iKDJ9#,KZJ9#,VZJ9#199906-200209

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iKZJ9#,VZJ9#199604-199906

81250LAMP ASSY, ROOM, NO.2

main81240-60020-B0iKZJ95,VZJ95199604-199906

MOON MIST,TRIM1#

main81240-60020-C0iKDJ95,VZJ95200108-200209

BLACK,TRIM1#,4#

81250BBULB, ROOM LAMP, NO.2

main90981-11004iKDJ95,KZJ95,VZJ95199906-200209

12V 10W

main90981-11041iKZJ9#..LHD..MTM199604-199906

14V 1.4W

81251LENS, ROOM LAMP, NO.2

main81241-95013iKZJ95,VZJ95199604-199906

81260ALAMP ASSY, MAP

main81260-20230-B2iKZJ9#,VZJ9#199604-199906

W(MOON ROOF),MOON MIST,TRIM1#

main81260-20230-B3iKDJ9#,KZJ9#,VZJ9#199906-200209

W(MOON ROOF),LT.BLUISH GRAY,TRIM1#

main81260-20230-E0iKZJ9#199906-200209

W(MOON ROOF),MD.OAK,TRIM4#

main81260-60040-B0iKZJ9#,VZJ9#199604-199906

MOON MIST,TRIM1#

main81260-60040-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

LT.BLUISH GRAY,TRIM1#

main81260-60040-E0iKDJ9#,VZJ9#200108-200209

MD.OAK,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-12014iKDJ9#,KZJ9#,VZJ9#199906-200209

12V 10W; 12V 10W,W(MOON ROOF)

81261LENS AND COVER, MAP LAMP

main81261-20160-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

W(MOON ROOF),LT.BLUISH GRAY,TRIM1#

main81261-20160-B3iKZJ9#,VZJ9#199604-199906

W(MOON ROOF),MOON MIST,TRIM1#

main81261-20160-E2iVZJ95199906-200008

W(MOON ROOF),MD.OAK,TRIM4#

main81261-60040-B0iKZJ9#,VZJ9#199604-199906

MOON MIST,TRIM1#

main81261-60040-B1iKDJ9#,KZJ9#,VZJ9#199906-200209

LT.BLUISH GRAY,TRIM1#

main81261-60040-E0iKDJ95,VZJ95200108-200209

MD.OAK,TRIM4#

81340LAMP ASSY, VANITY

main81340-33090-B6iKZJ90..RHD;KZJ90..ATM199906-200008

LT.BLUISH GRAY,TRIM1#,LH

main81340-33090-E0iVZJ9#;KZJ90..RHD;KZJ90..ATM199906-200008

MD.OAK,TRIM4#,LH

main81350-33040-B6iKZJ90..RHD;KZJ90..ATM199906-200008

LT.BLUISH GRAY,TRIM1#,RH

main81350-33040-E0iVZJ9#;KZJ90..RHD;KZJ90..ATM199906-200008

MD.OAK,TRIM4#,RH

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iKDJ9#,KZJ9#,VZJ9#199906-200209

12V 1.5W

9016445005

main90164-45005

9354014014

main93540-14014

15 parts on this diagram · 1 diagram in section
