BATTERY CARRIER

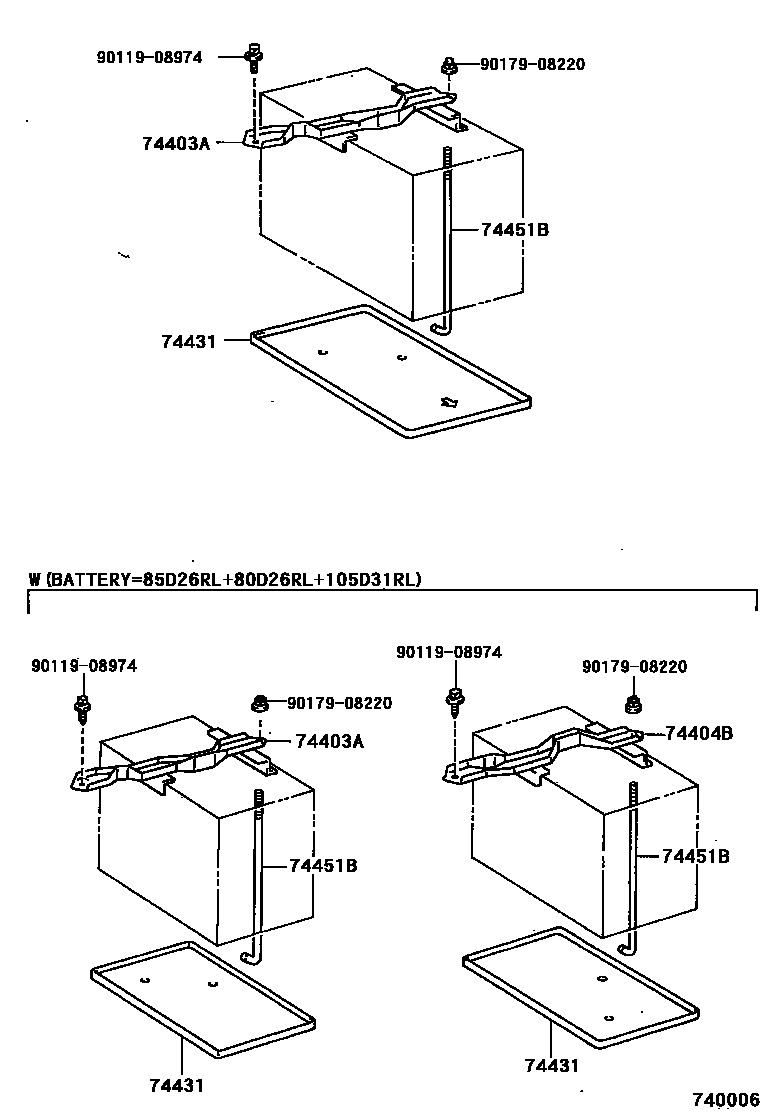

Parts diagram

74403ACARRIER SUB-ASSY, BATTERY

main74403-60180i199906-200209

74404BCLAMP SUB-ASSY, BATTERY

main74404-60120i199604-199906

74431TRAY, BATTERY

main74431-14030×2i199604-199906

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

main74431-35030i199906-200209

main74431-35040i199906-200209

W(BATTERY=105D31R OR 105D31L); W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

74451BBOLT, BATTERY CLAMP

main74451-35060i199604-199906

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

9011908974

main90119-08974

9017908220

main90179-08220

6 parts on this diagram · 1 diagram in section
