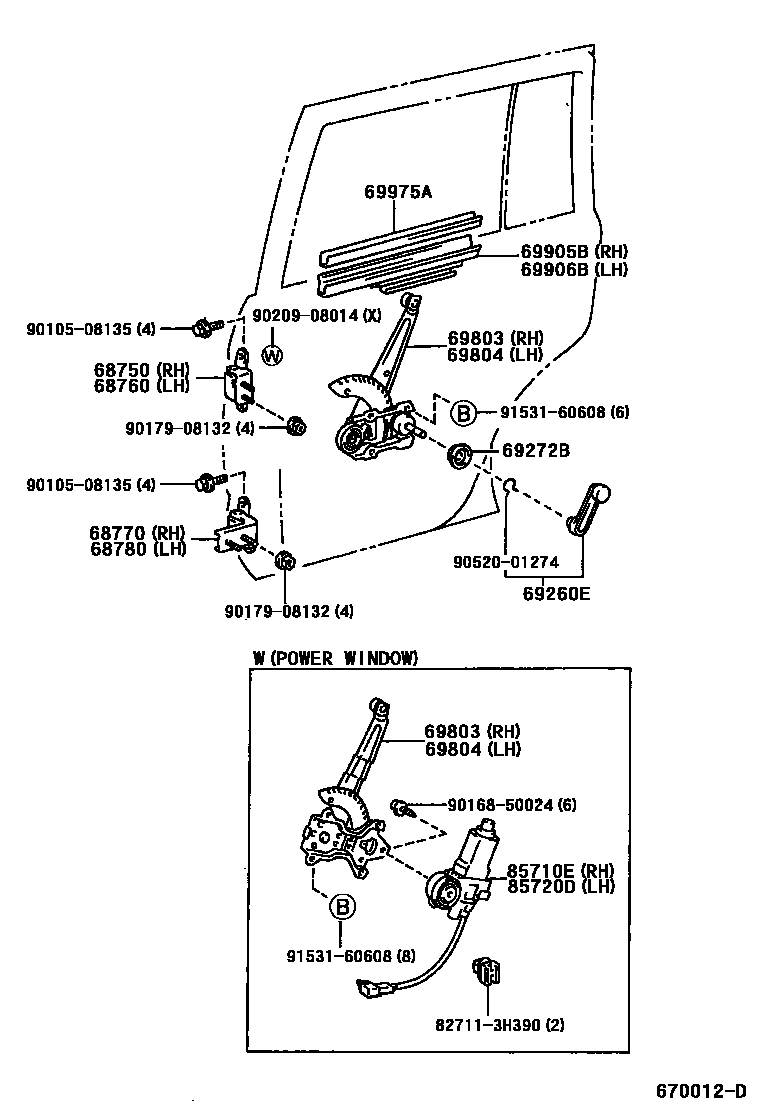

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60050iKDJ95,KZJ95,VZJ95199906-200209

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60050iKZJ95,VZJ95199604-199906

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12100iKZJ95,VZJ95199604-199906

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12090iKDJ95,KZJ95,VZJ95199906-200209

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-B3×2iKZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

main69260-14030-E4×2iVZJ95199906-200008

OAK,TRIM4#

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iKDJ95,VZJ95200108-200209

NATURAL WHITE,TRIM1#,4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60040iKZJ95,VZJ95199604-199906

main69803-60050iKZJ95,VZJ95199604-199906

W(POWER WINDOW)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60040iKZJ95,VZJ95199604-199906

main69804-60050iKDJ95,KZJ95,VZJ95199906-200209

W(POWER WINDOW)

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60040iKDJ95,KZJ95,VZJ95199906-200209

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-60030iKZJ95,VZJ95199604-199906

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60030×2iKZJ95,VZJ95199604-199906

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-60070iKZJ95,VZJ95199604-199906

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-60070iKZJ95,VZJ95199604-199906

827113H390WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H390

9010508135

main90105-08135

9016850024

main90168-50024

9017908132

main90179-08132

9020908014

main90209-08014

9052001274

main90520-01274

9153160608

main91531-60608

20 parts on this diagram · 1 diagram in section
