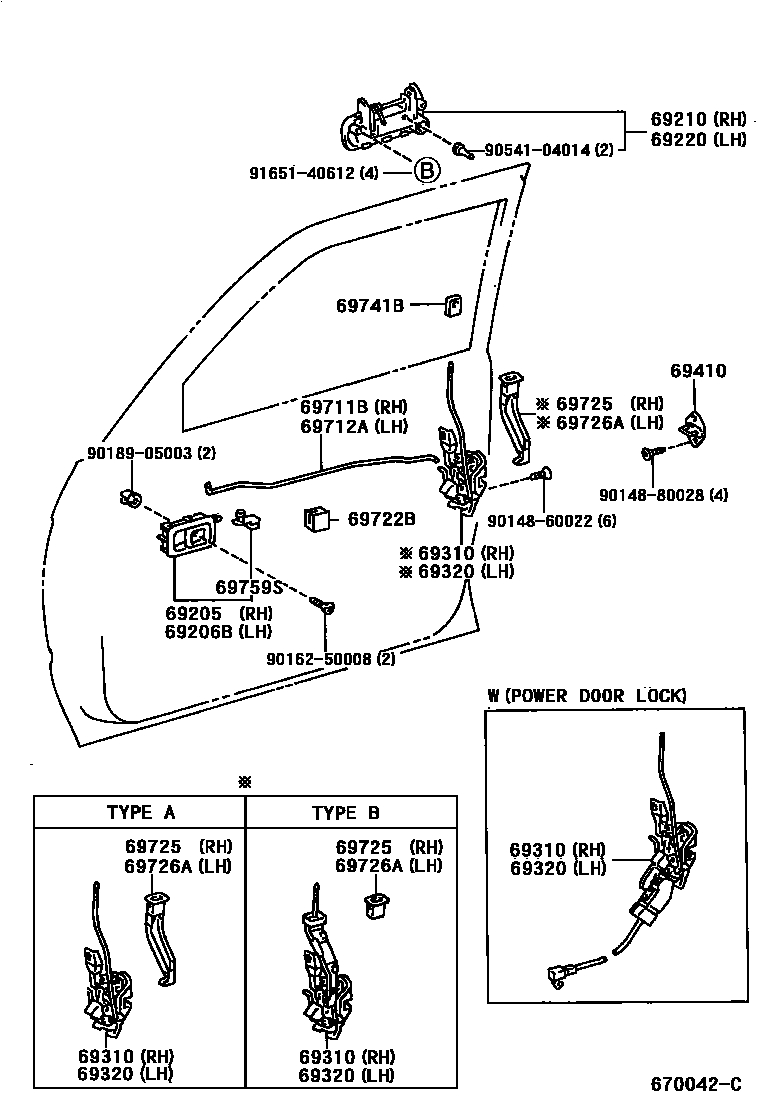

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MD.MOON MIST,TRIM1#
OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MD.MOON MIST,TRIM1#
OAK,TRIM40,41
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
CHROME PLATED
CHROME PLATED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
CHROME PLATED
CHROME PLATED
69310LOCK ASSY, FRONT DOOR, RH
TYPE A:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE B:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE A:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE B:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
69320LOCK ASSY, FRONT DOOR, LH
TYPE B:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE B:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE A:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE B:REFER TO ILLUSTRATION & W(POWER DOOR LOCK)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69722BPAD, BACK DOOR LOCK CONTROL
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
69741BKNOB, FRONT DOOR LOCK CONTROL
MD.MOON MIST,TRIM1#
OAK,TRIM4#
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
RH
9014860022
main90148-60022
9014880028
main90148-80028
9016250008
main90162-50008
9018905003
main90189-05003
9054104014
main90541-04014
9165140612
main91651-40612
20 parts on this diagram · 1 diagram in section
