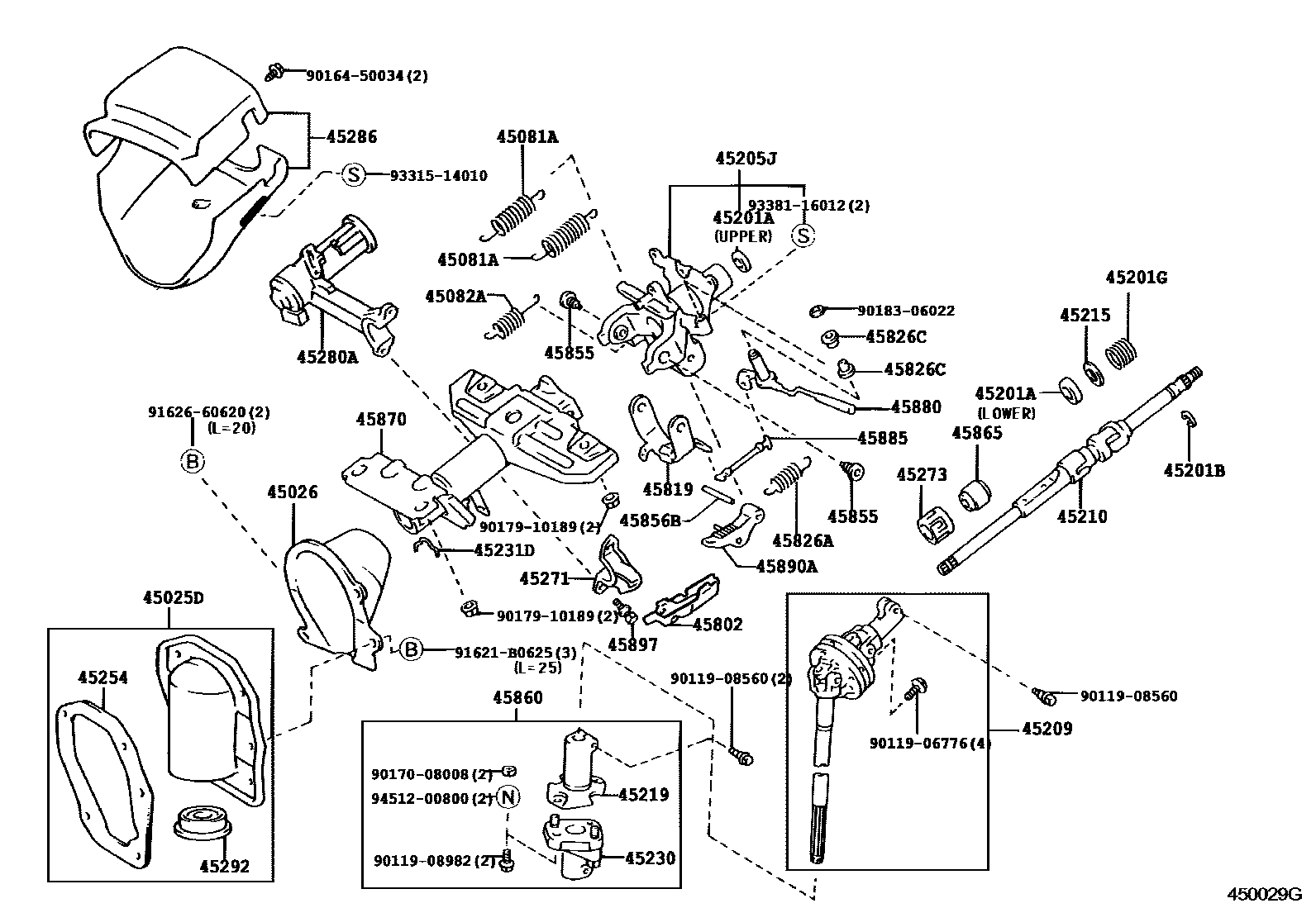

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
W(VSC & ACTIVE TRC)
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45081ASPRING, TENSION(FOR TILT STEERING)
45082ASPRING, TORSION(FOR TILT STEERING RETURN)
45201ABEARING(FOR STEERING MAIN SHAFT)
UPPER
LOWER
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45215COLLAR, MAIN SHAFT BEARING THRUST
45219YOKE, STEERING SLIDING
45230COUPLING ASSY, FLEXIBLE
45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
W(ENGINE IMMOBILIZER SYSTEM & TILT STEERING) OR W(UNLOCK WARNING & TILT STTERING)
45286COVER, STEERING COLUMN
MD.MOON MIST,TRIM1#
OAK,TRIM4#
OAK,TRIM40,41
MD.MOON MIST,TRIM1#
OAK,TRIM4#
OAK,TRIM40,41
45292SEAL, MAIN SHAFT LOWER DUST
45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BOLT, TILT STEERING, NO.1
OD=10
45856BSHAFT, T1LT STEERING, NO.2
45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
9011906776
main90119-06776
9011908560
main90119-08560
9011908982
main90119-08982
9016450034
main90164-50034
9017008008
main90170-08008
9017910189
main90179-10189
9018306022
main90183-06022
91621B0625
main91621-B0625
9162660620
main91626-60620
9331514010
main93315-14010
9338116012
main93381-16012
9451200800
main94512-00800
45 parts on this diagram · 2 diagrams in section
