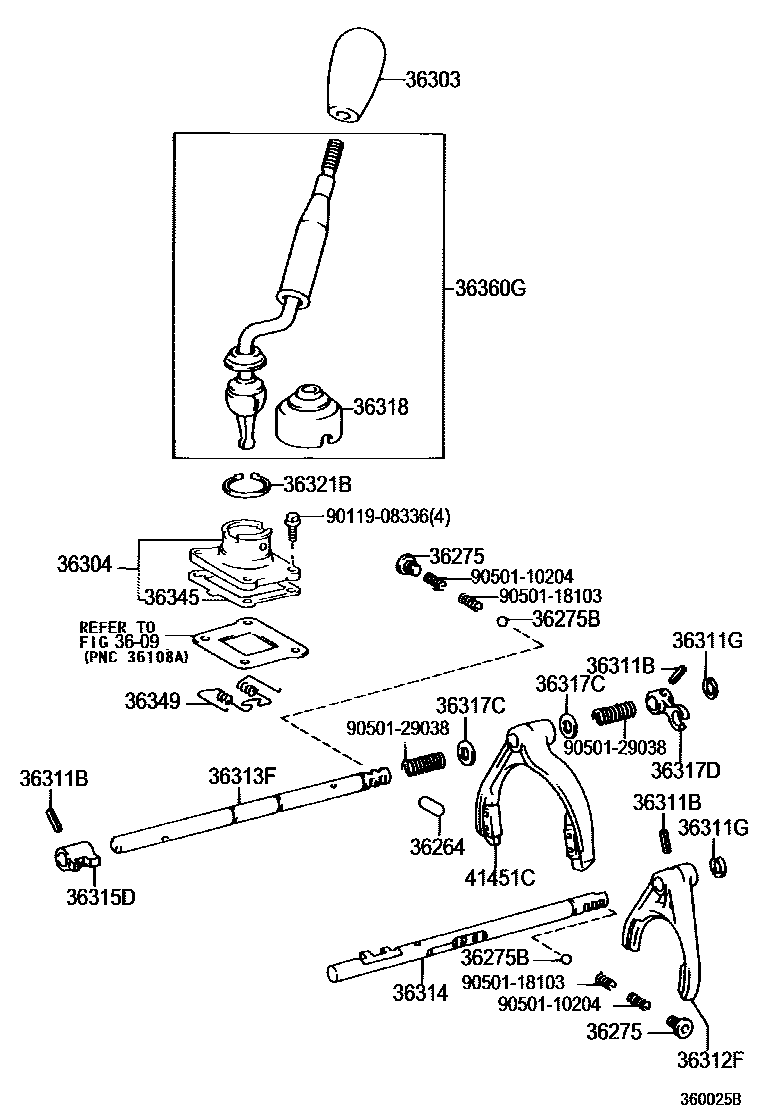

TRANSFER LEVER & SHIFT ROD
3609TRANSFER CASE & EXTENSION HOUSING
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=25.7,OD=9.53
36275PLUG, SHIFT DETENT BALL SPRING
W(VSC & ACTIVE TRC)
36275BBALL, SHIFT DETENT
OD=9.52,STEEL,W(VSC & ACTIVE TRC)
36303KNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#
W(VSC & ACTIVE TRC),BLACK,TRIM1#,4#
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=22
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
W(VSC & ACTIVE TRC)
36315DHEAD, TRANSFER GEAR SHIFT, NO.1
36317CSTOPPER, TRANSFER SHIFT SHAFT
36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36349SPRING, TRANSFER SELECT RETURN
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
W(VSC & ACTIVE TRC)
W(VSC & ACTIVE TRC)
41451CFORK, DIFFERENTIAL LOCK SHIFT
9011908336
main90119-08336
9050110204
main90501-10204
9050118103
main90501-18103
9050129038
main90501-29038
24 parts on this diagram · 3 diagrams in section
