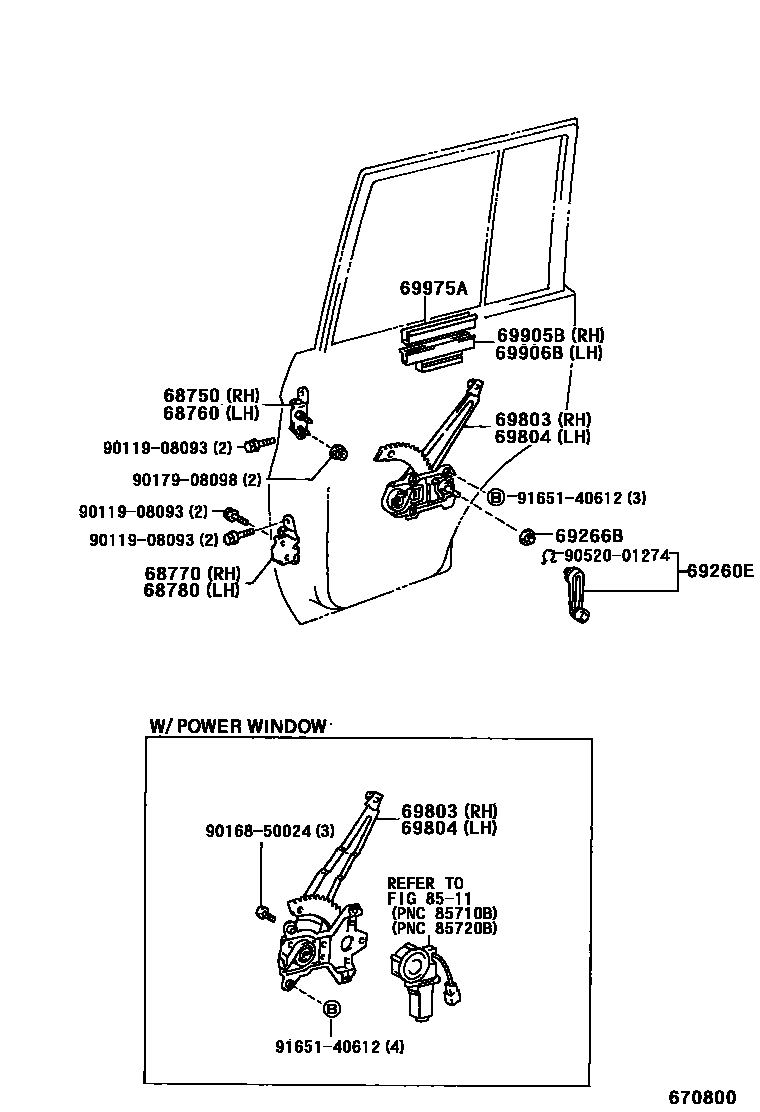

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60020iLJ77199004-199201

main68750-60040iLJ77199201-199305

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60020iLJ77199004-199201

main68760-60040iLJ77199201-199305

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-24010iLJ77199004-199201

main68730-60020iKZJ77199305-199604

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-24010iLJ77199004-199201

main68740-60020iLJ77199201-199305

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-07×2iKZJ77199305-199604

LIGHT GRAY,TRIM1#

main69260-14030-08×2iLJ77199004-199305

BLUISH GRAY,TRIM4#

main69260-14030-E2×2iKZJ77199305-199501

LIGHT SABLE,TRIM4#

main69260-14030-E3×2iKZJ77199501-199604

LIGHT OAK,TRIM4#

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010-08×2iLJ77199004-199305

NATURAL WHITE,TRIM1#,4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60020iLJ77199004-199305

W(*PW)

main69830-60040iKZJ77199305-199604

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60020iKZJ77199305-199604

W(*PW)

main69840-60040iKZJ77199305-199604

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60030iKZJ77199305-199604

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-60030iKZJ77199305-199604

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60011×2iKZJ77199507-199604

main69975-60020×2iLJ77199004-199305

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850024

main90168-50024

9017908098

main90179-08098

9052001274

main90520-01274

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
