HOOD & FRONT FENDER

0001 1 0003 1 0004 1

53301HOOD SUB-ASSY

main53301-60110iLJ7#,RJ7#199001-199305

W(WINDSHIELD REST CRADLE)

main53301-60111iKZJ70..SOT;KZJ73,LJ73,RJ73..LX199305-199604

W(SASH DETACHABLE DOOR)

main53301-60130iLJ7#,RJ7#199001-199305

main53301-60131iKZJ7#,LJ7#,RJ7#199305-199604

main53301-60150iHZJ7#199305-199401

main53301-60151iHZJ7#199401-199908

main53301-60170iBJ73; HZJ73199305-199401

W(SASH DETACHABLE DOOR)

main53301-60171iBJ73,HZJ73199401-199908

W(SASH DETACHABLE DOOR)

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-60070iBJ73,HZJ7#199305-199908

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-60090iBJ73,HZJ7#,PZJ7#199001-200108

53341BINSULATOR, HOOD

main53341-60040iRJ7#199001-199305

main53341-60041iRJ7#199305-199604

main53341-60050iLJ7#199001-199305

main53341-60051iLJ7#199305-199501

main53341-60060iBJ73,HZJ7#,PZJ7#199001-199208

main53341-60120iBJ73,HZJ7#199208-199305

main53341-60121iBJ73,HZJ7#199401-199908

main53341-60130iKZJ7#199305-199604

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×16iBJ73,HZJ7#,PZJ7#199001-200108

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60020iLJ7#,RJ7#199001-199305

main53381-90K01iBJ73,HZJ7#,PZJ7#199001-200108

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iKZJ7#,LJ7#,RJ7#199305-199604

53382BUMPER, HOOD, FRONT

main53382-60010×2iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199008-199111

main53382-60011×2iHZJ7#199908-200108

main53382-90K01×2iBJ73,HZJ7#,PZJ7#199001-199008

53384ABUMPER, FENDER TO HOOD

main53384-60020×4iLJ7#,RJ7#199001-199305

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020×2iLJ7#,RJ7#199001-199305

53386BUMPER, HOOD, REAR

main53382-30060×4iBJ73,HZJ7#,PZJ7#199001-199004

main53384-60030×4iBJ73,HZJ7#,PZJ7#199004-200108

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020×2iLJ7#,RJ7#199001-199305

53390CRADLE ASSY, WINDSHIELD REST

main53390-90K00×2iLJ70..SOT;BJ73,HZJ73,74,LJ73,PZJ73,RJ73..LX,STD,VM199001-200007

53801FENDER SUB-ASSY, FRONT RH

main53801-60340iLJ73,RJ7#..LX;LJ70..RHD..LX;LJ70..LHD..(STD,VX)199001-199305

main53801-60341iKZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD199305-199604

main53801-60350iLJ77199004-199305

main53801-60360iLJ73..LX;LJ70,RJ7#..LHD; LJ73..VX199001-199305

W(265/75R15 TIRE)

main53801-60361iKZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD; KZJ73..VX199305-199604

W(265/75R15 TIRE)

main53801-60370iLJ77199004-199305

W(265/75R15 TIRE)

main53801-60380iLJ70..LHD..LX199001-199305

main53801-60381iKZJ70..RHD..LX199305-199604

main53801-60400iLJ70..RHD..LX; LJ70..RHD..VX199001-199305

W(265/75R15 TIRE)

main53801-60401iKZJ70..RHD..LX; KZJ70..RHD..VX199305-199604

W(265/75R15 TIRE)

main53801-90K04iBJ73,HZJ7#,PZJ7#199001-200108

main53801-90K13iHZJ71,74199908-200108

W(OVER FENDER)

53802FENDER SUB-ASSY, FRONT LH

main53802-60280iLJ70..RHD..LX199001-199305

main53802-60281iKZJ70..RHD..LX199305-199604

main53802-60300iLJ70..RHD..LX; LJ70..RHD..VX199001-199305

W(265/75R15 TIRE)

main53802-60301iKZJ70..RHD..LX; KZJ70..RHD..VX199305-199604

W(265/75R15 TIRE)

main53802-60320iLJ73..LX;LJ70,RJ7#..LHD199001-199305

main53802-60321iKZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD199305-199604

main53802-60330iLJ77199004-199305

main53802-60340iLJ73..LX;LJ70,RJ7#..LHD; LJ73..VX199001-199305

W(265/75R15 TIRE)

main53802-60341iKZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD; KZJ73..VX199305-199604

W(265/75R15 TIRE)

main53802-60350iLJ77199004-199305

W(265/75R15 TIRE)

main53802-90K04iBJ73,HZJ7#,PZJ7#199001-200108

main53802-90K15iHZJ70,73,PZJ70,73199001-199305

W(265/75R15 TIRE)

53833PANEL, FRONT FENDER SIDE, LOWER

main53833-60020iLJ7#,RJ7#199001-199305

main53833-90K01iBJ73,HZJ7#,PZJ7#199001-200108

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53834-60020iLJ7#,RJ7#199001-199305

main53834-90K01iHZJ7#199908-200108

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-60020iKZJ7#,LJ7#,RJ7#199305-199604

main53835-60010iBJ73,HZJ7#199305-199908

53859PROTECTOR, FRONT FENDER

main53859-60010iLJ7#199001-199305

53878CSPACER, FRONT FENDER

main53878-90K00iBJ73,HZJ7#,PZJ7#199001-200108

53879CRETAINER, FRONT FENDER LINER

main53879-90K00iBJ73,HZJ7#,PZJ7#199001-200108

53899BSUPPORT, FRONT FENDER PANEL

main53899-60010iLJ7#199001-199305

53903BPANEL SUB-ASSY, FRONT END

main53903-60020iLJ7#,RJ7#199001-199305

main53903-60021iKZJ7#,LJ7#,RJ7#199305-199604

53911PANEL, FRONT VALANCE

main53911-60010iBJ73,HZJ7#,PZJ7#199001-200108

NO PAINT REQ.

main53911-60020iHZJ7#,PZJ7#199001-200108

NO PAINT REQ.,W(HEAD LAMP CLEANER)

9011908563

main90119-08563

9017008034

main90170-08034

9017906097

main90179-06097

9017906206

main90179-06206

9046709036

main90467-09036

9046709046

main90467-09046

9095003041

main90950-03041

9163140814

main91631-40814

9165140614

main91651-40614

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

91661F0612

main91661-F0612

91665F0616

main91665-F0616

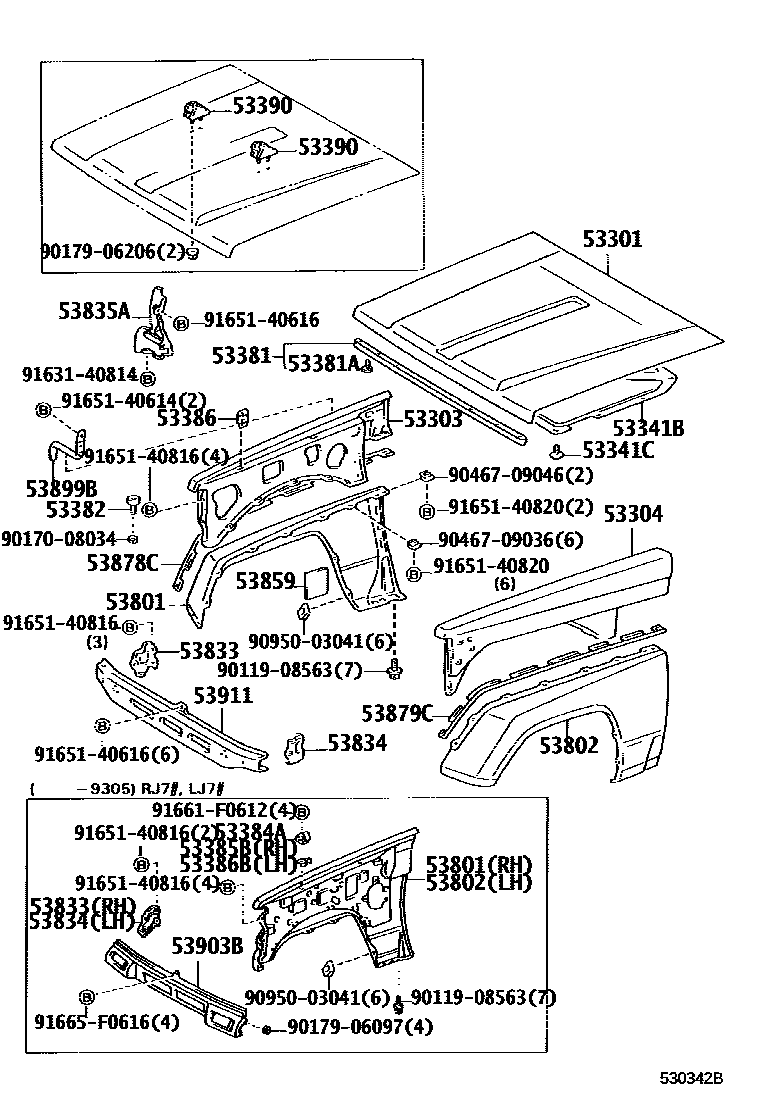

38 parts on this diagram · 3 diagrams in section
