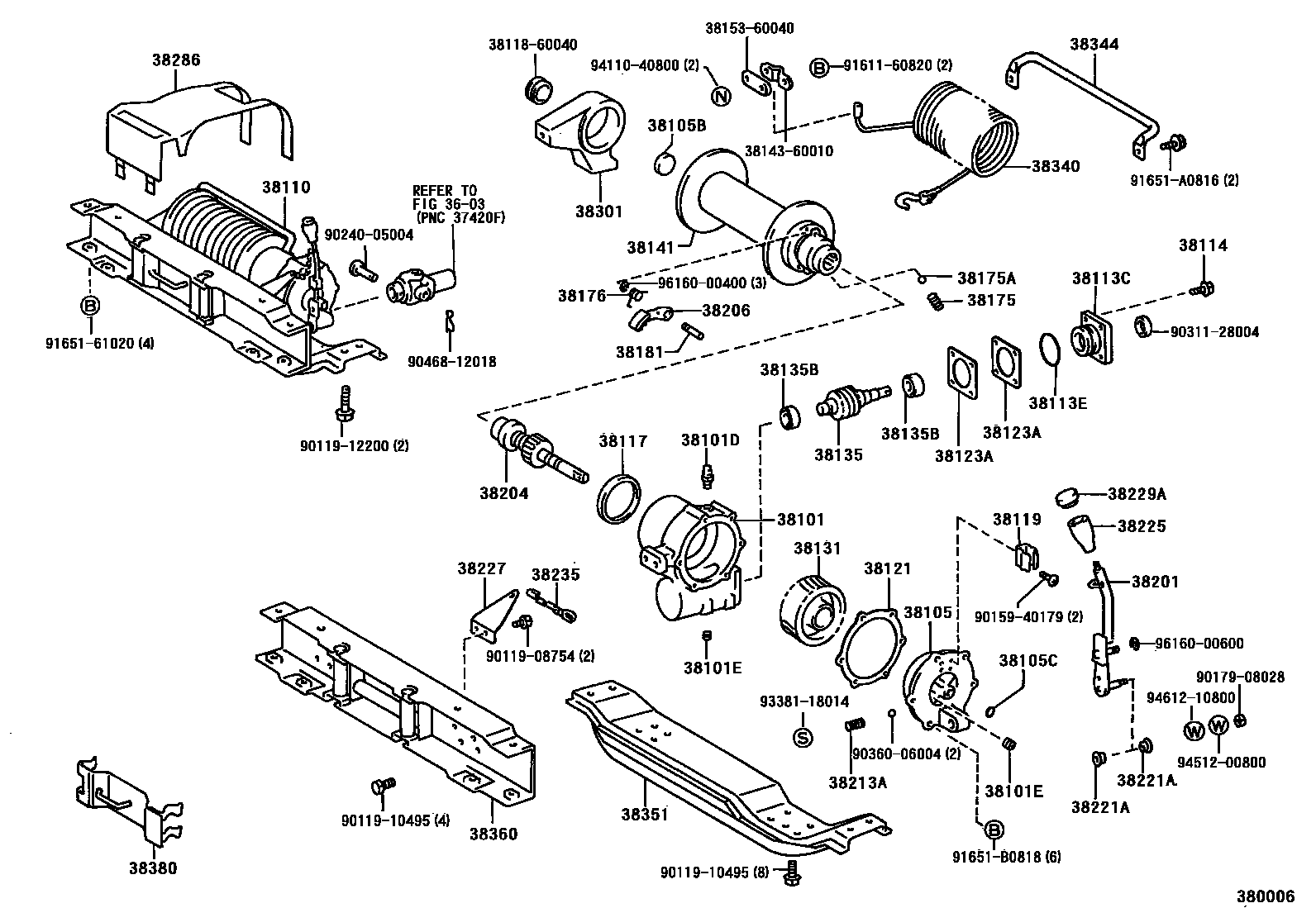

WINCH

0001 1MECHANICAL WINCH 0002 1MECHANICAL WINCH 0003 1ELECTRICAL WINCH 0004 1ELECTRICAL WINCH 0007 1ELECTRICAL WINCH 0008 1ELECTRICAL WINCH 0011 1ELECTRICAL WINCH

3603DRIVE SHAFT

→ Go to FIG 36-03

38101CASE SUB-ASSY, WINCH GEAR

main38101-60180iHZJ7#199305-199501

*MW

main38101-60210iLJ70..LX,STD;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI; RJ70..CBR199001-199108

*EW

main38101-60211iKZJ70,73..LHD..LX199501-199604

main38101-60220iHZJ7#,PZJ7#199001-199305

*EW

main38101-60221iHZJ7#199405-199501

*EW

38101DPLUG, BREATHER (FOR WINCH GEAR CASE)

main90930-03058iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38101EPLUG (FOR WINCH GEAR CASE)

main90072-34402×2iHZJ7#,PZJ7#199001-199206

main90344-51005×2iRJ70..CBR199001-199108

38105COVER SUB-ASSY, WINCH GEAR CASE

main38105-60170iHZJ7#,PZJ7#,RJ70..CBR,DSL; LJ70..LX,STD;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI199001-199108

ELECTRICAL

main38105-60180iHZJ7#,PZJ75199108-199305

MECHANICAL

main38105-60210iHZJ7#; KZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199405-199501

ELECTRICAL

38105BPLUG, TIGHT (FOR WINCH GEAR CASE COVER)

main90331-55001iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38105CRING, O (FOR WINCH GEAR CASE COVER)

main96721-24016iHZJ7#199305-199501

38110WINCH ASSY

main38110-60190iRJ70..CBR199001-199010

MECHANICAL

main38110-60191iRJ70..CBR199010-199104

MECHANICAL

main38110-60192iRJ70..CBR199104-199108

MECHANICAL

main38110-60200iHZJ7#,PZJ7#199001-199104

MECHANICAL

main38110-60201iHZJ7#,PZJ7#199104-199305

MECHANICAL

main38110-60202iHZJ7#199305-199501

MECHANICAL

main38110-60210iLJ70..LX,STD;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI; RJ70..CBR199001-199104

ELECTRICAL

main38110-60211iLJ70..LX,STD;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI; RJ70..CBR199104-199108

ELECTRICAL

main38110-60212iLJ73,RJ7#;LJ70..LX,STD;LJ70..LHD..VX199108-199305

main38110-60213iKZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199305-199501

main38110-60214iKZJ70,73..LHD..LX199501-199604

main38110-60224iHZJ7#199908-200108

main38110-60230iHZJ7#,PZJ7#199001-199104

ELECTRICAL

main38110-60231iHZJ7#,PZJ7#199104-199108

ELECTRICAL

main38110-60232iHZJ7#,PZJ75199108-199305

ELECTRICAL

main38110-60233iHZJ7#199305-199501

ELECTRICAL

main38110-60234iHZJ7#199501-199908

38113CRETAINER, WORM BEARING, NO.1

main38113-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38113ERING, O (FOR WINCH WORM BEARING RETAINER NO.1)

main96721-35071iHZJ7#199305-199501

38114BOLT, WINCH WORM BEARING RETAINER

main38114-60180×4iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38117SEAL, WINCH GEAR CASE COVER

main38117-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38119CLIP, WINCH GEAR CASE COVER

main38119-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38121GASKET, WINCH GEAR CASE COVER

main38121-60170iKZJ70..LHD..LX;HZJ7#,KZJ73..LX,STD199501-199908

main38121-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

MECHANICAL

38123ASHIM, WINCH WORM ADJUST, NO.1

main38123-60180iHZJ7#,PZJ7#199001-199305

T=0.228

main38124-60180iHZJ7#,PZJ7#199001-199305

T=0.500

main38125-60180iRJ70..CBR199001-199108

T=1.000

38131GEAR, WORM

main38131-60180iHZJ7#199305-199501

38135WORM, WINCH

main38135-60180iHZJ7#199305-199501

38135BBEARING (FOR WINCH WORM)

main97600-30206×2iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38141DRUM, WINCH

main38141-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199104

main38141-60181iHZJ7#,PZJ7#,RJ70..CBR,DSL199104-199108

38175SPRING, WINCH BRAKE, NO.1

main38175-60180×3iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38175ABALL (FOR WINCH BRAKE SPRING NO.1)

main90360-11001×3iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38176SPRING, WINCH BRAKE, NO.1

main38176-60180×3iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38181PIN, WINCH BRAKE

main38181-60180×3iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38201LEVER SUB-ASSY, WINCH CLUTCH

main38201-60190iRJ70..CBR199001-199010

main38201-60191iRJ70..CBR199010-199108

main38201-60200iHZJ7#,PZJ7#199001-199305

38204SHAFT ASSY, WINCH CLUTCH HUB

main38204-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38206BRAKE ASSY, WINCH

main38206-60180iHZJ7#199305-199501

38213ASPRING, WINCH CLUTCH HUB SHIFT

main38213-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38221LEVER, CLUTCH HUB SHIFT

main38221-60180iRJ70..CBR199001-199010

main38221-60181iRJ70..CBR199010-199108

38221ABUSH (FOR CLUTCH HUB SHIFT LEVER)

main90386-13007×2iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38225KNOB, WINCH CLUTCH LEVER

main38225-60040iHZJ7#199908-200108

main38225-60180iRJ70..CBR199001-199108

main38225-60200iHZJ7#199001-199305

MECHANICAL

38227PLATE, WINCH CLUTCH LEVER SHIFT LOCK

main38227-60190iRJ70..CBR199001-199108

main38227-60200iHZJ7#,PZJ7#199001-199305

38229ACOVER, WINCH CLUTCH

main38229-60180iRJ70..CBR199001-199108

main38229-60200iHZJ7#,PZJ7#199001-199305

38235CHAIN, WINCH CLUTCH LEVER

main38235-60200iHZJ7#,PZJ7#199001-199305

38286COVER, WINCH

main38286-60100iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

MECHANICAL

main38286-60110iHZJ7#,PZJ7#,RJ70..CBR,DSL; LJ70..LX,STD;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI199001-199108

ELECTRICAL

main38286-60111iKZJ70..LHD..VX;HZJ7#,KZJ70,73,LJ7#,RJ7#..LX,STD199305-199501

38301BRACKET SUB-ASSY, WINCH END

main38301-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38340WIRE ASSY, WINCH CHAIN

main38340-60180iHZJ7#,PZJ7#,RJ70..CBR,DSL199001-199108

38344GUIDE, WINCH WIRE

main38344-60200iHZJ7#,PZJ7#199001-199104

main38344-60201iHZJ7#,PZJ7#199104-199305

38351BASE, WINCH

main38351-60190iRJ70..CBR199001-199108

main38351-60200iHZJ7#,PZJ7#199001-199305

38360BRACKET ASSY, WINCH ROLLER

main38360-60030iLJ73,RJ7#;LJ70..LX,STD;LJ70..LHD..VX199001-199104

main38360-60031iLJ73,RJ7#;LJ70..LX,STD;LJ70..LHD..VX199104-199305

main38360-60032iKZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199305-199501

main38360-60040iHZJ7#,PZJ7#199001-199104

main38360-60041iHZJ7#,PZJ7#199104-199305

main38360-60042iHZJ7#199908-200108

38380HOLDER ASSY, WINCH HOOK

main38380-60020iLJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#199001-199104

main38380-60021iLJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#199104-199305

main38380-60022iKZJ70..LHD..VX;HZJ7#,KZJ70,73,LJ7#,RJ7#..LX,STD199305-199501

3811860040COVER, WINCH DRUM HOUSING

main38118-60040

3814360010LOCK, WIRE

main38143-60010

3815360040PLATE, WIRE LOCK

main38153-60040

9011908754

main90119-08754

9011910495

main90119-10495

9011912200

main90119-12200

9015940179

main90159-40179

9017908028

main90179-08028

9024005004

main90240-05004

9031128004

main90311-28004

9036006004

main90360-06004

9046812018

main90468-12018

9161160820

main91611-60820

9165161020

main91651-61020

91651A0816

main91651-A0816

91651B0818

main91651-B0818

9338118014

main93381-18014

9411040800

main94110-40800

9451200800

main94512-00800

9461210800

main94612-10800

9616000400

main96160-00400

9616000600

main96160-00600

62 parts on this diagram · 7 diagrams in section
