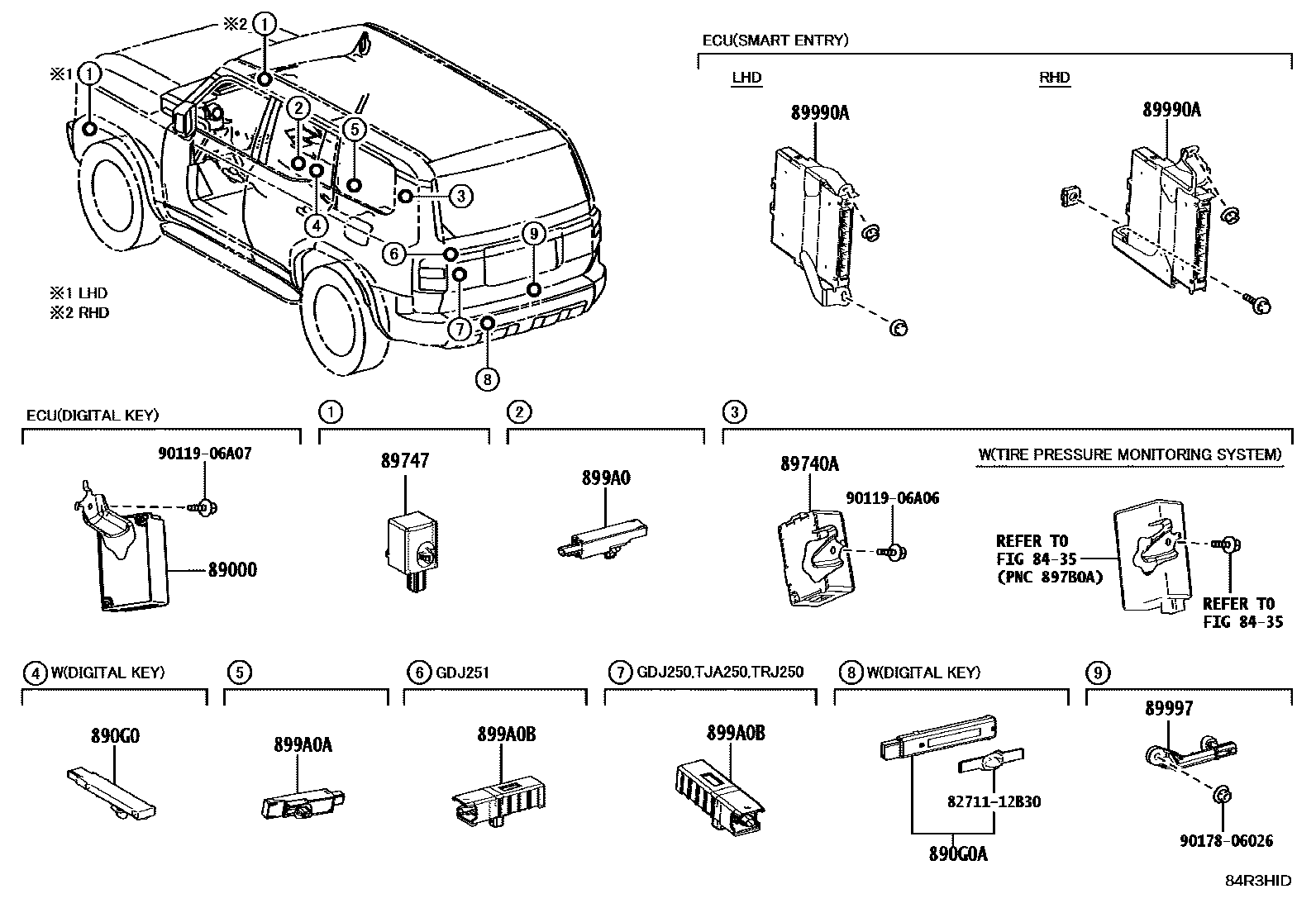

WIRELESS DOOR LOCK
8435TIRE PRESSURE WARNING SYSTEM
89000COMPUTER ASSY, DIGITAL KEY
DIGITAL KEY-WITH
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
DIGITAL KEY-WITH
890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2
DIGITAL KEY-WITH
89740ARECEIVER ASSY, SMART DOOR CONTROL
main89740-60380iGDJ250,TRJ250..LHD..U..GEN; TRJ250..R..GEN;GDJ250..RHD..(GEN,SA);GDJ250,TJA250..LHD..(A,L,R)..GEN202401
WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY(PANIC)
TIRE INFLATION PRESSURE WARNING-WITHOUT
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
main899H0-60410supersedes 899H0-60420iGDJ250,TRJ250..LHD..U..GEN; TJA250..(A,L)..RUS;GDJ250,TRJ250..(A,L,R)..RUS; TJA250..R,U;TJA250..(A,L)..(GCC,GEN);GDJ250,TRJ250..LHD..U..(EUR,GCC,RUS);GDJ250,TRJ250..LHD..(A,L,R)..(GCC,GEN)202401
ANTI-THEFT SYSTEM-ALARM & SIREN & *IS & TILT; WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY(PANIC)
main899H0-60420iTJA250..(A,L)..GEN;GDJ250..LHD..(A,L,R)..GEN; TJA250..(A,L)..RUS;GDJ250,TRJ250..(A,L,R)..RUS202401
ANTI-THEFT SYSTEM-ALARM & SIREN & *IS & TILT
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
9011906A06
main90119-06A06
9011906A07
main90119-06A07
9017806026
main90178-06026
15 parts on this diagram · 1 diagram in section
