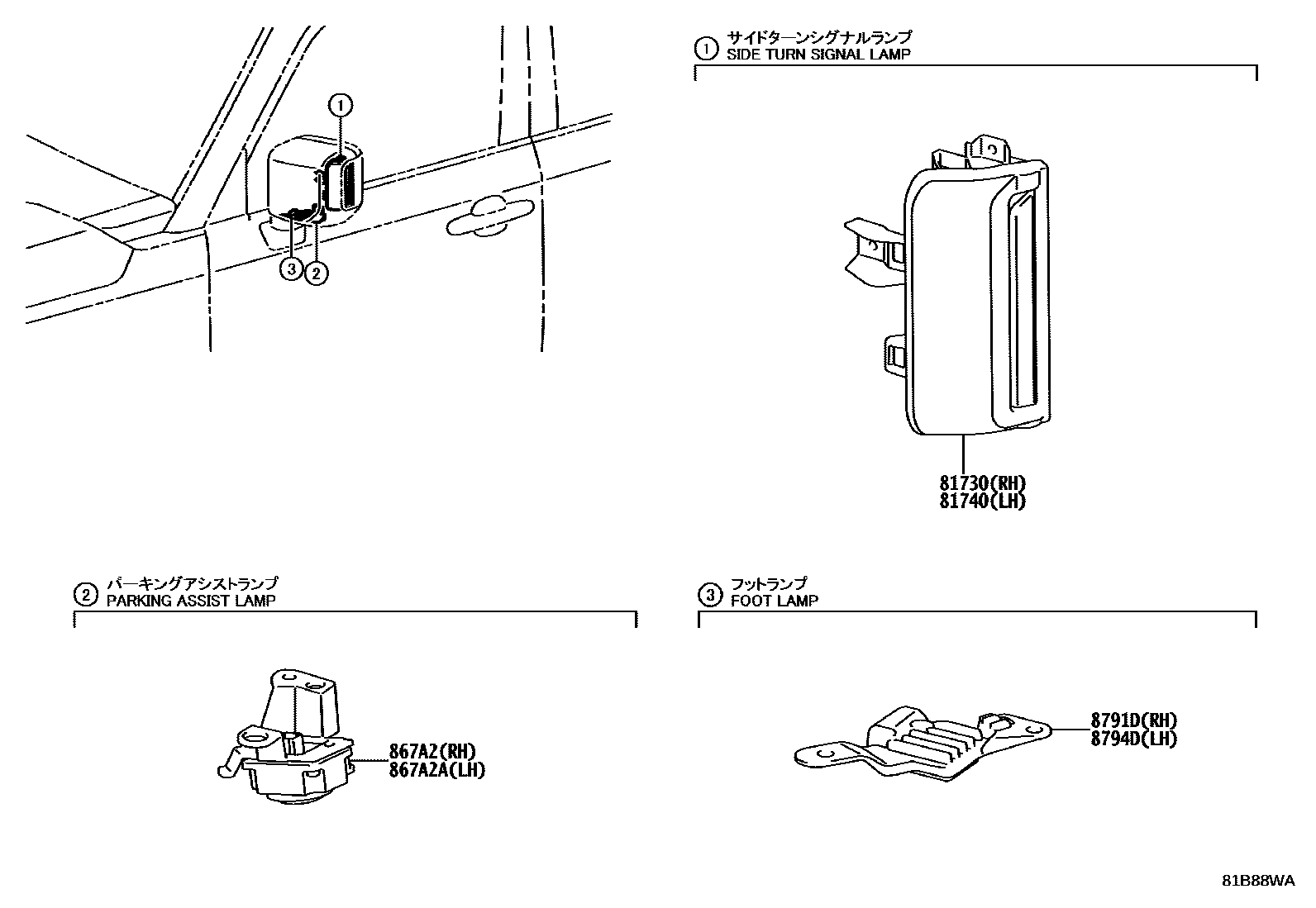

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
81740LAMP ASSY, SIDE TURN SIGNAL, LH
867A2LIGHT, PARKING ASSIST, RH
867A2ALIGHT, PARKING ASSIST, LH
8791DLED, OUTER MIRROR FOOT LAMP, RH
main8791D-6A560iGDJ250,TJA250..A..GCC; GDJ250,TJA250..R..GCC; GDJ250,TJA250..U..GCC; GDJ250..(R,U)..EUR; GDJ250..RHD..(A,L)..EUR202401-202509
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH)& 10SPEAKER&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); LANE CHANGE ASSIST-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
8794DLED, OUTER MIRROR FOOT LAMP, LH
main8794D-6A430iGDJ250,TJA250..A..GCC; GDJ250,TJA250..R..GCC; GDJ250,TJA250..U..GCC; GDJ250..(R,U)..EUR; GDJ250..RHD..(A,L)..EUR202401-202509
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH)& 10SPEAKER&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); LANE CHANGE ASSIST-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
6 parts on this diagram · 1 diagram in section
