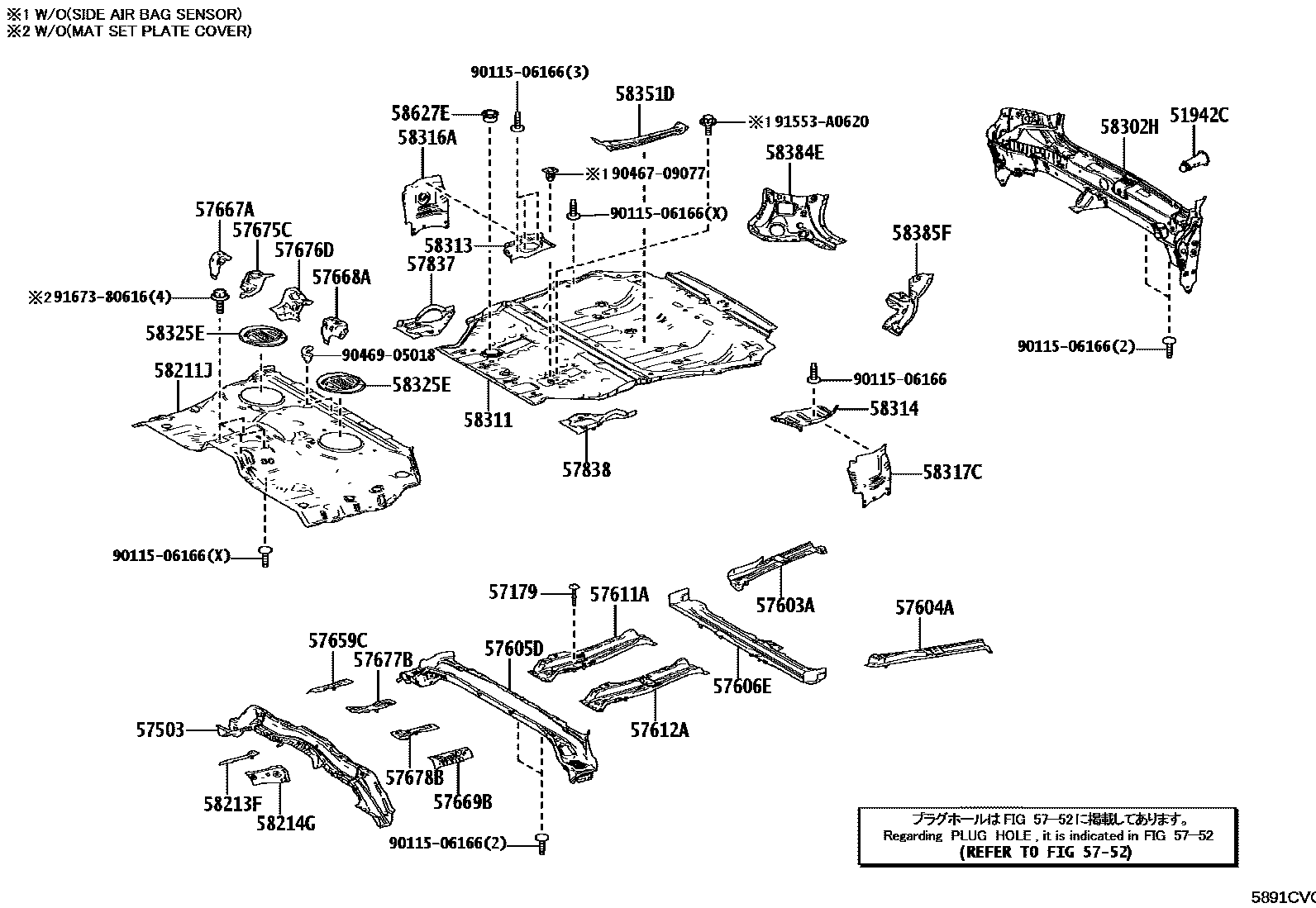

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51942CGUIDE, SPARE WHEEL CRANK HANDLE

main51942-60080iGDJ250..RHD..EUR202401-202509

57179BOLT, FLOOR CROSSMEMBER

main57179-60030iGDJ250..RHD..EUR202401-202509

57503BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER

main57503-60020iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

5752HOLE PLUG

→ Go to FIG 57-52

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-60310iGDJ250..LHD..EUR;GDJ250,TJA250,TRJ250..GCC,GEN,RUS,SA202401

main57603-60320iGDJ251202408

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-60160iGDJ250..RHD..EUR202401-202509

main57604-60170iGDJ251202408

57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-60320iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60300iGDJ250..RHD..EUR202401-202509

main57606-60310iGDJ251202408

57611AMEMBER, REAR FLOOR SIDE, RH

main57601-60240iGDJ250..RHD..EUR202401-202509

main57601-60260iGDJ251202408

main57601-60250iGDJ250,TJA250..L..GCC202404

REAR SEAT-4:4 TUMBLE & 5:5 DOUBLE FLAT POWER

57612AMEMBER, REAR FLOOR SIDE, LH

main57602-60180iGDJ250..LHD..EUR;GDJ250,TJA250,TRJ250..GCC,GEN,RUS,SA202401

main57602-60190iGDJ251202408

57659CMEMBER, REAR FLOOR CROSS, NO.8

main57659-60080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-60070iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57668AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5

main57668-60040iGDJ250..RHD..EUR202401-202509

57669BMEMBER, REAR FLOOR CROSS, NO.9

main57669-60020iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57675CREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH

main57675-60100iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57676DREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH

main57676-60090iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH

main57677-60030iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH

main57678-60030iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-60050iGDJ250..RHD..EUR202401-202509

57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-60060iGDJ250..RHD..EUR202401-202509

58211JPAN, CENTER FLOOR

main58211-60190iGDJ250..RHD..L..EUR202404-202509

main58211-60200iGDJ250,TJA250..L..RUS;GDJ250..LHD..(A,R,U)..EUR;GDJ25#,TJA250,TRJ250..(A,R,U)..(ARL,GCC,GEN,RUS,SA)202401

58213FREINFORCEMENT, CENTER FLOOR PANEL

main58213-60060iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

58214GREINFORCEMENT, CENTER FLOOR PANEL, LH

main58214-60010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

58302HPANEL SUB-ASSY, LOWER BACK

main58302-60630iGDJ250,TJA250,TRJ250202401-202408

main58302-60631iGDJ250..RHD..EUR202409-202509

main58302-60640iGDJ251202408-202409

main58302-60641iGDJ251202409

58311PAN, REAR FLOOR

main58311-60E90supersedes 58311-60F10iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

main58311-60F10supersedes 58311-60E90iGDJ250..LHD..(A,R,U)..EUR;GDJ250,TJA250,TRJ250..(A,R,U)..(GCC,GEN,RUS,SA)202401

main58311-60F30iGDJ251202408

main58311-60F00iGDJ250,TJA250..L..GCC202404

REAR SEAT-4:4 TUMBLE & 5:5 DOUBLE FLAT POWER

58313PANEL, REAR FLOOR SIDE, RH

main58313-60270iGDJ250..LHD..EUR;GDJ250,TJA250,TRJ250..GCC,GEN,RUS,SA202401

main58313-60280iGDJ251202408

58314PANEL, REAR FLOOR SIDE, LH

main58314-60160iGDJ250..RHD..EUR202401-202509

main58314-60170iGDJ251202408

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-60090iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-60080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-60100×2iGDJ250..RHD..EUR202401-202509

58351DREINFORCEMENT, REAR FLOOR PANEL

main57642-60030iGDJ250..RHD..EUR202401-202509

58384EGUSSET, LOWER BACK PANEL, NO.1 RH

main58384-60150iGDJ250..RHD..EUR202401-202509

58385FGUSSET, LOWER BACK PANEL, NO.1 LH

main58385-60160iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

58627ECOVER, REAR FLOOR SIDE MEMBER, RH

main57627-60010iGDJ250..RHD..EUR202401-202509

9011506166

main90115-06166

9046709077

main90467-09077

9046905018

main90469-05018

91553A0620

main91553-A0620

9167380616

main91673-80616

39 parts on this diagram · 2 diagrams in section
