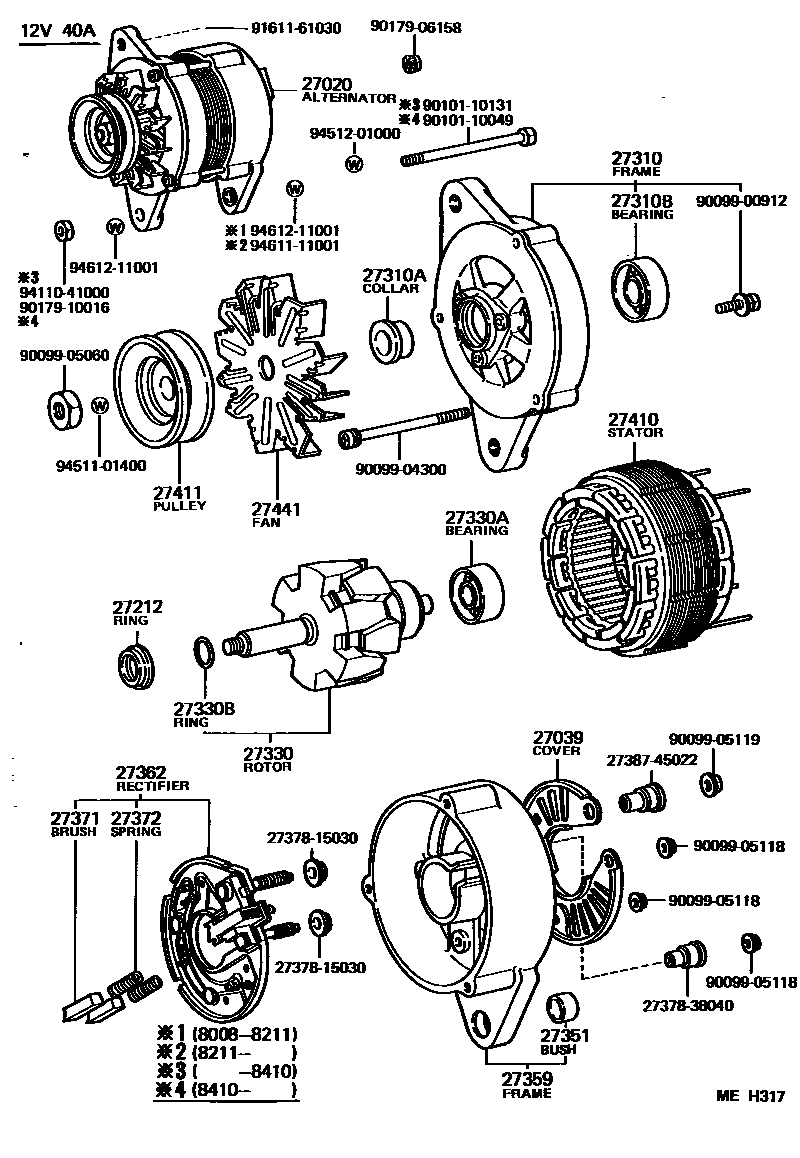

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

27020ALTERNATOR ASSY

main27020-56100i3B..BJ42,45,46..EUR; B,3B..BJ40,42,43..GEN198210-198410

24V 25A,24V 20A

main27020-56140iB,3B..BJ4#..ARL,GEN198204-198410

12V 40A,12V 40A

main27020-56150i3B..BJ45..EUR; B,3B..BJ40,42,43,46..LHD; B..BJ40..RHD..VKC198309-198410

24V 20A,W/POWER STEERING

main27020-56160iB,3B..BJ40,42,43,45..LHD..GEN; B,3B..BJ40,45..RHD..VKC198210-198309

12V 40A,12V 40A,W/POWER STEERING

main27020-56200i3B..BJ42..ARL198110-198204

12V 40A,W/POWER STEERING

main27020-57061iB,3B..BJ4#..ARL,GEN198008-198204

12V 40A

main27020-57091iB,3B..BJ4#..EUR,GEN198008-198204

24V 20A

main27020-61033i2F..FJ4#..EUR,GEN198008-198604

12V 50A,12V 50A

main27020-61150i2F..FJ4#198008-198604

12V 40A,12V 40A

main27020-61160i2F..FJ40..ARL198401-198410

12V 40A,VICTORIA SPEC

main27020-68010i2H..HJ47198008-198204

12V 40A

main27020-68011i2H..HJ47198204-198210

12V 40A

main27020-68100i2H..HJ47..GEN198404-198506

12V 40A,12V 40A

main27020-68120i2H..HJ47..ARL198404-198410

12V 55A,12V 55A

main27060-61050i2F..FJ40,45198404-198410

12V 80A

main27060-61060i2F..FJ40198404-198410

12V 65A,12V 65A

27039COVER, ALTERNATOR REAR END

main27039-18011i2F..FJ4#198008-198604

12V 40A

main27039-45110i2F..FJ4#..EUR,GEN198008-198604

12V 50A

main27039-56090i2H..HJ47198008-198210

12V 40A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i2F..FJ4#198008-198604

12V 40A,80A

main27333-57060iB,3B,2H..BJ4#,HJ47198204-198506

12V 40A,55A,24V 20A

main27412-45070i2F..FJ4#..EUR,GEN198008-198510

12V 50A,65A

main27412-54040iB,3B,2H..BJ4#,HJ47198008-198204

12V 40A,24V 20A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15030i2F..FJ40..ARL198401-198410

12V 40A,VICTORIA SPEC

main27310-18010i2F..FJ4#198008-198604

12V 40A

main27310-26101i2F..FJ4#..EUR,GEN198008-198604

12V 50A

main27310-38061i2F..FJ40198404-198410

12V 65A

main27310-47060i2H..HJ47198008-198109

12V 40A

main27310-56140iB,3B..BJ4#198204-198410

12V 40A,24V 20A

main27310-56160i3B..BJ42,45..LHD..GEN; 3B..BJ45..EUR; 3B..BJ45..RHD..VKC; B,3B..BJ40,42,43,46..LHD; B..BJ40..RHD..VKC198309-198410

12V 40A,W/POWER STEERING; 24V 20A,W/POWER STEERING

main27310-56180i2H..HJ47..ARL198404-198410

12V 55A

main27310-57061iB,3B..BJ4#198008-198204

12V 40A,24V 20A

main27310-68010i2H..HJ47198109-198210

12V 40A

main27310-72070i2F..FJ40,45198404-198410

12V 80A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2F..FJ4#198008-198604

12V 40A,50A,65A

main27412-45012i2F..FJ40,45198404-198410

12V 80A

main27412-57060iB,3B..BJ4#198204-198410

12V 40A,24V 20A

main90099-19251i2H..HJ47198008-198210

12V 40A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10110i2F..FJ40,45198404-198410

12V 80A

main90099-10120iB,3B,2H..BJ4#,HJ47198008-198204

12V 40A,24V 20A

main90099-10125i2F..FJ40198404-198410

12V 65A

main90099-10126i2F..FJ4#198008-198604

12V 40A,50A

main90099-10137iB,3B,2H..BJ4#,HJ47198204-198506

12V 40A,55A,24V 20A

27330ROTOR ASSY, ALTERNATOR

main27330-26050i2F..FJ4#198008-198604

12V 40A

main27330-43040i2F..FJ40198404-198410

12V 65A

main27330-45070i2F..FJ4#..EUR,GEN198008-198604

12V 50A

main27330-54040i2H..HJ47198008-198210

12V 40A

main27330-54050iB,3B..BJ4#..EUR,GEN198008-198204

24V 20A

main27330-56100iB,3B..BJ4#..EUR,GEN198204-198410

24V 20A

main27330-56140iB,3B..BJ4#..ARL,GEN198204-198410

12V 40A

main27330-64010i2H..HJ47..ARL198404-198410

12V 55A

main27330-72070i2F..FJ40,45198404-198410

12V 80A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i2F..FJ4#198008-198604

12V 40A,50A

main90099-10116i2F..FJ40,45198404-198410

12V 80A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i2F..FJ4#198008-198604

12V 40A,80A

main90099-07103iB,3B,2H..BJ4#,HJ47198204-198506

12V 40A,55A,24V 20A

main90099-07108iB,3B,2H..BJ4#,HJ47198008-198204

12V 40A,24V 20A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2F..FJ4#198008-198604

12V 40A,50A,65A,80A

main27351-56013iB,3B,2H..BJ4#,HJ47198008-198506

12V 40A,55A,24V 20A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i2F..FJ4#198008-198604

12V 40A

main27359-24100i2F..FJ4#..EUR,GEN198008-198604

12V 50A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i2F..FJ4#..EUR,GEN198008-198604

12V 50A

main27362-15030i2F..FJ4#198008-198604

12V 40A

main27362-72070i2F..FJ40,45198404-198410

12V 80A

main27362-72080i2F..FJ40198404-198410

12V 65A

27371BRUSH, ALTERNATOR

main27371-31011×2i2F..FJ4#198008-198604

12V 40A,50A,65A,80A

main27371-56070×2iB,3B,2H..BJ4#,HJ47198008-198506

12V 40A,55A,24V 20A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i2F..FJ4#198008-198604

12V 40A,50A,65A,80A

main27372-56070×2iB,3B,2H..BJ4#,HJ47198008-198506

12V 40A,55A,24V 20A

27410STATOR ASSY, ALTERNATOR

main27410-15030i2F..FJ4#198008-198604

12V 40A

main27410-41080i2F..FJ4#..EUR,GEN198008-198604

12V 50A

main27410-43040i2F..FJ40198404-198410

12V 65A

main27410-54020i2H..HJ47198008-198210

12V 40A

main27410-54030iB,3B..BJ4#..EUR,GEN198008-198204

24V 20A

main27410-57060i2H..HJ47..GEN198404-198506

12V 40A

main27410-57090iB,3B..BJ4#..EUR,GEN198204-198410

24V 20A

main27410-64010i2H..HJ47..ARL198404-198410

12V 55A

main27410-72070i2F..FJ40,45198404-198410

12V 80A

27411PULLEY, ALTERNATOR

main27411-47060i2H..HJ47198008-198204

12V 40A

main27411-57060iB,3B..BJ4#198204-198410

12V 40A,24V 20A

main27411-57061iB,3B..BJ4#198008-198204

12V 40A,24V 20A

main27411-60032i2F..FJ4#198008-198604

12V 40A,50A

main27411-61190i2F..FJ40,45198404-198410

12V 65A,80A

main27411-68041i2H..HJ47198210-198506

12V 40A,55A

main27411-68070i2H..HJ47198204-198210

12V 40A

27441FAN, ALTERNATOR

main27441-34030i2F..FJ4#198008-198604

12V 40A,50A

main27441-34111i2F..FJ40198404-198410

12V 65A

main27441-45050i2F..FJ40,45198404-198410

12V 80A

main27441-54040i2H..HJ47198204-198210

12V 40A

main27441-56090iB,3B..BJ4#198204-198410

12V 40A,24V 20A

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9010110131

main90101-10131

9017906158

main90179-06158

9017910016

main90179-10016

9161161030

main91611-61030

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461111001

main94611-11001

9461211001

main94612-11001

35 parts on this diagram · 7 diagrams in section
