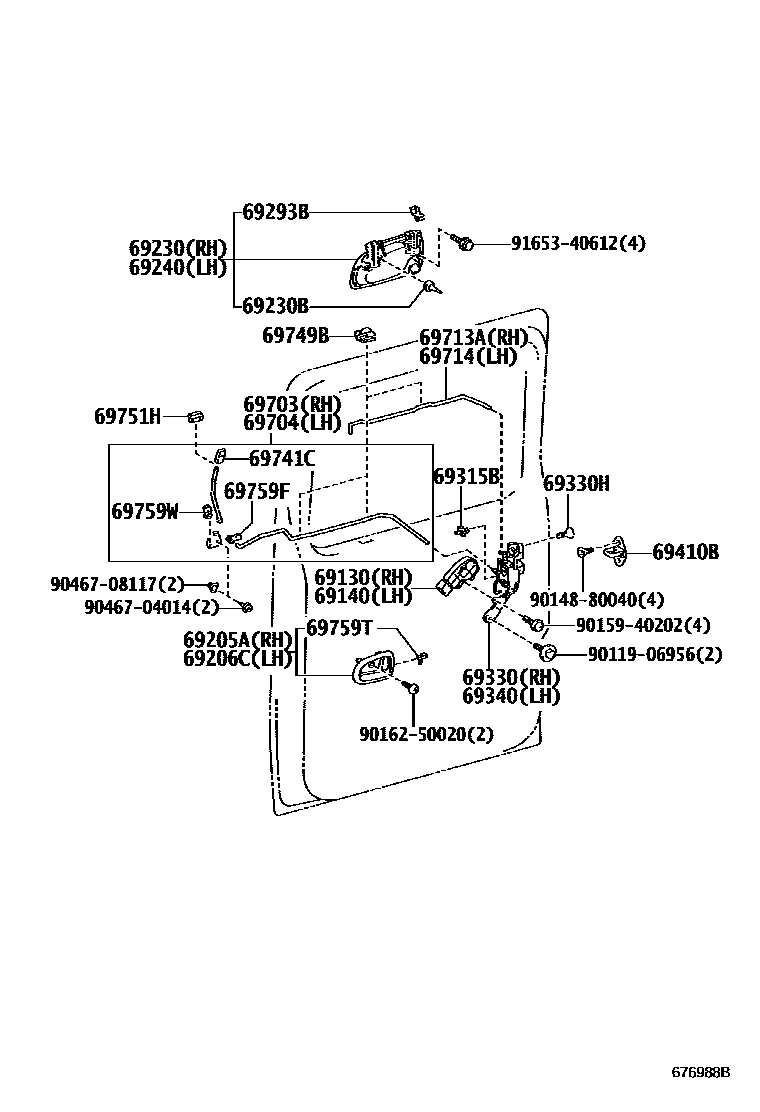

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
POWER WINDOW-WITH(FRONT & REAR); POWER WINDOW-WITH(FRONT ONLY)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
POWER WINDOW-WITH(FRONT & REAR); POWER WINDOW-WITH(FRONT ONLY)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
GRAY,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69315BRETAINER, REAR DOOR LOCK SOLENOID
69330LOCK ASSY, REAR DOOR, RH
69330HSCREW(REAR DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
BLACK,TRIM1#
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
BLACK,TRIM1#
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69741CKNOB, REAR DOOR LOCK CONTROL
BLACK,TRIM1#
69749BCLAMP, REAR DOOR LOCK LINK
69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB
BLACK,TRIM1#
69759FSNAP, REAR DOOR LOCK CONTROL LINK
RH
LH
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
69759WSNAP, REAR DOOR LOCK CONTROL LINK
LH
RH
9011906956
main90119-06956
9014880040
main90148-80040
9015940202
main90159-40202
9016250020
main90162-50020
9046704014
main90467-04014
9046708117
main90467-08117
9165340612
main91653-40612
30 parts on this diagram · 1 diagram in section
