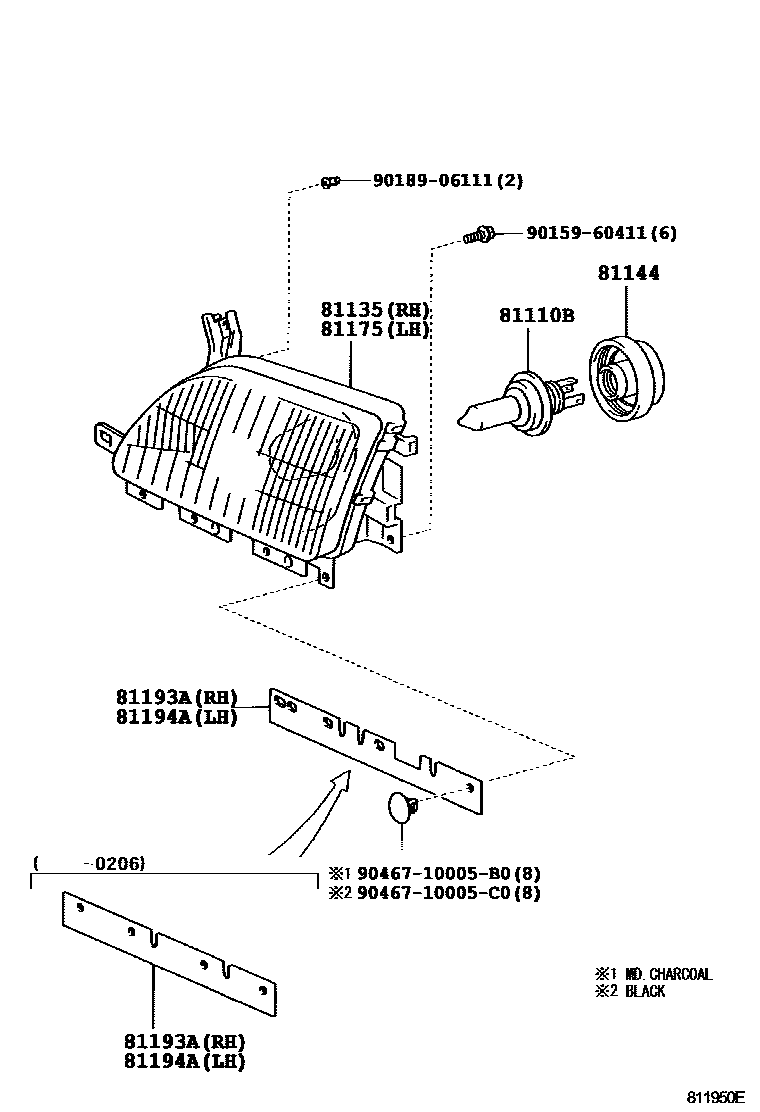

HEADLAMP

0001 1 0003 1W(HEADLAMP LEVELING) 0004 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019×2iXZU415,425,435200110-200708

24V 75/70W,*HAL *WH

81135UNIT ASSY, HEADLAMP, RH

main81130-37110iXZU404,414,424..GEN200110-200212

main81130-37120iWU410,XZU412,414,422,424..LHD..5F200212-200610

main81130-37180iWU410,XZU412,422..GCC200212-200610

W(HEADLAMP LEVELING)

main81130-37181iWU41#,422..GCC201002-201106

W(HEADLAMP LEVELING)

main81130-37210iWU410,XZU412,422..RHD..GEN200212-200412

main81130-37211iWU410..RHD..GEN200610-201106

main81130-37230iXZU404,414,424..RHD;WU410,420,XZU420,43#..ARL,SA200212-200412

main81130-37231iXZU404,414,424,434..RHD200501-200610

main81130-37240iWU412,422..75T..GEN200610-201002

ALGERIA SPEC

main81130-37241iWU412,422..75T..GEN201002-201106

ALGERIA SPEC

main81130-37340iXZU415,417,419,425,427,429,435,439..DCRTK200701-201002

main81130-37341iXZU419,429,439201002-201208

81144COVER, HEADLAMP, NO.1

main81139-37110×2iBU410,420200110-200701

81175UNIT ASSY, HEADLAMP, LH

main81170-37111iXZU404,414,424..GEN200110-200212

main81170-37121iWU410,XZU412,414,422,424..LHD..5F200212-200610

main81170-37180iWU410,XZU412,422..GCC200212-200610

W(HEADLAMP LEVELING)

main81170-37181iWU41#,422..GCC201002-201106

W(HEADLAMP LEVELING)

main81170-37210iWU410,XZU412,422..RHD..GEN200212-200501

main81170-37211iWU410..RHD..GEN200610-201106

main81170-37230iXZU404,414,424..RHD;WU410,420,XZU420,43#..ARL,SA200212-200412

main81170-37231iXZU404,414,424,434..RHD200501-200610

main81170-37240iWU412,422..75T..GEN200610-201002

ALGERIA SPEC

main81170-37241iWU412,422..75T..GEN201002-201106

ALGERIA SPEC

main81170-37340iXZU415,417,419,425,427,429,435,439..DCRTK200701-201002

main81170-37341iXZU419,429,439201002-201208

81193APROTECTOR, HEADLAMP, RH

main81193-37011iXZU404,414,424..GEN200110-200206

main81193-37030iXZU414,424,434..EUR200110-200206

main81193-37040iWU410,420,XZU404,41#,42#,43#..RHD200212-200505

main81193-37050iWU410,XZU412,414,422,424..LHD..5F200206-200610

main81193-37060iWU410,420,XZU420,430..SA200506-200802

81194APROTECTOR, HEADLAMP, LH

main81193-37040iWU410,420,XZU404,41#,42#,43#..RHD200212-200505

main81193-37050iXZU404,414,424..GEN200206-200212

main81193-37060iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main81194-37012iXZU404,414,424..GEN200110-200206

main81194-37030iXZU414,424,434..EUR200110-200206

9015960411

main90159-60411

9018906111

main90189-06111

9046710005B0

main90467-10005B0

9046710005C0

main90467-10005C0

10 parts on this diagram · 3 diagrams in section
