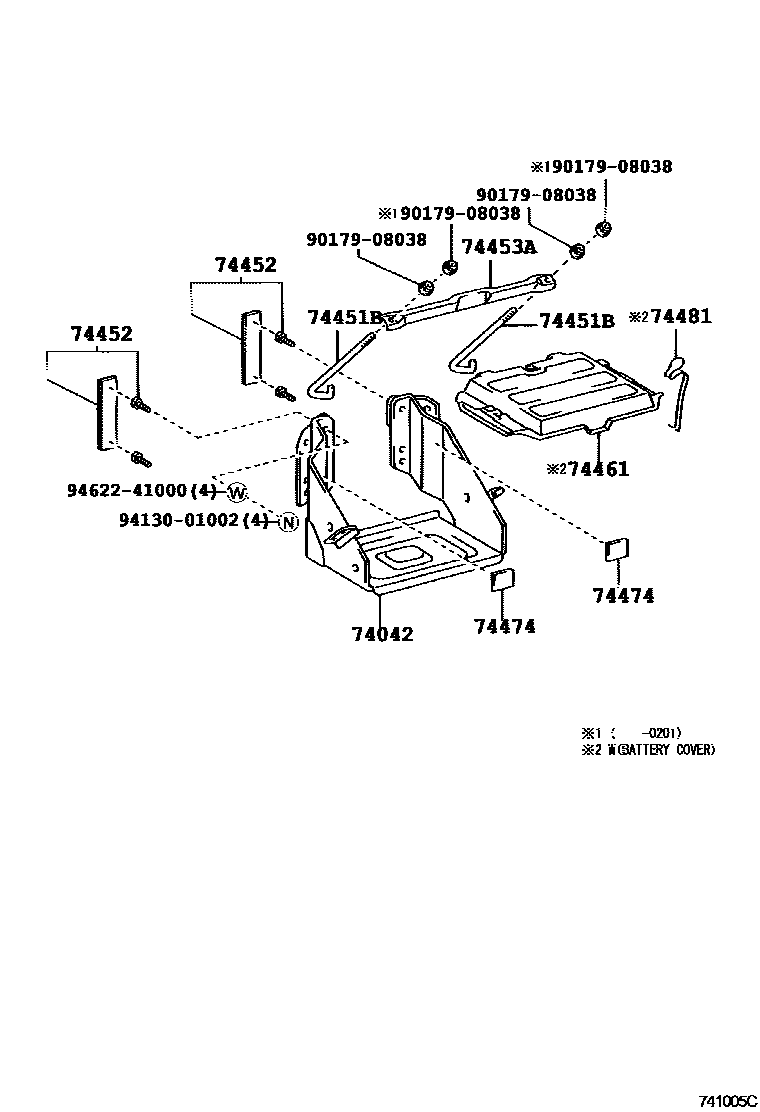

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-37040iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

BATTERY=55D

main74042-37050iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,419,423,427,429,433,439200610-201208

BATTERY=95D

74451BBOLT, BATTERY CLAMP

main74451-37010×2iXZU404,414,424,434200110-200201

BATTERY=55D

main74451-37011×2iXZU415,425,435200201-200708

BATTERY=55D

main74451-37020×2iXZU404,414,424..GEN200110-200201

BATTERY=95D

main74451-37021×2iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200201-200610

BATTERY=95D

74452PLATE, BATTERY SET

main74452-37020×2iXZU414,424,434..EUR200110-200608

74453ABAR, BATTERY SET PLATE

main74453-36070iXZU414,424,434..EUR200110-200608

74461COVER, BATTERY

main74461-37020iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

BATTERY=55D

main74461-37030iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,419,423,427,429,433,439200610-201208

BATTERY=95D

74474PAD, BATTERY

main74475-36040×2iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

74481CLAMP, BATTERY HOLD DOWN

main74481-36030×2iXZU414,424,434..EUR200110-200608

9017908038

main90179-08038

9413001002

main94130-01002

9462241000

main94622-41000

10 parts on this diagram · 1 diagram in section
