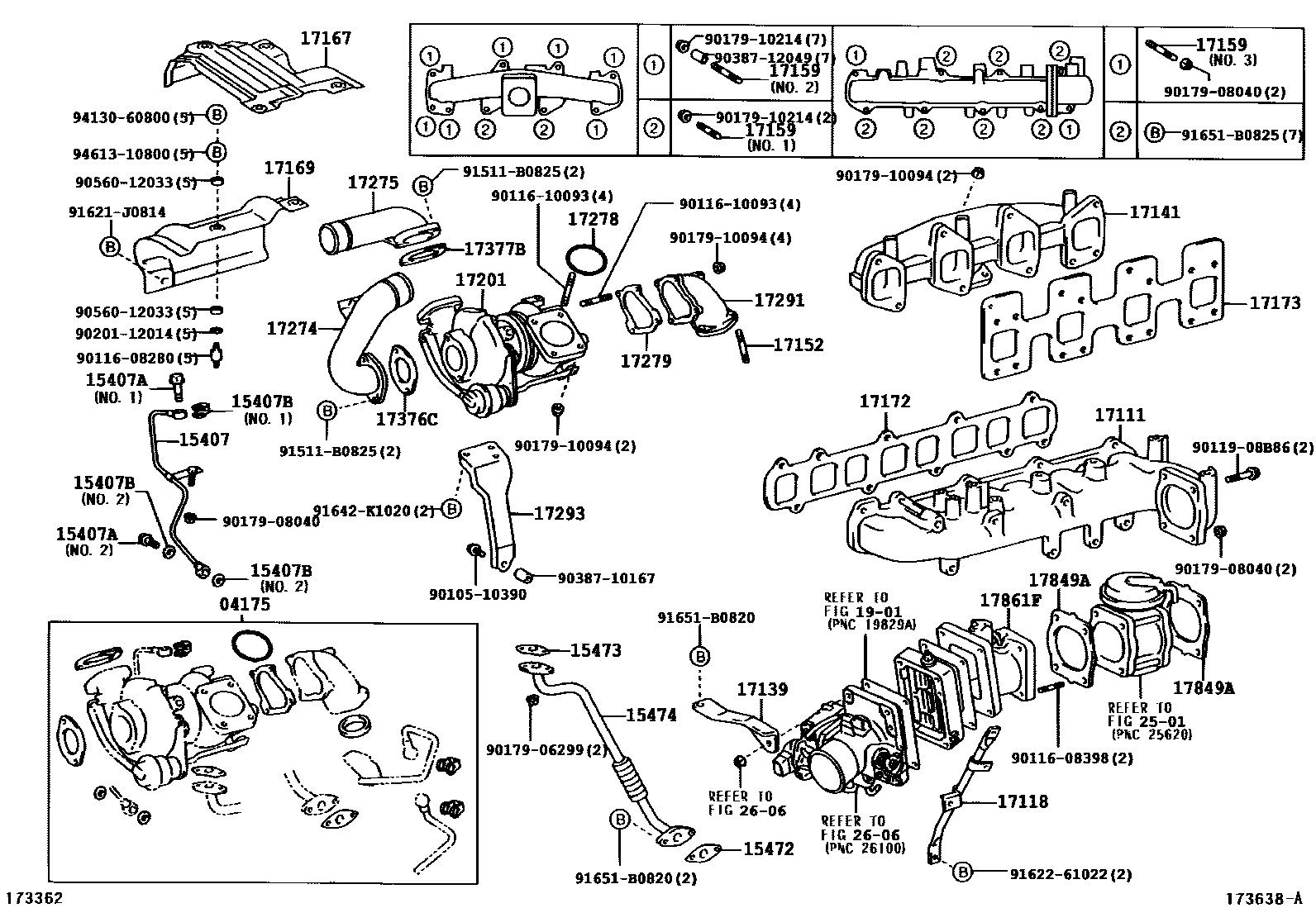

MANIFOLD
04175GASKET KIT, TURBOCHARGER
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
NO.1
NO.2
NO.1
NO.2
15407BGASKET(FOR TURBO OIL INLET PIPE)
NO.1
NO.2
NO.2
NO.2
NO.1
15472GASKET, TURBO OIL OUTLET, NO.1
15473GASKET, TURBO OIL OUTLET, NO.2
15474PIPE, TURBO OIL OUTLET
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.1
NO.2
NO.1
NO.1
NO.2
NO.3
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17172GASKET, MANIFOLD TO CYLINDER HEAD
17173GASKET, EXHAUST MANIFOLD TO HEAD
NO.2
NO.1
17201TURBOCHARGER SUB-ASSY
17274ELBOW, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17291ELBOW, TURBINE OUTLET
17293STAY, TURBOCHARGER
17376CGASKET, AIR TUBE
17377BGASKET, AIR TUBE, NO.2
17849AGASKET, INTAKE AIR CONNECTOR
17861FCONNECTOR, INTAKE AIR
1901IGNITION COIL & SPARK PLUG / GLOW PLUG
2501EXHAUST GAS RECIRCULATION SYSTEM
2606VENTURI
9010510390
main90105-10390
9011608280
main90116-08280
9011608398
main90116-08398
9011610093
main90116-10093
9011908B86
main90119-08B86
9017906299
main90179-06299
9017908040
main90179-08040
9017910094
main90179-10094
9017910214
main90179-10214
9020112014
main90201-12014
9038710167
main90387-10167
9038712049
main90387-12049
9056012033
main90560-12033
91511B0825
main91511-B0825
91621J0814
main91621-J0814
9162261022
main91622-61022
91642K1020
main91642-K1020
91651B0820
main91651-B0820
91651B0825
main91651-B0825
9413060800
main94130-60800
9461310800
main94613-10800
52 parts on this diagram · 13 diagrams in section
