V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02131i1W..WU9#198409-198708

main99331-10870i22R..RU75,85198409-198708

main99364-50830i3Y,4Y..YU6#,7#,8#198409-198708

44310ABELT, V(FOR VANE PUMP)

main99342-01095iRU75,85..GEN198409-198708

main99342-01115iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00890iRU75,85198409-198708

main99322-00910iYU6#,70,80..ARL,GEN,SA198409-198608

main99322-01060iWU9#..ARL,GEN198409-198708

L=1060

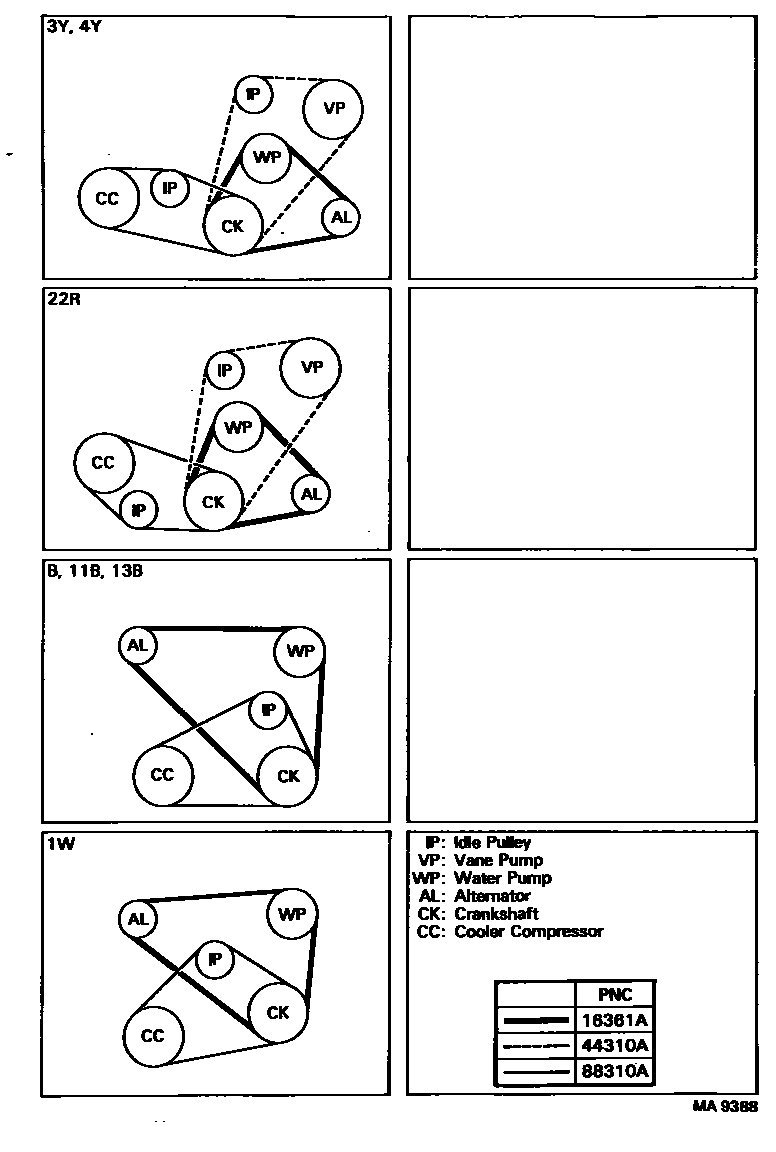

3 parts on this diagram · 1 diagram in section
