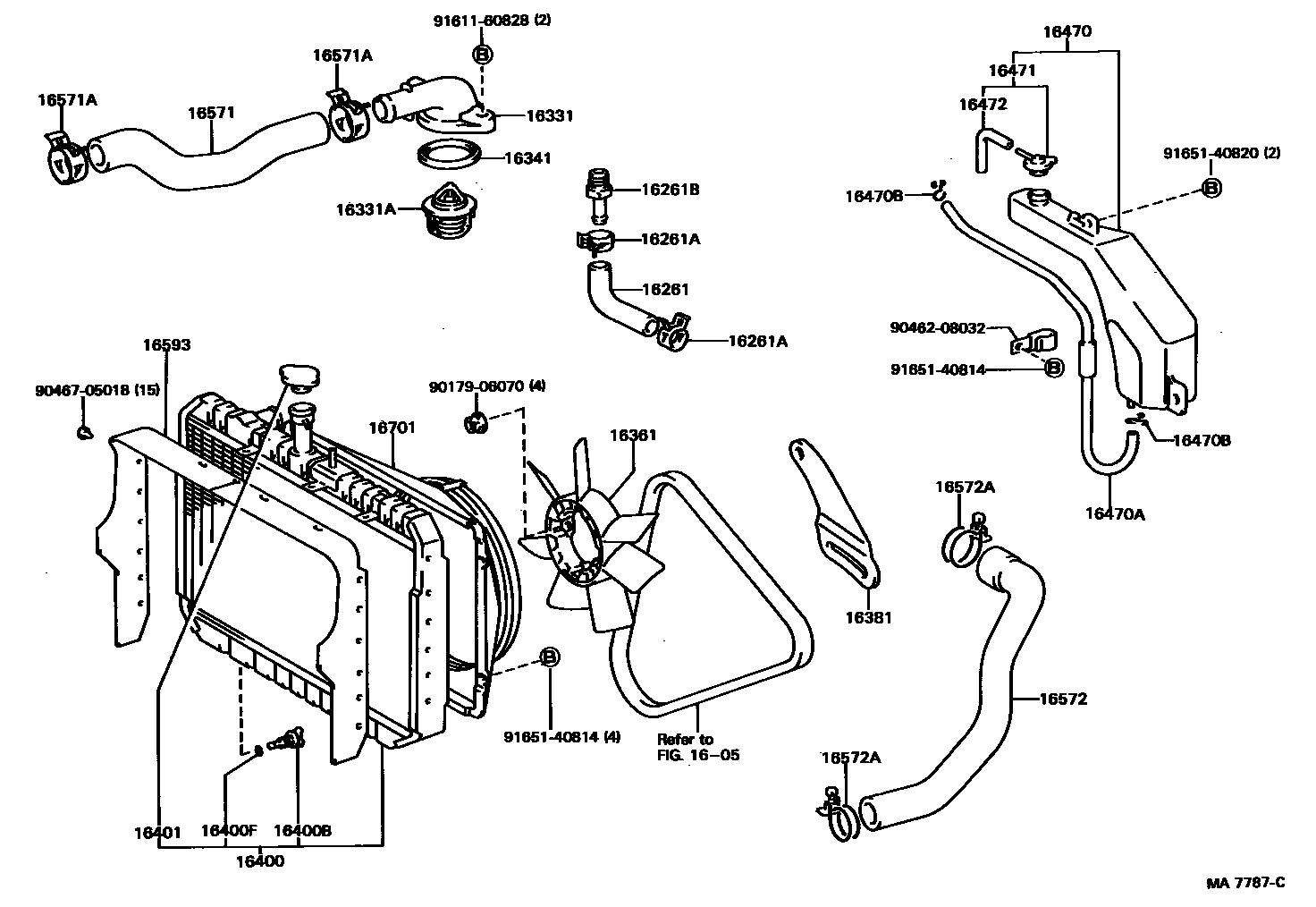

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-35050i22R..RU75,85198409-198708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-20005i22R..RU75,85198409-198708

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53040i22R..RU75,85198409-198708

16331OUTLET, WATER

main16331-35050i22R..RU75,85198409-198708

main16331-71010i3Y,4Y..YU6#,7#,8#198409-198708

main16331-78010i1W..WU9#198409-198708

16331ATHERMOSTAT

main90916-03046i3Y,4Y..YU6#,70,80198409-198502

*WAX 82-95

main90916-03054i22R..RU75,85198409-198708

*WAX 82-95,*WAX 82-95

main90916-03067i1W..WU9#198409-198608

*WAX 82-95,*WAX 82-95

main90916-03069i3Y,4Y..YU6#,7#,8#198502-198708

*WAX 82-95

main90916-03076i1W..WU9#198608-198708

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-35010i22R..RU75,85198409-198708

main16341-71010i3Y,4Y..YU6#,7#,8#198409-198708

16361FAN

main16361-38010i22R..RU75,85198409-198608

7 BLADES,OD=380

main16361-38010i4Y..YU81..LHD198609-198708

SWITZERLAND SPEC

main16361-44032i3Y,4Y..YU6#,7#,8#..ARL,GEN,SA198409-198708

main16361-60090i1W..WU9#..SA198409-198708

main16361-78010i1W..WU90..ARL198409-198708

main16361-78020i1W..WU9#..GEN198409-198708

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RU75,85198409-198708

main16381-71010i3Y,4Y..YU6#,7#,8#198409-198708

main16381-78020i1W..WU9#198409-198708

16400RADIATOR ASSY

main16400-35180i22R..RU75,85198409-198708

main16400-58110i1W..WU90..ARL198409-198708

main16400-58120i1W..WU9#..GEN198409-198608

main16400-58121i1W..WU9#..GEN198608-198708

main16400-73090i3Y,4Y..YU60,80..RHD198409-198504

main16400-73091i3Y,4Y..YU60,62,81..RHD198504-198708

main16400-73100i3Y,4Y..YU6#,70,80..LHD198409-198504

main16400-73101i3Y,4Y..YU6#,7#,8#..LHD198504-198708

main16400-78020i1W..WU9#..SA198409-198708

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i22R..RU75,85..GEN198409-198708

main16417-58090i3Y,4Y..YU6#,7#,8#198409-198708

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i3Y,4Y..YU6#,7#,8#198409-198708

16401CAP SUB-ASSY, RADIATOR

main16401-71010i22R..RU75,85198409-198708

16470TANK ASSY, RADIATOR RESERVE

main16470-56120i3Y,4Y..YU6#,8#..L1,L2,T1,T3198409-198704

main16470-56121i4Y..YU6#,81..L1,L2,T3198704-198708

main16470-56130i3Y,4Y..YU7#;3Y,4Y..YU60,62..TW1198409-198708

main16470-58020i1W..WU9#198409-198708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12143i1W..WU9#198409-198708

L=620

main90445-12148i3Y,4Y..YU6#,80..LHD..(L1,L2,T1,T3)198409-198510

main90445-12149i3Y,4Y..YU60,80..RHD198409-198510

main90445-12191i3Y,4Y..YU6#,7#,8#..LHD198510-198708

RADIATOR TO 2WAY

main90445-12192i3Y,4Y..YU60,62,8#..RHD198510-198708

RADIATOR TO 2WAY

main90447-12055i3Y..YU70;3Y..YU60..TW1198409-198510

main90447-12067i3Y,4Y..YU6#,8#..L1,L2,T1,T3198510-198708

2WAY TO RESERVE TANK

main90447-12068i3Y,4Y..YU7#;3Y,4Y..YU60,62..TW1198510-198708

2WAY TO RESERVE TANK

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i22R..RU75,85198409-198708

16471CAP SUB-ASSY, RESERVE TANK

main16405-56050i3Y,4Y..YU6#,80..L2,T1,T3198409-198504

main16405-56051i3Y,4Y..YU6#,8#..L1,L2,T1,T3198504-198704

main16405-56052i4Y..YU6#,81..L1,L2,T3198704-198708

main16405-56060i3Y,4Y..YU7#;3Y,4Y..YU60,62..TW1198409-198708

main16405-56070i1W..WU9#198409-198708

16472HOSE, BREATHER

main16472-56110i3Y,4Y..YU6#,80..L2,T1,T3198409-198504

main16472-56130i3Y,4Y..YU7#;3Y,4Y..YU60,62..TW1198409-198708

main85338-22020i1W..WU9#198409-198708

main85338-56110i3Y,4Y..YU6#,8#..L1,L2,T1,T3198504-198708

16571HOSE, RADIATOR, INLET

main16571-35090i22R..RU75,85198409-198708

main16571-73040i3Y,4Y..YU6#,7#,8#198409-198708

main16571-78020i1W..WU9#198409-198708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i3Y,4Y..YU6#,7#,8#198409-198708

main90467-42001i1W..WU9#198409-198708

RADIATOR SIDE

main96111-10510i1W..WU9#198409-198708

WATER OUTLET SIDE

16572HOSE, RADIATOR, OUTLET

main16572-35040i22R..RU75,85198409-198708

main16572-73030i3Y,4Y..YU6#,7#,8#198409-198708

RADIATOR TO PIPE

main16572-78010i1W..WU9#198409-198511

main16572-78011i1W..WU9#198511-198708

main16573-73010i3Y,4Y..YU6#,7#,8#198409-198708

PIPE TO INLET

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-55008i1W..WU9#198511-198708

WATER PUMP SIDE

main90467-37002i3Y,4Y..YU60,61,70,80198409-198708

main96111-10450i22R..RU75,85198409-198708

RADIATOR SIDE

main96111-10490i22R..RU75,85198409-198708

ENGINE SIDE

main96111-10510i1W..WU9#198409-198708

RADIATOR SIDE

main96111-10560i1W..WU9#198409-198511

WATER PUMP SIDE

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030i3Y,4Y..YU6#,7#,8#198409-198708

main16593-58030i22R..RU75,85198409-198708

16701SHROUD SUB-ASSY, FAN

main16701-35010i22R..RU75,85198409-198708

main16701-58040i1W..WU9#198409-198708

main16701-73020i3Y,4Y..YU6#,7#,8#198409-198703

main16701-73021i4Y..YU6#,71,81198703-198708

9017906070

main90179-06070

9046208032

main90462-08032

9046705018

main90467-05018

9161160828

main91611-60828

9165140814

main91651-40814

9165140820

main91651-40820

30 parts on this diagram · 3 diagrams in section
