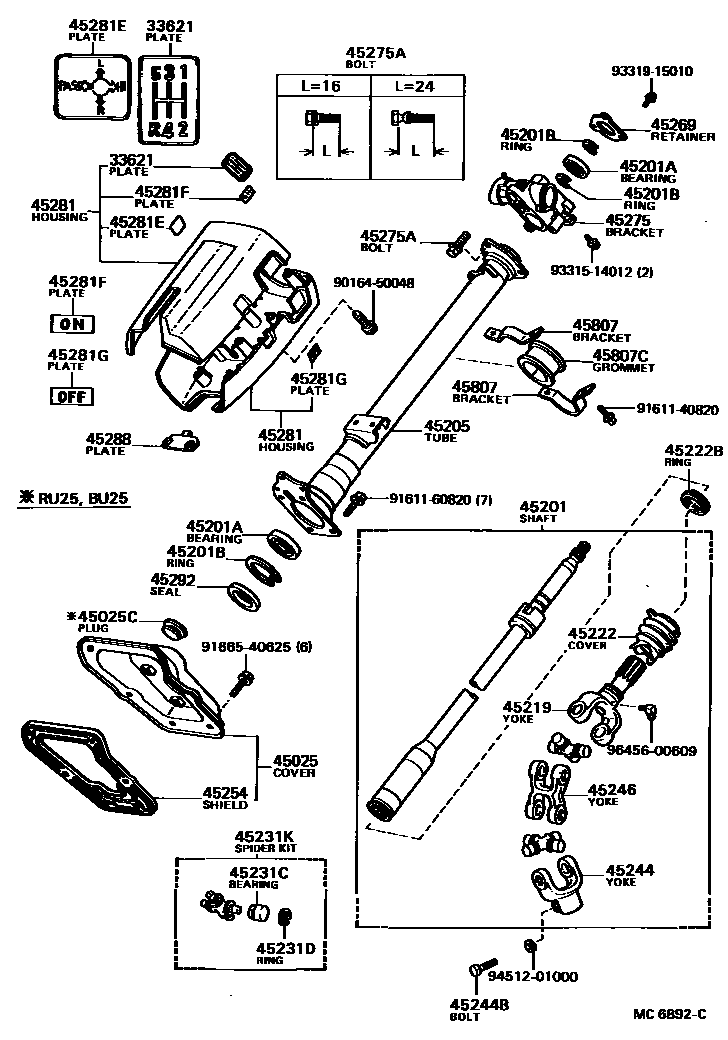

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iRU20..LHD..4H197708-198408

main33621-36020iBU20,30,32,HU30,RU2#,30..RHD..5H197708-198408

main33621-36030iBU2#,30,32,HU30,JU20,RU2#,30..LHD..5H197708-198408

main33621-36040iRU20..RHD..4H197708-198104

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-36010iBU20,30,HU30,RU20,30..RHD197708-198408

main45025-36020iRU25..RHD197803-197806

main45025-36030iBU20,30,32,36,40,HU40,50,WU40..RHD..5F198104-198411

main45025-36040iBU2#,30,32,HU30,JU20,RU2#,30..LHD..(4H,5H)197708-198408

main45025-36050iBU25,RU25..LHD..5H197803-197806

main45025-36060iBU20,30,HU30,RU20,30..5F197708-198408

main45025-36070iRU25..5F197803-197806

main45025-36100iBU40,WU40,50..LHD198302-198408

45025CPLUG, HOLE(FOR STEERING COLUMN HOLE COVER)

main90950-01242iBU25,RU25197803-198008

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-36010iBU2#,30,HU30,JU20,RU2#,30197708-198008

main45210-36011iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

UPR

main90363-35003iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=1.20,UPR BEARING,LWR

main90520-17269iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=1.20,UPR BEARING,UPR

main90521-59001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

LWR BEARING

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36101iBU20,30,32,HU30,RU2#,30..RHD..(4H,5H)197708-198408

main45205-36111iBU2#,30,32,HU30,JU20,RU2#,30..LHD..(4H,5H)197708-198408

main45205-36121iBU20,3#,40,HU30,40,50,RU2#,30,WU40,50..4F,5F197708-198411

45219YOKE, STEERING SLIDING

main45219-36011iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

45222COVER, STEERING GEAR DUST

main45222-26010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

STEERING GEAR HOUSING SIDE

main45222-36011iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

STEERING MAIN SHAFT SIDE

45222BRING, DUST COVER SET

main90522-32011iBU2#,30,HU30,JU20,RU2#,30197708-197908

45231CBEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

main37402-10020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-22011iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=1.20

main90521-22012iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=1.25

main90521-22013iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=1.30

45231KSPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

main04371-10011iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

45244YOKE, STEERING WORM

main45244-36010iBU2#,30,HU30,JU20,RU2#,30197708-198008

main45244-60020iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

45244BPIN OR BOLT(FOR STEERING WORM YOKE)

main91111-51032iBU2#,30,HU30,JU20,RU2#,30197708-198008

main91121-51032iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

45246YOKE, STEERING INTERMEDIATE

main45246-36050iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

45254SHIELD, STEERING COLUMN HOLE

main45254-36040iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

main45254-36050iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

45275BRACKET, STEERING COLUMN, UPPER

main45307-36050iBU20,30,32,40,HU30,40,50,RU2#,30..RHD197708-198209

W/*STL

main45307-36051iBU20,30,32,36,40,HU40,50,RU20,30,WU40..RHD198209-198411

W/*STL

main45307-36060iBU20,30,HU30..RHD..(GEN,GHI)197708-198209

W/O *STL

main45307-36061iHU40,50..GEN..IV3198209-198411

W/O *STL

main45307-36070iBU2#,30,32,HU30,JU20..LHD..5H197708-198209

W/O *STL

main45307-36071iBU20,25,30..LHD..5H198209-198408

W/O *STL

main45307-36080iBU2#,30,32,HU30,JU20,RU2#,30..LHD..(4H,5H)197708-198209

W/*STL

main45307-36081iBU2#,30,RU20,30..LHD..(4H,5H)198209-198408

W/*STL

main45307-36090iBU20,30,32,HU30..5F197708-198209

W/O *STL

main45307-36091iBU20,30,32,36,WU40,50..LHD..5F198209-198408

W/O *STL

main45307-36100iBU20,3#,HU30,RU2#,30..LHD..(4F,5F)197708-198209

W/*STL

main45307-36101iBU20,3#,40,RU2#,30,WU40..LHD..5F198209-198408

W/*STL

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iBU20,30,RU20,30..EUR197911-198408

L=24

main91611-40616iBU20,30,RU20,30..EUR197911-198008

L=16

main91611-40616iBU2#,30,HU30,JU20,RU2#,30197708-197911

main91611-60616iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN198008-198411

L=16

45281HOUSING, STEERING COLUMN

main45286-36110iBU20,30,HU30..RHD..GEN197708-198008

UPR,W/O *STL

main45286-36120iBU20,30,HU30,RU2#,30..RHD..5H197708-198008

UPR,W/*STL

main45286-36150iBU2#,30,HU30,JU20..LHD..5H197708-198008

UPR,W/O *STL

main45286-36160iBU2#,30,HU30,JU20,RU2#,30..LHD..5H197708-198008

UPR,W/*STL

main45286-36170iBU20,30,HU30..5F197708-198008

UPR,W/O *STL

main45286-36180iBU20,30,HU30,RU2#,30..4F,5F197708-198008

UPR,W/*STL

main45286-36200iRU20..RHD..4H197708-198008

UPR

main45286-36210iRU20..LHD..4H197708-198008

UPR

main45286-36220iBU20,30,HU30..RHD..WT..GEN197708-197907

UPR,W/*EB

main45286-36240iBU20,30..RHD..WT197904-197907

UPR,W/*EB & *STL

main45286-36280iBU20,30..RHD..(GEN,GHI)198008-198204

UPR,W/O *STL

main45286-36290iBU20,30,32,HU30,RU20,30..RHD..5H198008-198204

UPR,W/*STL

main45286-36320iBU2#,30,32,HU30..LHD..5H198008-198204

UPR,W/O *STL

main45286-36330iBU2#,30,32,HU30,RU20,30..LHD..5H198008-198204

UPR,W/*STL

main45286-36340iBU20,30,32,HU30..LHD..5F198008-198204

UPR,W/O *STL

main45286-36350iBU20,3#,HU30,RU2#,30..LHD..(4F,5F)198008-198204

UPR,W/*STL

main45286-36360iRU20..RHD..4H198008-198104

UPR

main45286-36370iRU20..LHD..4H198008-198204

UPR

main45286-36380iBU20,30..RHD..TR..(GEN,GHI)198008-198204

UPR,W/*EB

main45286-36390iBU30..RHD..5F198104-198204

UPR,W/O *STL

main45286-36400iBU30..RHD..5F198104-198204

UPR,W/*STL

main45286-36410iBU30..RHD..5F198104-198204

UPR,W/*EB

main45286-36480iWU40,50..LHD198304-198408

UPR,W/*EB

main45286-36530iRU20,30..RHD..GEN198204-198408

UPR,W/O *STL

main45286-36540iBU20,30,32,RU20,30..RHD..5H198204-198408

UPR,W/*STL

main45286-36560iBU20,25,30..LHD..5H198204-198408

UPR,W/O *STL

main45286-36570iBU2#,30,RU20,30..LHD..5H198204-198408

UPR,W/*STL

main45286-36580iBU20,30,32,WU40,50..LHD..5F198204-198408

UPR,W/O *STL

main45286-36590iBU20,30,31,32,40,RU2#,30,WU40..LHD..5F198204-198408

UPR,W/*STL

main45286-36600iRU20..4H198204-198408

UPR

main45286-36610iRU20,30..RHD..WT..GEN198204-198408

UPR,W/*EB

main45286-36620iHU40,50..GEN..IV3198302-198408

UPR,W/O *SL

main45286-36620iBU20,30,36,WU40..RHD..5F..(GEN,GHI)198204-198411

UPR

main45286-36630iBU20,RU20,30..RHD..5F198204-198411

UPR,W/*STL

main45286-36640iBU30,36,40,HU40,50,WU40..RHD..5F198204-198411

UPR,W/*EB

main45286-36650iWU40..RHD198304-198408

UPR,W/*EB

main45286-36650iHU40,50..GEN..IV3198302-198408

UPR,W/O *STL,W/*EB

main45286-36660iBU36,40..LHD198302-198408

UPR,W/*EB

main45287-36070iBU20,30,HU30,RU2#,30..RHD197708-198008

LWR

main45287-36080iBU20,30,HU30..RHD..WT..GEN197708-197907

LWR,W/*EB

main45287-36090iBU2#,30,HU30,JU20,RU2#,30..LHD..(4H,5H)197708-198008

LWR

main45287-36100iBU20,30,HU30,RU2#,30..4F,5F197708-198008

LWR

main45287-36120iBU20,30,32,HU30,RU20,30..RHD198008-198204

LWR

main45287-36130iBU20,30..RHD..TR..(GEN,GHI)198008-198204

LWR,W/*EB

main45287-36140iBU2#,30,32,HU30,RU20,30..LHD..(4H,5H)198008-198204

LWR

main45287-36150iBU20,3#,HU30,RU2#,30..4F,5F198008-198204

LWR

main45287-36220iBU20,30,32,36,40,HU40,50,RU20,30,WU40..RHD198204-198411

LWR

main45287-36230iBU20,30,36,40,HU40,50,WU40..RHD..TR..(GEN,GHI)198204-198411

LWR,W/*EB

main45287-36240iBU2#,30,RU20,30..LHD..(4H,5H)198204-198408

LWR

main45287-36250iBU20,3#,40,RU2#,30,WU40,50..LHD..5F198204-198408

LWR,W/*STL

main45287-36260iBU36,40,WU40,50..LHD198302-198408

LWR

45281EPLATE, SAFETY CAUTION

main45283-22010iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

main45283-22020iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

45281FPLATE, EXHAUST BRAKE CAUTION, NO.1

main17479-47010iBU20,30,HU30..RHD..WT..GEN197708-198411

45281GPLATE, EXHAUST BRAKE CAUTION, NO.2

main17479-47010iBU20,30,HU30..RHD..WT..GEN197708-198411

45288PLATE, STEERING COLUMN COVER

main45288-36010iBU2#,30,HU30,JU20,RU2#,30197708-198008

main45288-36020iBU2#,3#,HU30,RU2#,30198008-198204

main45288-36040iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main55661-95406iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

UPR

main55662-95406iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

LWR

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-50002iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

9016450048

main90164-50048

9161140820

main91611-40820

9161160820

main91611-60820

9166540625

main91665-40625

9331514012

main93315-14012

9331915010

main93319-15010

9451201000

main94512-01000

9645600609

main96456-00609

36 parts on this diagram · 5 diagrams in section
