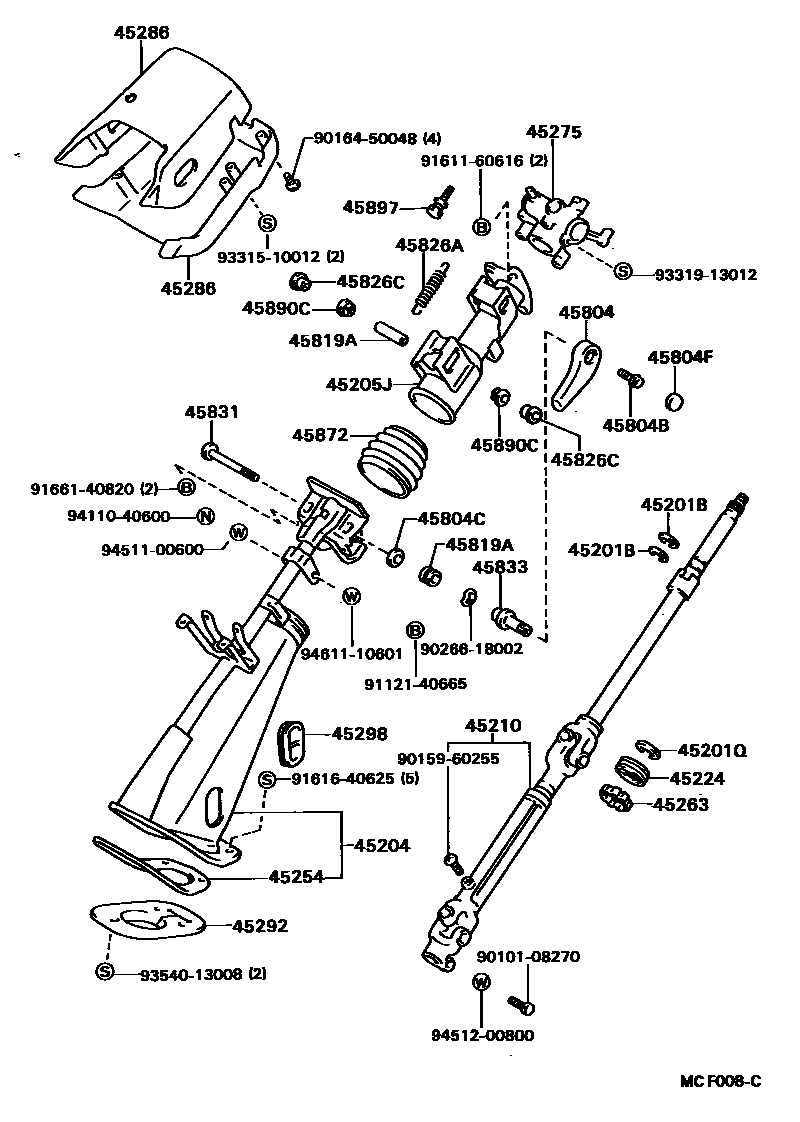

STEERING COLUMN & SHAFT

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBU7#,8#,9#198808-199505

T=1.20,LWR

main90520-17269iBU7#,8#,9#198808-199505

T=1.20,UPR

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iBU7#,8#,9#198808-199505

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36070iBU7#,88,9#198808-199309

main45204-36071iBU79,9#199309-199402

main45204-36072iBU79,92199402-199505

main45204-36102iBU89199402-199505

main45204-36111iBU84,89198808-199402

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36180iBU7#,8#,9#198808-199505

45210SHAFT ASSY, STEERING MAIN

main45210-36050iBU7#,88,9#198808-199505

main45210-36060iBU84,89198808-199505

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iBU7#,8#,9#198808-199505

L=16

45254SHIELD, STEERING COLUMN HOLE

main45254-36080iBU7#,88,9#198808-199505

main45254-36100iBU84,89198808-199505

45263RING, STEERING COLUMN, NO.1

main45263-32010iBU7#,8#,9#198808-199505

45275BRACKET, STEERING COLUMN, UPPER

main45307-36150iBU76,8#,96198808-199109

main45307-36151iBU7#,8#,9#199109-199505

45286COVER, STEERING COLUMN

main45286-36800-06iBU76,8#,96198808-199109

BROWN,TRIM4#,UPR

main45286-36800-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#,UPR

main45287-36340-06iBU76,8#,96198808-199109

BROWN,TRIM4#,LWR

main45287-36340-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#,LWR

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36040iBU7#,8#,9#198808-199505

45298PLUG, STEERING COLUMN COVER

main45298-36020iBU7#,8#,9#198808-199402

45804LEVER SUB-ASSY, STEERING TILT

main45804-36010-06iBU76,8#,96198808-199109

BROWN,TRIM4#

main45804-36010-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

45804BBOLT(FOR STEERING TILT LEVER)

main90105-10204iBU7#,8#,9#198808-199505

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10489iBU7#,8#,9#198808-199505

45804FPLUG(FOR STEERING TILT LEVER)

main90339-28001-06iBU76,8#,96198808-199109

BROWN,TRIM4#

main90339-28001-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90386-19004iBU7#,8#,9#198808-199505

L=14

main90387-06037iBU7#,8#,9#198808-199505

L=47.5

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-18018iBU7#,8#,9#198808-199505

45826CBUSH(FOR STEERING TILT LEVER)

main90386-10024iBU7#,8#,9#198808-199505

45831BOLT, TILT LEVER LOCK, NO.1

main45831-36010iBU7#,8#,9#198808-199505

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-36010iBU7#,8#,9#198808-199505

45872COVER, STEERING COLUMN TUBE

main45872-36020iBU7#,8#,9#198808-199505

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-12009iBU7#,8#,9#198808-199505

OD=20

45897BOLT, STEERING LOCK SET

main45897-12030iBU7#,88,89,9#198808-199505

9010108270

main90101-08270

9015960255

main90159-60255

9016450048

main90164-50048

9026618002

main90266-18002

9112140665

main91121-40665

9161160616

main91611-60616

9161640625

main91616-40625

9166140820

main91661-40820

9331510012

main93315-10012

9331913012

main93319-13012

9354013008

main93540-13008

9411040600

main94110-40600

9451100600

main94511-00600

9451200800

main94512-00800

9461110601

main94611-10601

39 parts on this diagram · 1 diagram in section
