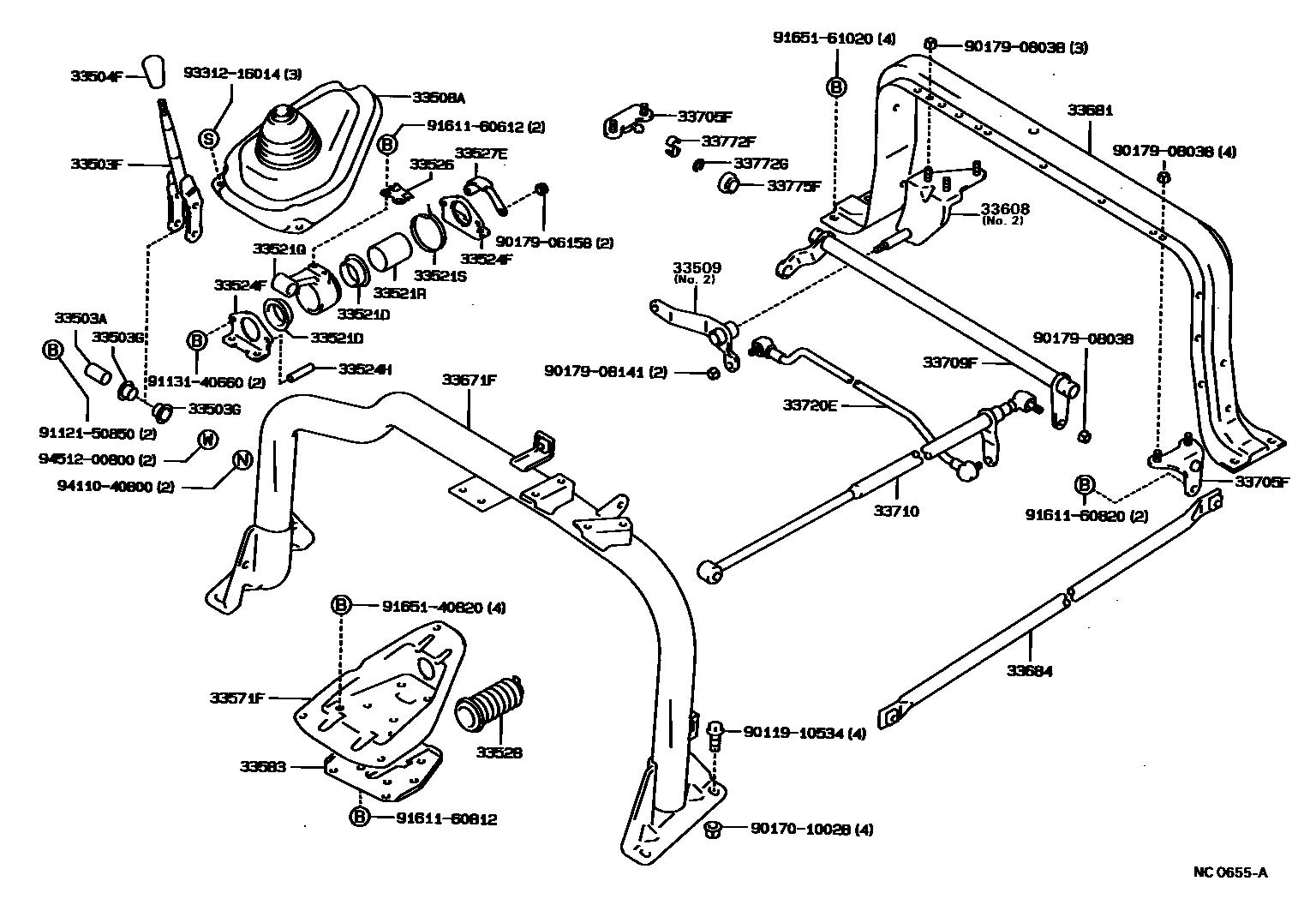

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08009×2iBU7#,8#,9#198808-199401

main90387-08065×2iBU79,89,92199401-199505

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-36060iBU7#,8#,9#198808-199401

main33503-36061iBU79,89,92199401-199505

33503GBUSH(FOR SHIFT LEVER)

main90389-11006×4iBU7#,8#,9#198808-199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36050-06iBU76,8#,96198808-199109

BROWN,TRIM4#

main33504-36050-B0iBU7#,8#,9#199109-199309

GRAY,TRIM1#

main33504-36051-B0iBU79,89,9#199309-199505

GRAY,TRIM1#

33508ABOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)

main33508-36020iBU7#,8#,9#198808-199505

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-36010iBU7#,88,9#198808-199505

main33509-36020iBU76,88,96198808-199004

main33509-36021iBU7#,88,9#199004-199505

main33509-36030iBU84,89198808-199505

33521DBUSH (FOR SHIFT LEVER HOUSING)

main90389-38004×2iBU7#,8#,9#198808-199505

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-36050iBU7#,8#,9#198808-199401

main33521-36051iBU79,89,92199401-199505

33521RCOLLAR (FOR SHIFT LEVER HOUSING)

main90387-34001iBU7#,8#,9#198808-199505

33521SSPRING (FOR SHIFT LEVER HOUSING)

main90508-26063iBU84,89198808-199505

main90508-26070iBU7#,88,9#198808-199505

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-36030×2iBU7#,8#,9#198808-199505

33524HCOLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)

main90387-06026×2iBU7#,8#,9#198808-199505

33526PLATE, SHIFT LEVER SUPPORT, NO.1

main33526-36010iBU84,89198808-199505

main33526-36030iBU7#,88,9#198808-199505

33527EPLATE, SHIFT LEVER SUPPORT, NO.2

main33527-36130iBU7#,8#,9#198808-199505

33528COVER, CONTROL SHAFT

main33528-36020iBU7#,8#,9#198808-199505

33571FBRACKET, CONTROL SHAFT, LOWER NO.2

main33571-36100iBU84,89198808-199505

main33571-36110iBU7#,88,9#198808-199505

33583BRACKET, CONTROL SHAFT, LOWER NO.2

main33583-36030iBU84,89198808-199505

main33583-36040iBU7#,88,9#198808-199505

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-36010iBU7#,88,9#198808-199505

main33608-36020iBU7#,88,9#198808-199505

main33608-36030iBU84,89198808-199505

33671FSUPPORT, CONTROL ROD, NO.1

main33607-36050iBU7#,88,9#198808-199505

main33671-36080iBU84,89198808-199305

main33671-36081iBU89199305-199505

33681MEMBER, CONTROL ROD, REAR

main33681-36011iBU7#,8#,9#198808-199505

33684ROD, CONTROL MEMBER BRACE

main33684-36010iBU84,89198808-199505

RH

main33684-36020iBU84,89198808-199305

LH

main33684-36021iBU89199305-199505

LH

main33684-36030iBU7#,88,9#198808-199505

33705FSUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)

main33705-36280iBU84,89198808-199505

main33705-36290iBU7#,88,9#198808-199505

RH

main33705-36300iBU7#,88,9#198808-199505

LH

main33705-36320iBU84,89198808-199505

RH

main33705-36330iBU84,89198808-199505

LH

33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

main33709-36320iBU76,88,96198808-199004

main33709-36321iBU7#,88,9#199004-199505

main33709-36330iBU84,89198808-199505

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-36220iBU76,88,96198808-199004

main33710-36221iBU7#,88,9#199004-199401

main33710-36222iBU79,92199401-199505

main33710-36230iBU84,89198808-199401

main33710-36231iBU89199401-199505

33720EROD ASSY, GEAR SELECTING

main33720-36210iBU84,89198808-199505

main33720-36220iBU76,88,96198808-199004

main33720-36221iBU7#,88,9#199004-199505

33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)

main33772-20010×4iBU7#,8#,9#198808-199505

33772GRING, SNAP (FOR CROSS SAFT SUPPORT BUSH)

main96151-01600iBU7#,8#,9#198808-199505

33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)

main33775-20020iBU7#,8#,9#198808-199505

CROSS SHAFT NO.2,LH

main33775-35010iBU7#,88,9#198808-199505

CROSS SHAFT NO.2,RH

main33775-36010iBU84,89198808-199505

CROSS SHAFT NO.2,RH

9011910534

main90119-10534

9017010028

main90170-10028

9017906158

main90179-06158

9017908038

main90179-08038

9017908141

main90179-08141

9112150850

main91121-50850

9113140660

main91131-40660

9161160612

main91611-60612

9161160812

main91611-60812

9161160820

main91611-60820

9165140820

main91651-40820

9165161020

main91651-61020

9331216014

main93312-16014

9411040800

main94110-40800

9451200800

main94512-00800

43 parts on this diagram · 4 diagrams in section
