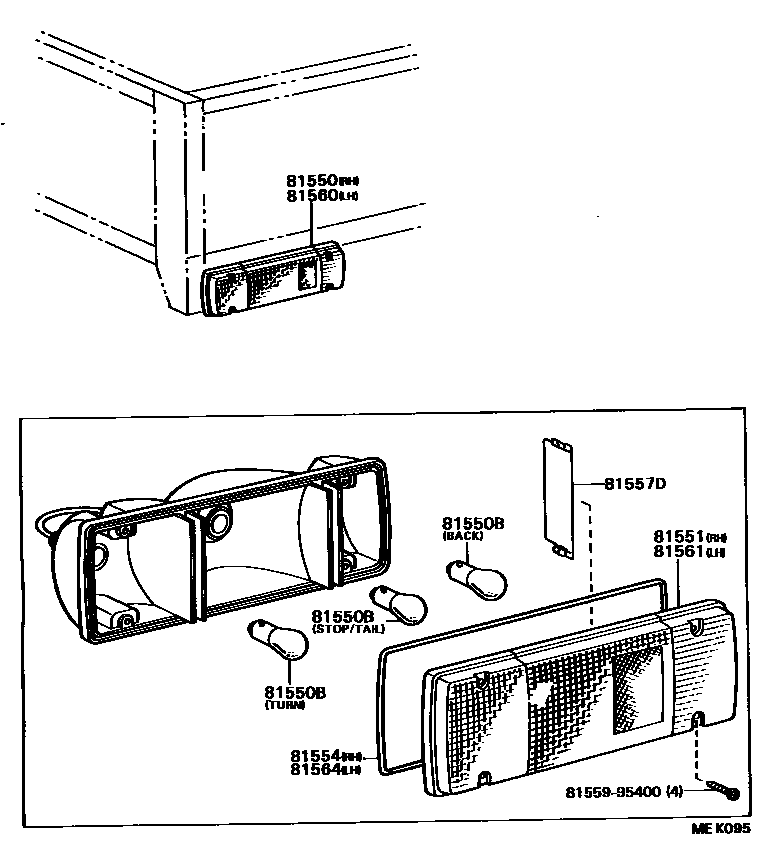

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95411iBU75,85198708-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iBU75,85198708-198808

24V 21W,TURN OR BACK

main90981-16015iBU75,85198708-198808

24V 21/5W,STOP/TAIL

81551LENS, REAR COMBINATION LAMP, RH

main81551-95403iBU75,85198708-198808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-95400iBU75,85198708-198808

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403iBU75,85198708-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95411iBU75,85198708-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-95403iBU75,85198708-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iBU75,85198708-198808

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9 parts on this diagram · 1 diagram in section
