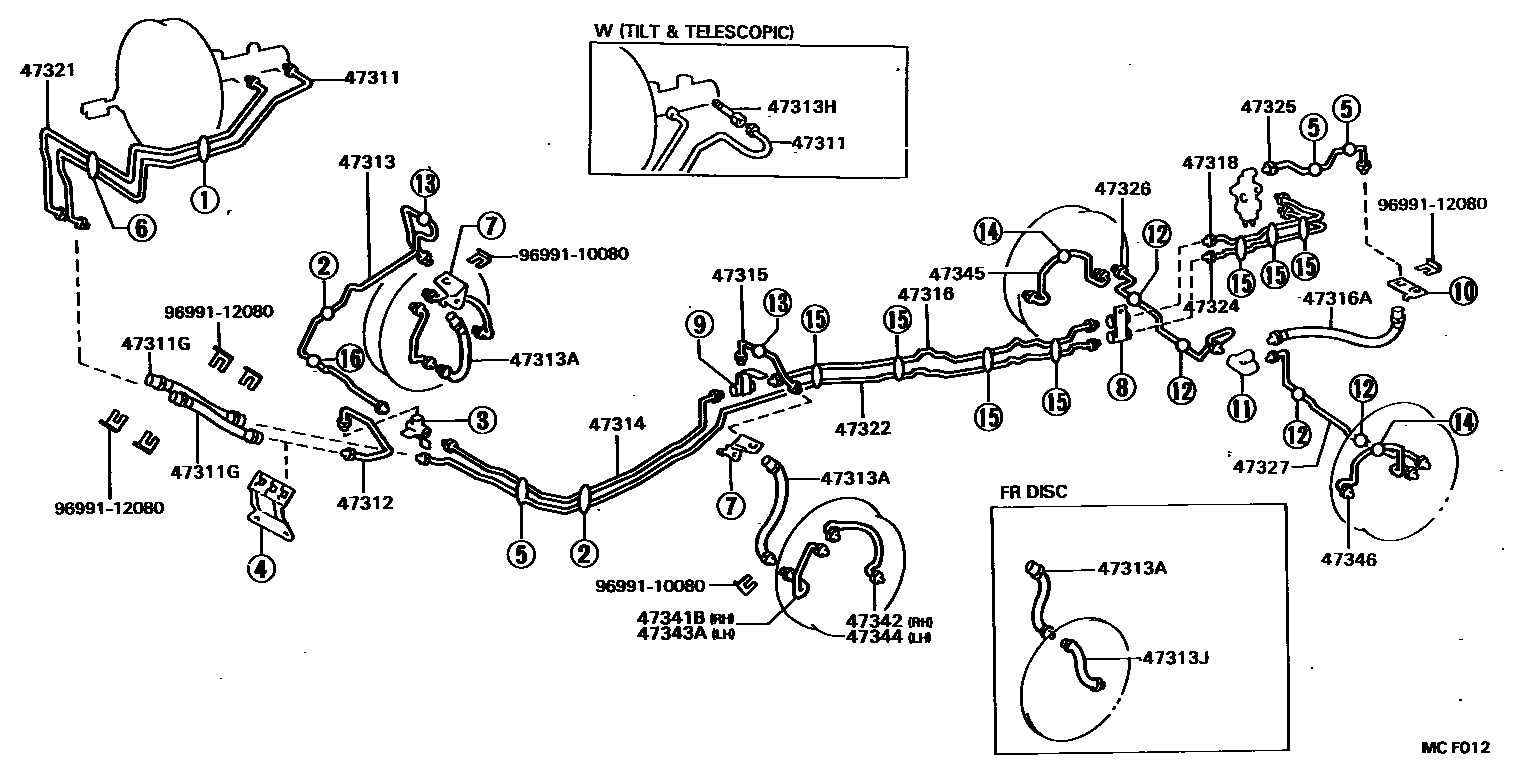

BRAKE TUBE & CLAMP
47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)
W(FR DISC BRAKE RR AUTO ADJUSTER)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
W(FR DISC BRAKE RR AUTO ADJUSTER)
47313HWAY, NO.3(FOR FRONT BRAKE TUBE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
W(FR DISC BRAKE RR AUTO ADJUSTER)
47322TUBE, REAR BRAKE, NO.2
47325TUBE, REAR BRAKE, NO.5
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
47342TUBE, WHEEL CYLINDER, FRONT RH NO.2
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
47344TUBE, WHEEL CYLINDER, FRONT LH NO.2
47345TUBE, WHEEL CYLINDER, REAR RH
47346TUBE, WHEEL CYLINDER, REAR LH
9699110080
main96991-10080
9699112080
main96991-12080
26 parts on this diagram · 3 diagrams in section
