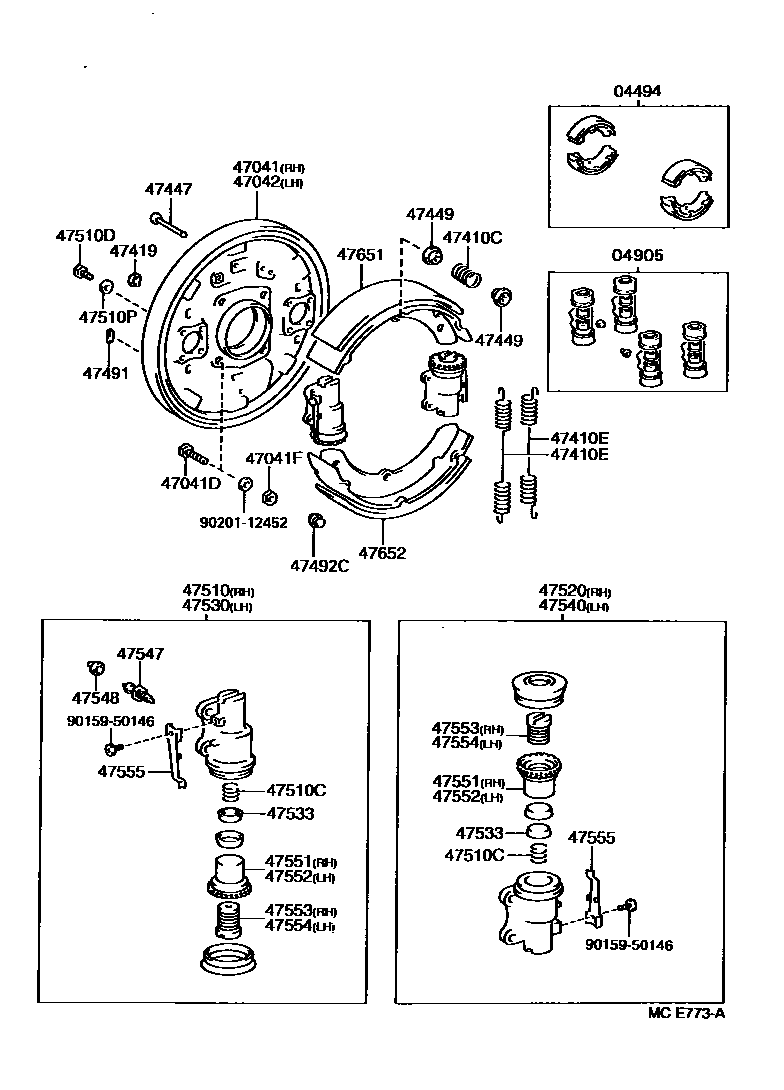

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04494SHOE KIT, FRONT BRAKE

main04494-36100iBU75,85198708-198808

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36080iBU75,85198708-198808

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36130iBU75,85198708-198808

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113×8iBU75,85198708-198808

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200×8iBU75,85198708-198808

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36130iBU75,85198708-198808

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU75,85198708-198808

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90507-29006×4iBU75,85198708-198808

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011×4iBU75,85198708-198808

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-36030×4iBU75,85198708-198808

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iBU75,85198708-198808

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4iBU75,85198708-198808

47492CPLUG, HOLE(FOR FRONT BRAKE)

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36100iBU75,85198708-198808

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122×4iBU75,85198708-198808

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-10127×16iBU75,85198708-198808

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-10287×16iBU75,85198708-198808

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36100iBU75,85198708-198808

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36100iBU75,85198708-198808

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011×4iBU75,85198708-198808

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36100iBU75,85198708-198808

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iBU75,85198708-198808

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iBU75,85198708-198808

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-36130×2iBU75,85198708-198808

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-36130×2iBU75,85198708-198808

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36060×2iBU75,85198708-198808

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36060×2iBU75,85198708-198808

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040×4iBU75,85198708-198808

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36120×2iBU75,85198708-198808

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-36120×2iBU75,85198708-198808

9015950146

main90159-50146

9020112452

main90201-12452

32 parts on this diagram · 1 diagram in section
