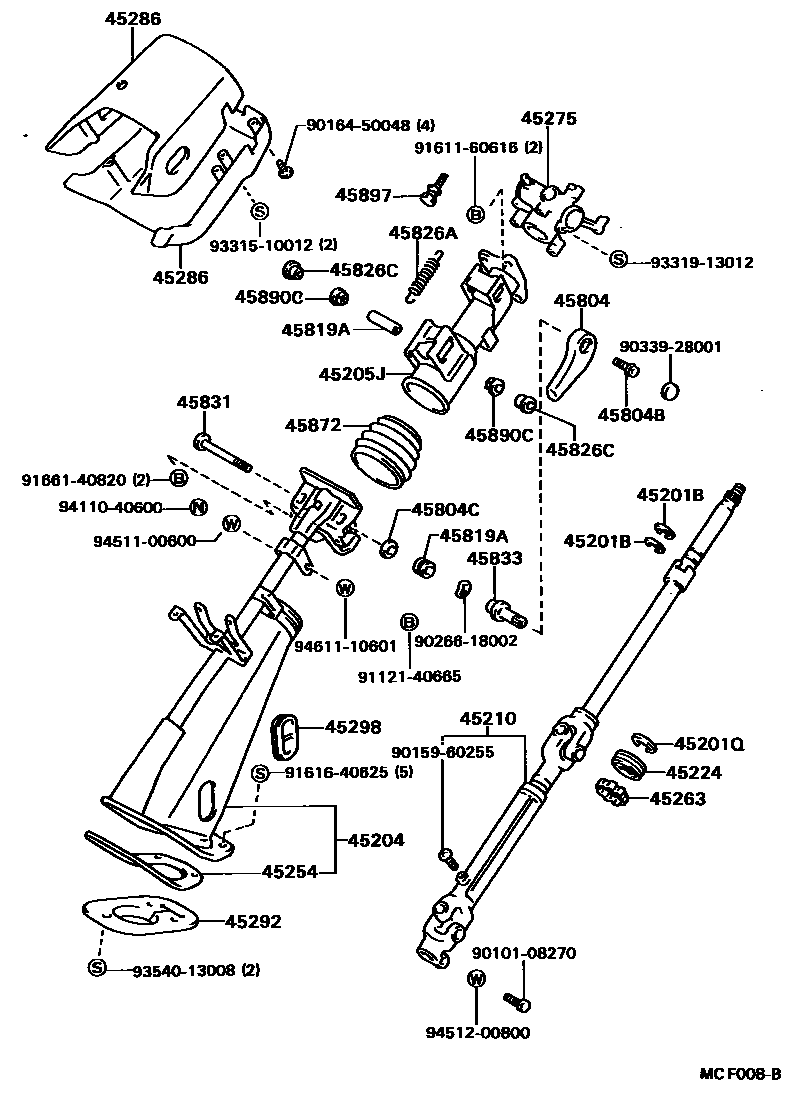

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.20
45201QRING(FOR STEERING COLUMN RING)
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
L=16
45254SHIELD, STEERING COLUMN HOLE
45263RING, STEERING COLUMN, NO.1
45275BRACKET, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BROWN,TRIM4#,UPR
BROWN,TRIM4#,LWR
45292SEAL, MAIN SHAFT LOWER DUST
45298PLUG, STEERING COLUMN COVER
45804LEVER SUB-ASSY, STEERING TILT
BROWN,TRIM4#
45804BBOLT(FOR STEERING TILT LEVER)
45804CWASHER, PLATE(FOR STEERING TILT LEVER)
45819ACOLLAR(FOR TILT LEVER RETAINER)
L=11
L=47.5
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45872COVER, STEERING COLUMN TUBE
45890CCOLLAR(FOR TILT STEERING PAWL)
OD=20
45897BOLT, STEERING LOCK SET
9010108270
main90101-08270
9015960255
main90159-60255
9016450048
main90164-50048
9026618002
main90266-18002
9033928001
main90339-28001
9112140665
main91121-40665
9161160616
main91611-60616
9161640625
main91616-40625
9166140820
main91661-40820
9331510012
main93315-10012
9331913012
main93319-13012
9354013008
main93540-13008
9411040600
main94110-40600
9451100600
main94511-00600
9451200800
main94512-00800
9461110601
main94611-10601
39 parts on this diagram · 1 diagram in section
