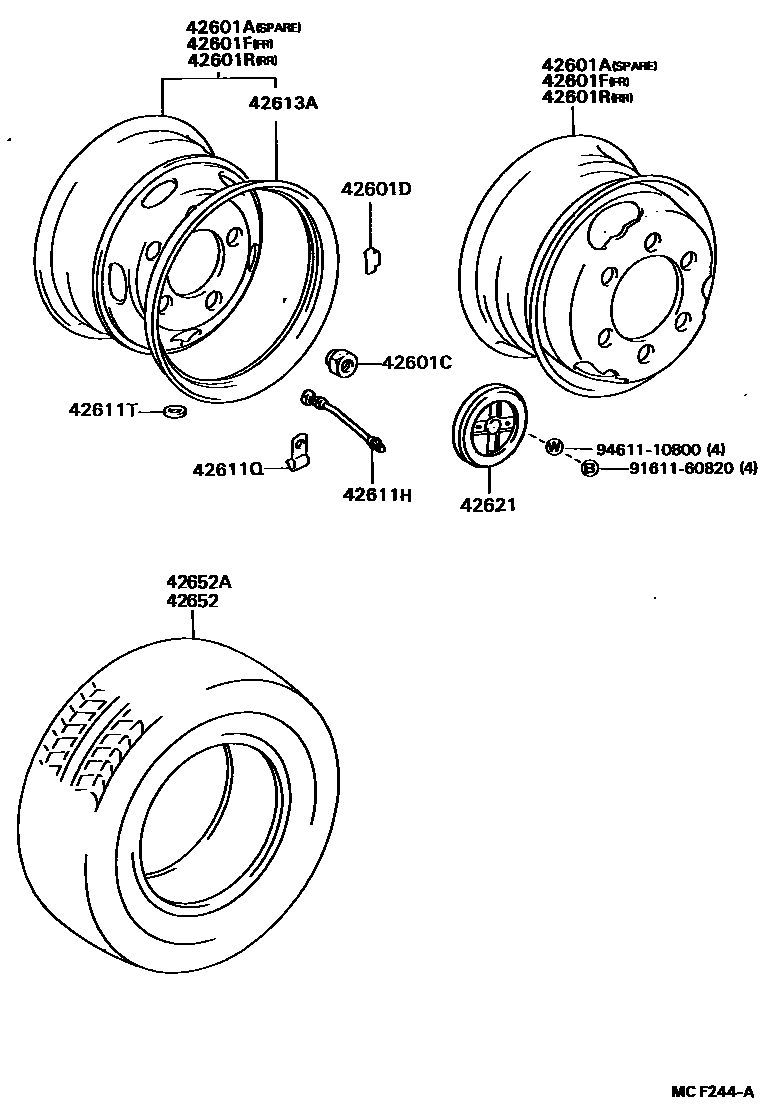

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
5.25X17.5
AFJ 16X5.50F
AFKG 16X5.50F
42601CNUT, HUB (FOR AXLE)
RR,RH
RR,LH
FR,RH
FR,LH
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G
40G
60G
30G
80G
50G
100G
70G
42601FWHEEL, DISC (FOR FRONT)
5.25X17.5
AFJ 16X5.50F
AFKG 16X5.50F
42601RWHEEL, DISC (FOR REAR)
5.25X17.5
AFJ 16X5.50F
AFKG 16X5.50F
42611HEXTENSION, VALVE
42611QCLIP (FOR TUBE)
42611TWASHER (FOR TUBE)
42613ARING, DISC WHEEL SIDE
42621CAP, WHEEL
DENMARK SPEC
42652TIRE
6.50-16-10,RIB
6.50R16X10
7.00-16-10,RIB
7.00R16X10
7R17.5C
8R17.5C
42652ATIRE (FOR SPARE)
6.50-16-10,RIB
6.50R16X10
7.00-16-10,RIB
7.00R16X10
7R17.5C
8R17.5C
9161160820
main91611-60820
9461110800
main94611-10800
14 parts on this diagram · 1 diagram in section
