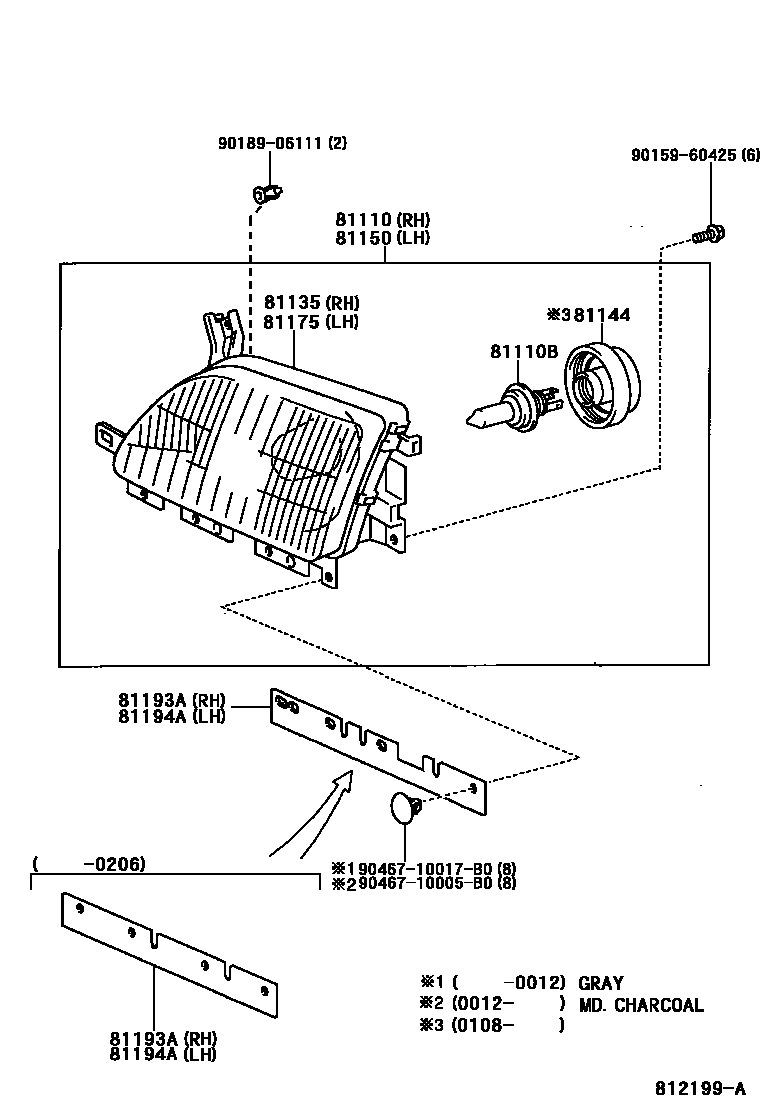

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-37110iXZU302,307,342200010-200206

main81110-37120iXZU300,320,330,340199907-200212

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019×2iXZU30#,320,330,34#199907-200212

24V 75/70W,*HAL *WH

81135UNIT ASSY, HEADLAMP, RH

main81130-37110iXZU302,307,342200010-200206

main81130-37120iXZU300,320,330,340199907-200212

81144COVER, HEADLAMP, NO.1

main81139-37110×2iXZU30#,320,330,34#200108-200212

81150HEADLAMP ASSY, LH

main81150-37110iXZU302,307,342200010-200108

main81150-37111iXZU302,307,342200108-200206

main81150-37120iXZU300,320,330,340199907-200108

main81150-37121iXZU300,320,330,340200108-200212

81175UNIT ASSY, HEADLAMP, LH

main81170-37110iXZU302,307,342200010-200108

main81170-37111iXZU302,307,342200108-200206

main81170-37120iXZU300,320,330,340199907-200108

main81170-37121iXZU300,320,330,340200108-200212

81193APROTECTOR, HEADLAMP, RH

main81193-37010iXZU300,320,330,340199907-200005

main81193-37011iXZU30#,320,330,34#200005-200206

main81193-37050iXZU300,320,330,340200206-200212

81194APROTECTOR, HEADLAMP, LH

main81193-37050iXZU300,320,330,340200206-200212

main81194-37010iXZU300,320,330,340199907-200005

main81194-37011iXZU30#,320,330,34#200005-200108

main81194-37012iXZU30#,320,330,34#200108-200206

9015960425

main90159-60425

9018906111

main90189-06111

9046710005B0

main90467-10005B0

9046710017B0

main90467-10017B0

12 parts on this diagram · 1 diagram in section
