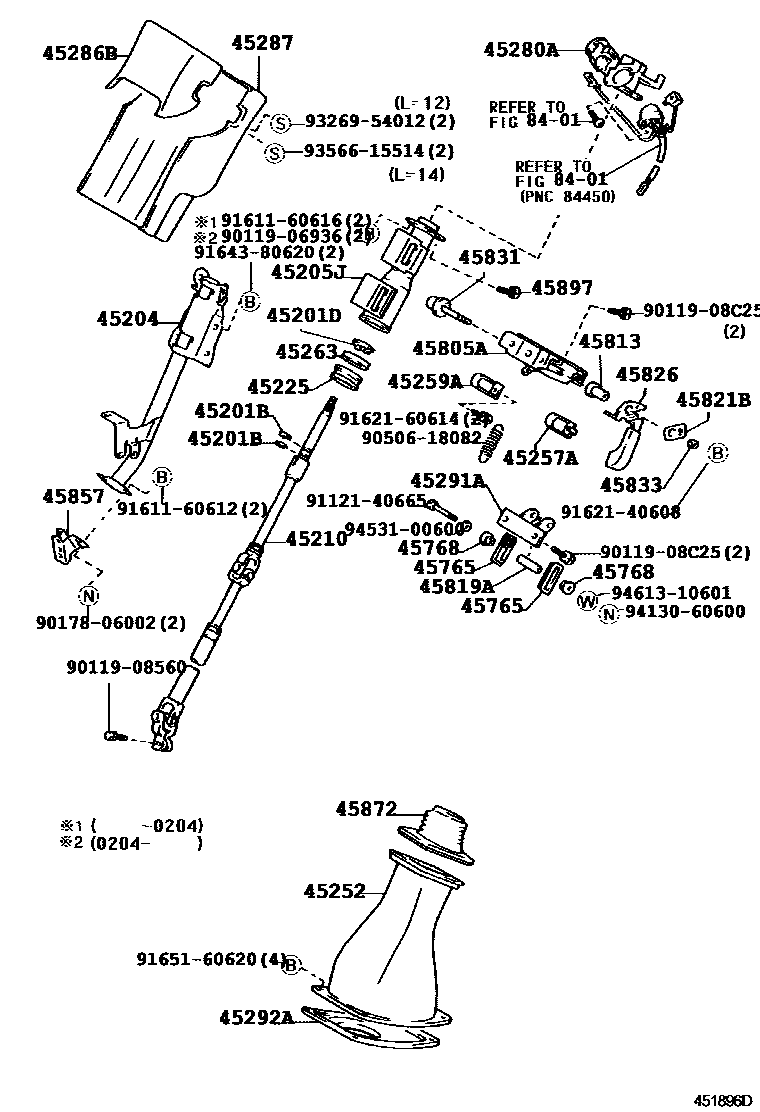

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iXZU30#,320,330,34#199907-200212

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28065iXZU30#,320,330,34#199907-200212

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-37120iXZU300,320,330,340199907-200212

main45204-37130iXZU302,307,342200010-200206

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-37050iXZU30#,320,330,34#199907-200212

45210SHAFT ASSY, STEERING MAIN

main45210-37080iXZU302,342200010-200206

main45210-37090iXZU307200010-200206

main45210-37110iXZU300,320,330,340199907-200212

45225BLOCK, BEARING

main45225-26010iXZU30#,320,330,34#199907-200212

45252TUBE, STEERING COLUMN, LOWER

main45252-37030-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

main45252-37040-B0iXZU300,320,330,340199907-200212

MD.CHARCOAL,TRIM1#

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-37010iXZU30#,320,330,34#199907-200212

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-37010iXZU30#,320,330,34#199907-200212

45263RING, STEERING COLUMN, NO.1

main45263-32010iXZU30#,320,330,34#199907-200212

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37100iXZU30#,320,330,34#199907-200212

45286BCOVER, STEERING COLUMN, UPR

main45286-37080-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

main45286-37090-B0iXZU300,320,330,340199907-200212

MD.CHARCOAL,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37080-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

main45287-37090-B0iXZU300,320,330,340199907-200212

MD.CHARCOAL,TRIM1#

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iXZU30#,320,330,34#199907-200212

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37010iXZU300,320,330,340199907-200212

main45292-37030iXZU302,307,342200010-200206

45765GUIDE, TELESCOPIC STEERING

main45765-37010iXZU30#,320,330,34#199907-200212

45768BUSH, TELESCOPIC STEERING

main45768-37010iXZU30#,320,330,34#199907-200212

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-37010iXZU30#,320,330,34#199907-200212

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iXZU30#,320,330,34#199907-200212

OD=30

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iXZU30#,320,330,34#199907-200212

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iXZU30#,320,330,34#199907-200212

45826LEVER, STEERING TILT

main45826-37010iXZU30#,320,330,34#199907-200212

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iXZU30#,320,330,34#199907-200212

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iXZU30#,320,330,34#199907-200212

45857BRACKET, TILT STEERING COLUMN TUBE, NO.1

main45857-37020iXZU302,307,342200010-200206

main45857-37040iXZU300,320,330,340199907-200212

45872COVER, STEERING COLUMN TUBE

main45872-37010iXZU30#,320,330,34#199907-200212

45897BOLT, STEERING LOCK SET

main45897-12030iXZU30#,320,330,34#199907-200204

main45897-25010iXZU30#,320,330,34#200204-200212
