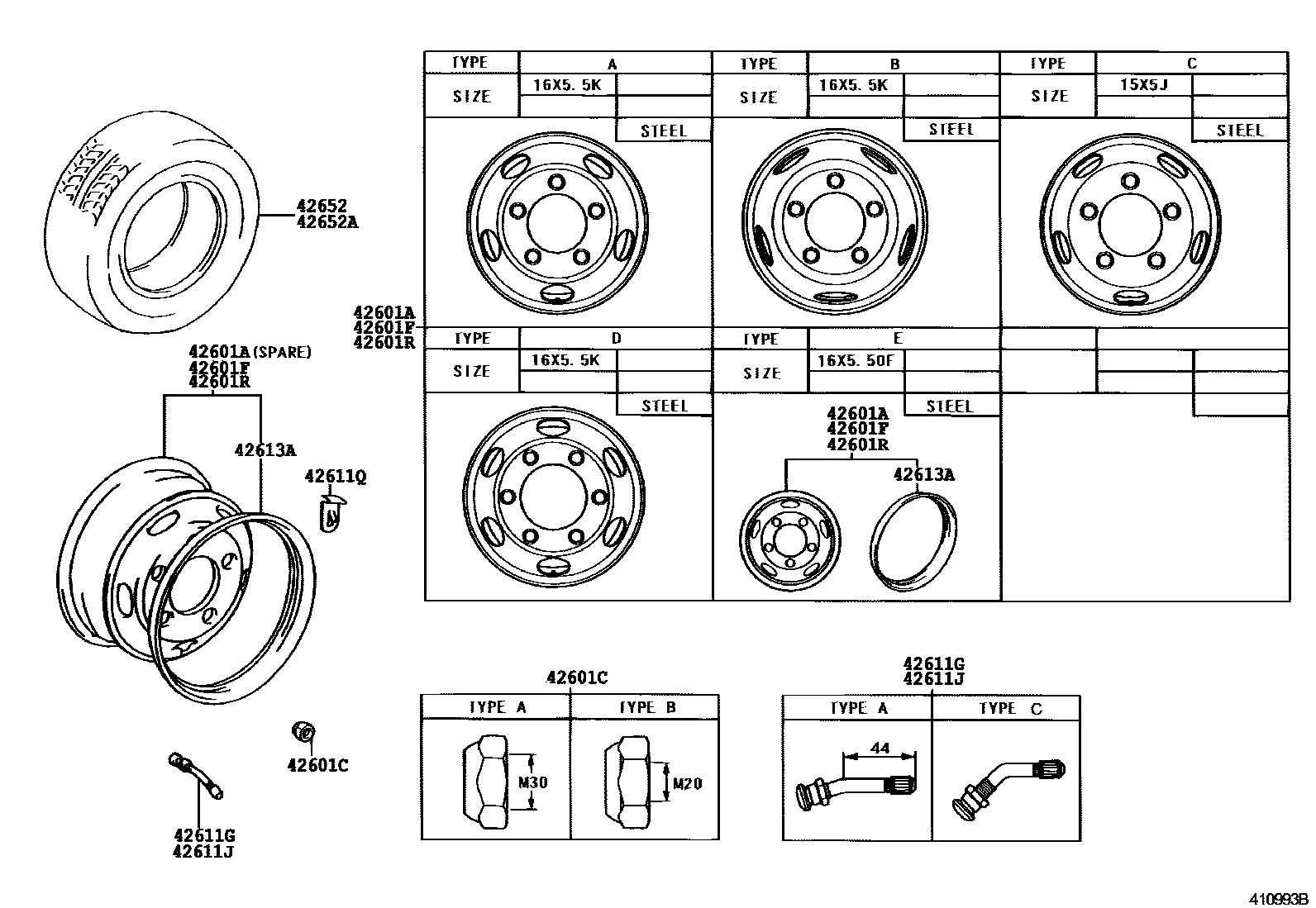

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
16X5.5K, #,TYPE A:REFER ILLUST.
16X5.5K, #,W(205/85R 16),TYPE A:REFER ILLUST.
16X5.5K, #,TYPE D:REFER ILLUST.
15X5J, #,TYPE C:REFER ILLUST.
16X5.5K,TYPE A:REFER ILLUST.
16X5.50F, #,TYPE E:REFER ILLUST.
16X5.50F, #,TYPE E:REFER ILLUST.
16X5.50F, #,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER TO ILLUSTRATION,REAR RH
TYPE A:REFER TO ILLUSTRATION,REAR LH
TYPE B:REFER TO ILLUSTRATION,FRONT RH
TYPE B:REFER TO ILLUSTRATION,FRONT LH
TYPE B:REFER TO ILLUSTRATION,REAR RH
TYPE B:REFER TO ILLUSTRATION,FRONT RH
TYPE B:REFER TO ILLUSTRATION,FRONT LH
TYPE B:REFER TO ILLUSTRATION,REAR LH
42601FWHEEL, DISC (FOR FRONT)
16X5.5K, #,TYPE A:REFER ILLUST.
16X5.5K, #,W(205/85R 16),TYPE A:REFER ILLUST.
16X5.5K, #,TYPE D:REFER ILLUST.
16X5.50F, #,TYPE E:REFER ILLUST.
16X5.50F, #,TYPE E:REFER ILLUST.
42601RWHEEL, DISC (FOR REAR)
16X5.5K, #,TYPE B:REFER ILLUST.
16X5.5K, #,TYPE A:REFER ILLUST.
16X5.5K, #,W(205/85R 16),TYPE A:REFER ILLUST.
16X5.5K, #,TYPE D:REFER ILLUST.
15X5J, #,TYPE C:REFER ILLUST.
16X5.50F, #,TYPE E:REFER ILLUST.
16X5.50F, #,TYPE E:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
42611QCLIP (FOR TUBE)
42613ARING, DISC WHEEL SIDE
42652TIRE
7.00R16-12,*Y/H
7.00R16-10,RIB
6.50R16-12PR,RIB
205/85R16
205/85R16,*Y/H,*Y/H
195/85R16,AUSTRALIA SPEC
205/85R16,*D/L
205/85R16,*D/L
42652ATIRE (FOR SPARE)
7.00R16-12,*Y/H
7.00R16-10,RIB
6.50R16-12PR,RIB
205/85R16
205/85R16,*Y/H,*Y/H
195/85R16,AUSTRALIA SPEC
205/85R16,*D/L
205/85R16,*D/L
10 parts on this diagram · 4 diagrams in section
