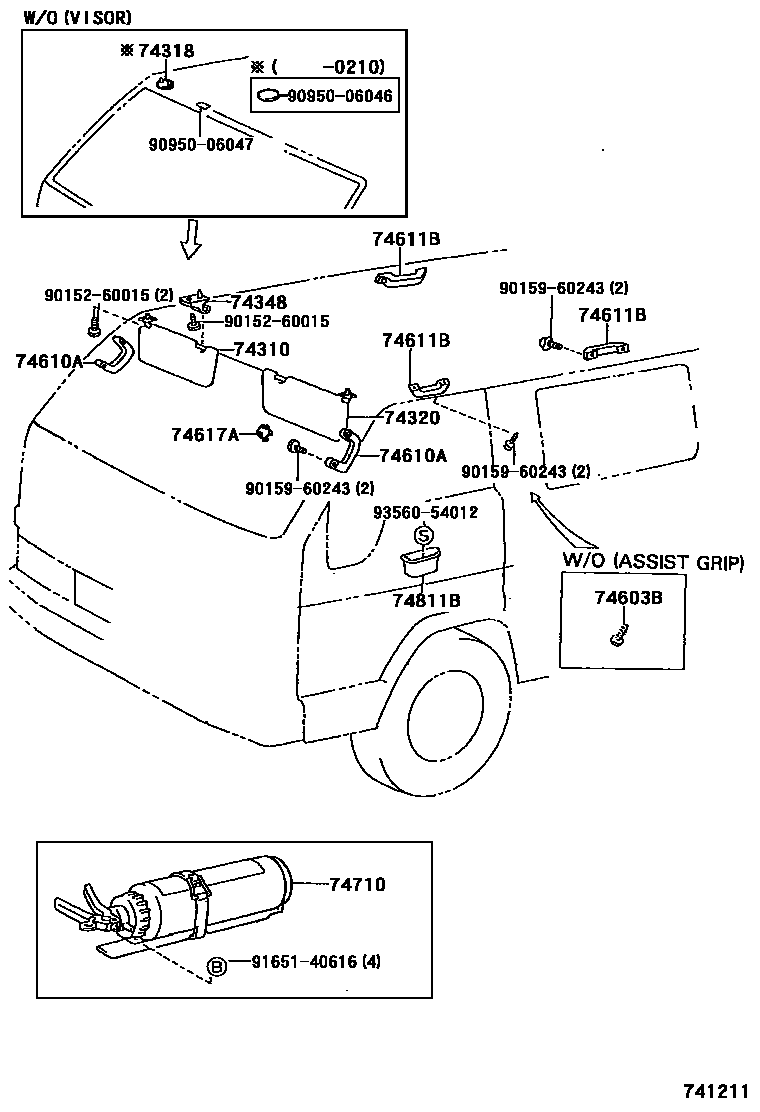

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-25010-B0iBU111..RHD;BU101..RHD..WT..GEN..IV3199505-200212

HONG KONG SPEC,LT. GRAY,TRIM1#

main74310-37010-B0iBU212..LHD..40T..TD;BU211,221,YU210..T3..(CBU,IV3)199505

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

main74310-95430-B0iBU142..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200212

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

main74310-95436-B0iBU100,101,110,142..20T..ARL199505-200212

LT. GRAY,TRIM1#

main74310-95437-B0iBU100,101..ARL..CBU199505-200212

LT. GRAY,TRIM1#

main74310-95438-B0iBU212..ARL199505-199703

LT. GRAY,TRIM1#

main74310-95443-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT. GRAY,TRIM1#

74318COVER, VISOR BRACKET, LH

main74318-25010-B0iBU212..LHD;BU211,221..T3..GEN;BU10#,111,14#..RHD..GEN200210

LT.GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-25010-B0iBU10#,111,112,14#,RZU100..GEN,SA,TAIW199505

LT. GRAY,TRIM1#

main74320-37010-B0iBU222..EUR;BU212..LHD..40T..TD;BU212,222..RHD..(GEN,SA);BU211,213,221,223,YU210..T3199703

LT. GRAY,TRIM1#

main74320-95418-B1iBU142..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200212

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

main74320-95422-B0iBU100,101,110,142..20T..ARL199505-200212

LT. GRAY,TRIM1#

main74320-95423-B0iBU100,101..ARL..CBU199505-200212

LT. GRAY,TRIM1#

main74320-95424-B0iBU212,222..T3..ARL199703-200212

LT. GRAY,TRIM1#

main74320-95429-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT. GRAY,TRIM1#

74348HOLDER, VISOR

main74348-25010-B0×2iBU102..TD;BU212..LHD..40T..TD;BU100,101,111,14#,211,221..(DM1,T1,T3,TW2)..GEN; BU211,212..T3;BU10#,11#,14#,213,22#,RZU100,YU210199703

LT.GRAY,TRIM1#; W(VISOR = PASSENGER SEAT),LT.GRAY,TRIM1#

74603BCLIP (FOR ASSIST GRIP)

main90467-05020-B0×2iBU111..IV3199505-200111

GRAY,TRIM1#

main90467-06171-B0×2iRZU100200009-200212

BLUISH GRAY,TRIM1#

main90467-06171-B1×2iBU213,223200009

LT.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-95404-B0×2iBU100..ARL..IV3;BU213,223,RZU100..LHD;BU101,110,142,212,222..ARL199505

GRAY,TRIM1#

main74620-87001-B0×2iBU100..CBU;BU100,RZU100..(20T,30T)..GEN..IV3;BU101,102,111,112,14#,211,212,221,222,YU210..EUR,GEN,SA,TAIW199505

GRAY,TRIM1#

74611BGRIP, ASSIST

main74611-92601-B0×3iBU100,101,142,211,212..TW1,TW2199505-200212

GRAY,TRIM1#

74617APLUG, ASSIST GRIP

main74617-14010-B0×2iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

BLUISH GRAY,TRIM1#

main74617-95J00-B0×4iBU100..ARL..IV3;BU213,223,RZU100..LHD;BU101,110,142,212,222..ARL199505-200308

GRAY,TRIM1#

74710EXTINGUISHER ASSY

main74710-95401iBU111..IV3; BU141..LHD199505

ALGERIA SPEC

74811BHANDLE, DOOR PULL

main74811-87001-B0×2iBU10#,11#,14#,21#,22#,RZU100,YU210199505

GRAY,TRIM1#

9015260015

main90152-60015

9015960243

main90159-60243

9095006046

main90950-06046

9095006047

main90950-06047

9165140616

main91651-40616

9356054012

main93560-54012

16 parts on this diagram · 1 diagram in section
