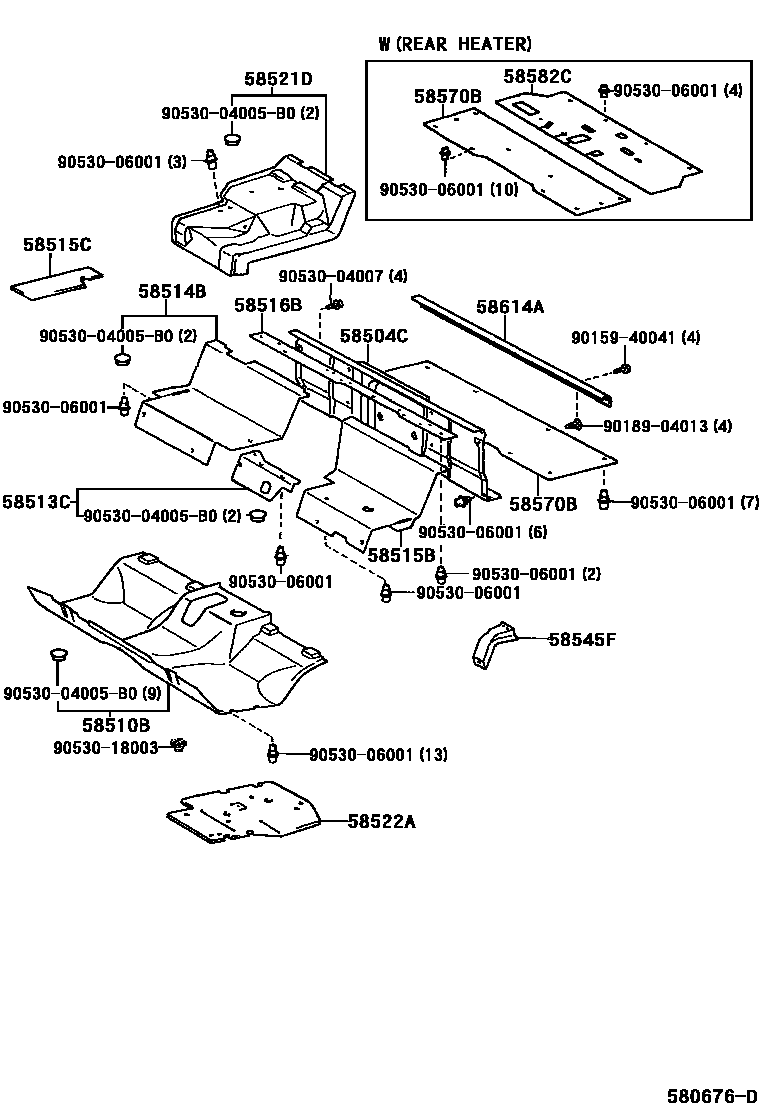

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58504CMAT SUB-ASSY, HEADER

main58504-37060-B0iBU212..TW1199604-200212

GRAY,TRIM1#

main58504-92606-B0iBU212..TW1199505-199604

GRAY,TRIM1#

main58504-95021-B0iBU100,101,142..(TW1,TW2)..(ARL,EUR)199505-200212

GRAY,TRIM1#

58510BMAT, FRONT FLOOR, FRONT

main58510-37110-B0iBU100,101,110,142..ARL199505-200212

BLUISH GRAY,TRIM1#

main58510-37120-B0iBU212..ARL199505-199703

BLUISH GRAY,TRIM1#

main58510-37130-B0iBU211,221..LHD..T3199703

BLUISH GRAY,TRIM1#

main58510-37150-B0iBU100,101,111,14#..LHD..GEN199505-200212

BLUISH GRAY,TRIM1#

main58510-37160-B0iBU101,102,111,14#,RZU100..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main58510-37170-B0iBU212..RHD..(GEN,SA)..IV3;BU211,221,222,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main58510-37180-B0iBU212..LHD..40T..TD199703-200212

BLUISH GRAY,TRIM1#

main58510-37190-B0iBU102,112,140,142..EUR,TAIW199505-200110

BLUISH GRAY,TRIM1#

main58510-37240-B0iBU212,222..TAIW199505-199610

BLUISH GRAY,TRIM1#

main58510-37460-B0iBU213,222,223..LHD;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199703

BLUISH GRAY,TRIM1#

main58510-37470-B0iBU102,112,RZU100..LHD199703-200212

BLUISH GRAY,TRIM1#

58513CMAT, FLOOR, FRONT CENTER

main58513-37020-B0iBU10#,111,112,14#,21#,22#..LHD199505

BLUISH GRAY,TRIM1#

main58513-37040-B0iBU212..RHD..(GEN,SA)..IV3;BU101,102,111,14#,211,221,222,RZU100,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main58513-37070-B0iRZU100..15T199908-200212

BLUISH GRAY,TRIM1#

58514BMAT, FLOOR, REAR RH

main58514-25010-B0iBU140,142..T3..EUR;BU102,112,RZU100..LHD199505-200212

BLUISH GRAY,TRIM1#

main58514-37010-B0iBU100,101,110,142..ARL199505-200212

BLUISH GRAY,TRIM1#

main58514-37020-B0iBU212..TD..CBU;BU212,222..RHD..DSL..(ARL,GEN)199505-200212

BLUISH GRAY,TRIM1#

main58514-37040-B0iBU212,222..TAIW199505-199610

BLUISH GRAY,TRIM1#

main58514-37090-B0iBU213,222,223..LHD;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199703

BLUISH GRAY,TRIM1#

58515BMAT, FLOOR, REAR LH

main58515-25010-B1iBU100,101,110,142..ARL199505-200212

BLUISH GRAY,TRIM1#

main58515-37010-B1iBU212..TD..CBU;BU212,222..RHD..DSL..(ARL,GEN)199505-200212

BLUISH GRAY,TRIM1#

main58515-37020-B0iBU212,222..TAIW199505-199610

BLUISH GRAY,TRIM1#

main58515-37030-B0iBU140,142..T3..EUR;BU102,112,RZU100..LHD199505-200212

BLUISH GRAY,TRIM1#

58515CMAT, FRONT FLOOR, REAR NO.1

main58515-95404-B0iRZU100..15T199908-200212

GRAY,TRIM1#

58516BMAT, FRONT FLOOR, REAR NO.2

main58516-25010-B0iBU100,101..ARL..CBU199505-200212

BLUISH GRAY,TRIM1#

main58516-37030-B1iBU212..TW1199505-199604

BLUISH GRAY,TRIM1#

main58516-37031-B1iBU212..TW1199604-200212

BLUISH GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-25010-B1iBU101,102,111,14#,RZU100..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main58521-25020-B1iBU100,101,111,14#..LHD..GEN199505-200212

BLUISH GRAY,TRIM1#

main58521-37020-B1iBU212..CBU199703-200212

BLUISH GRAY,TRIM1#

main58521-37050-B1iBU140,142..EUR;BU102,112,RZU100..LHD199505-200212

BLUISH GRAY,TRIM1#

main58521-37060-B1iBU211,221..LHD199505

BLUISH GRAY,TRIM1#

main58521-37090-B0iBU100,101,110,142..ARL199505-200212

BLUISH GRAY,TRIM1#

main58521-37110-B0iBU212..RHD..(GEN,SA)..IV3;BU211,221,222,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main58521-37120-B1iBU212,222..TAIW199505-199610

BLUISH GRAY,TRIM1#

main58521-37130-B1iBU212,213,222,223..LHD..(EUR,GEN)199505

BLUISH GRAY,TRIM1#

main58521-37140-B0iBU212,222..ARL199505-200212

BLUISH GRAY,TRIM1#

58522AMAT, ENGINE SERVICE HOLE COVER, LH

main58522-37010-B0iBU213,223199908

BLUISH GRAY,TRIM1#

58545FCOVER, ENGINE SERVICE HOLE CATCH

main58545-37010-B1iBU212,222..DSL199505-199708

BLUISH GRAY,TRIM1#

58570BMAT ASSY, REAR FLOOR

main58581-92612-B0iBU211,212..TW1199505-200212

GRAY,TRIM1#

main58581-95406-B0iBU100,101,142..TW1,TW2199505-200212

GRAY,TRIM1#

main58581-95407-B0iBU101..175T..GEN199905-200212

W(REAR HEATER),GRAY,TRIM1#

58582CMAT, REAR FLOOR, REAR

main58582-95400-B0iBU101..175T..GEN199905-200212

GRAY,TRIM1#

58614APLATE, MAT SET, NO.4

main58614-95A01-B0iBU100,101,142..TW1,TW2199505-200212

GRAY,TRIM1#

9015940041

main90159-40041

9018904013

main90189-04013

9053004005B0

main90530-04005B0

9053004007

main90530-04007

9053006001

main90530-06001

9053018003

main90530-18003

19 parts on this diagram · 2 diagrams in section
