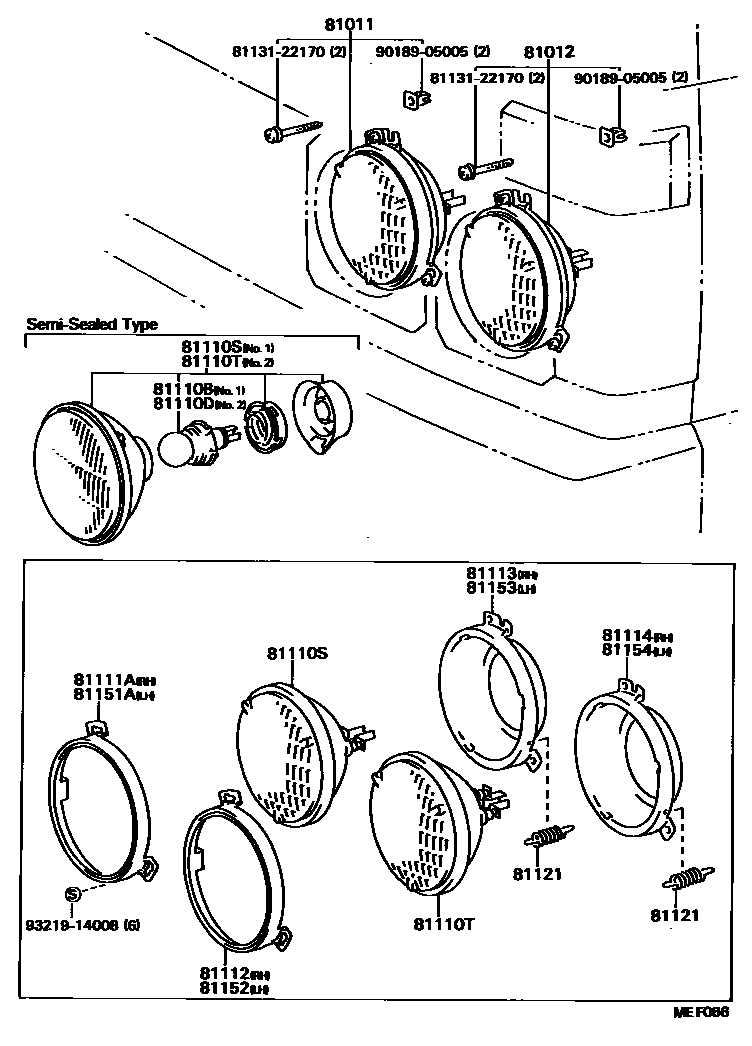

HEADLAMP

81011HEADLAMP SUB-ASSY, NO.1

main81011-39035iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

RH,SEMI-SEALED,12V,WHITE

main81011-39045iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN198409-198708

RH,SEMI-SEALED,24V,WHITE

main81011-39055iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

RH,SEMI-SEALED,12V,YELLOW

main81011-39065iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

RH,SEMI-SEALED,24V,YELLOW

main81011-39075iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198608

RH,24V,WHITE

main81011-39085iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198409-198608

RH,12V,WHITE

main81011-39105iBU75,85..EUR198409-198708

RH,*SSB,24V,WHITE,W/*HC

main81011-39115iBU6#,81,85..ARL,SA198409-198708

RH,HALOGEN,12V,WHITE

main81011-95406iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198608-198708

RH,24V,WHITE

main81011-95407iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198608-198708

RH,12V,WHITE

main81011-95412iBU75,85..EUR198608-198708

RH,*SSB,24V,WHITE,HALOGEN

main81013-39015iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

LH,24V,WHITE

main81013-39025iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198409-198708

LH,12V,WHITE

main81013-39045iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

LH,SEMI-SEALED,24V,YELLOW

main81013-39055iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

LH,SEMI-SEALED,12V,YELLOW

main81013-39075iBU75,85..EUR198409-198708

LH,*SSB,24V,WHITE,W/*HC

main81013-39085iBU6#,81,85..ARL,SA198409-198708

LH,HALOGEN,12V,WHITE

main81013-39095iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

LH,SEMI-SEALED,12V,WHITE

main81013-39105iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN198409-198708

LH,SEMI-SEALED,24V,WHITE

main81013-95409iBU75,85..EUR198608-198708

LH,*SSB,24V,WHITE,HALOGEN

81012HEADLAMP SUB-ASSY, NO.2

main81012-39055iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

RH,SEMI-SEALED,12V,WHITE

main81012-39065iBU75,85..EUR198409-198708

RH,SEMI-SEALED,24V,WHITE

main81012-39075iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

RH,SEMI-SEALED,12V,YELLOW

main81012-39085iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

RH,SEMI-SEALED,24V,YELLOW

main81012-39105iBU85..RHD..(CBU,IV3);BU6#,75,76,80,81,82..RHD198409-198708

RH,12V,WHITE

main81012-39115iBU60,61,62,7#,80,81,85..LHD..GEN198409-198608

RH,12V,WHITE

main81012-39125iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

RH,24V,WHITE

main81012-39135iBU75,85..EUR198409-198708

RH,*SSB,24V,WHITE,W/*HC

main81012-39145iBU6#,81,85..ARL,SA198409-198708

RH,HALOGEN,12V,WHITE

main81012-39155iBU85..RHD..GEN..(IV1,IV3)198409-198708

RH,SEMI-SEALED,12V,WHITE

main81012-95411iBU60,61,62,7#,80,81,85..LHD..GEN198608-198708

RH,12V,WHITE

main81012-95415iBU75,85..EUR198608-198708

RH,*SSB,24V,WHITE,HALOGEN

main81014-39025iBU85..RHD..(CBU,IV3);BU6#,75,76,80,81,82..RHD198409-198708

LH,12V,WHITE

main81014-39035iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

LH,12V,WHITE

main81014-39045iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

LH,SEMI-SEALED,24V,YELLOW

main81014-39055iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

LH,SEMI-SEALED,12V,YELLOW

main81014-39065iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

LH,24V,WHITE

main81014-39075iBU75,85..EUR198409-198708

LH,*SSB,24V,WHITE,W/*HC

main81014-39085iBU6#,81,85..ARL,SA198409-198708

LH,HALOGEN,12V,WHITE

main81014-39095iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

LH,SEMI-SEALED,12V,WHITE

main81014-39105iBU85..RHD..GEN..(IV1,IV3)198409-198708

LH,SEMI-SEALED,12V,WHITE

main81014-39115iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN198409-198708

LH,SEMI-SEALED,24V,WHITE

main81014-95411iBU75,85..EUR198608-198708

LH,*SSB,24V,WHITE,HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 45/40W,YELLOW,12V 45/40W,YELLOW

main90981-17008iBU75,85..EUR198409-198708

24V 55/50W,WHITE,24V 55/50W,WHITE

main90981-17009iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

24V 55/50W,YELLOW,24V 55/50W,YELLOW

main90981-17015iBU75,85..EUR198608-198708

24V 70W,*HAL *WH,24V 70W,WHITE,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013iBU85..RHD..GEN..(IV1,IV3)198409-198708

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 45/40W,YELLOW,12V 45/40W,YELLOW

main90981-17008iBU75,85..EUR198409-198708

24V 55/50W,WHITE,24V 55/50W,WHITE

main90981-17009iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

24V 55/50W,YELLOW,24V 55/50W,YELLOW

main90981-17011iBU75,85..EUR198608-198708

24V 75/70W,*HAL *WH,24V 75/70W,WHITE,HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-02018iBU85..RHD..GEN..(IV1,IV3)198409-198708

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-02020iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW

main90981-02039iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198409-198708

12V 37.5W,*WB,12V 37.5W,WHITE

main90981-02047iBU6#,81,85..ARL,SA198409-198708

12V 37.5W,*HAL,*WB,12V 37.5W,HALOGEN,WHITE

main90981-08010iBU75,85..EUR198409-198708

24V 55/50W,*WSB,24V 55/50W,SEMI-SEALED,WHITE

main90981-08012iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

24V 55/50W,*YSB,24V 55/50W,SEMI-SEALED,YELLOW

main90981-08017iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

24V 40W,*WB,24V 40W,WHITE

main90981-08020iBU75,85..EUR198409-198708

24V 55/50W,*WSB,24V 55/50W,*SSB,WHITE,W/*HC

main90981-08025iBU75,85..EUR198608-198708

24V 70W,*HWS,24V 70W,*SSB,WHITE,HALOGEN

81110TSEALED BEAM UNIT, NO.2

main90981-02019iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-02021iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW

main90981-02026iBU85..RHD..GEN..(IV1,IV3)198409-198708

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-02040iBU85..RHD..(CBU,IV3);BU6#,75,76,80,81,82,86..RHD198409-198708

12V 37.5/50W,*WB,12V 37.5/50W,WHITE

main90981-02041iBU60,61,62,7#,80,81,85..LHD..GEN198409-198708

12V 37.5/50W,*WB,12V 37.5/50W,WHITE

main90981-02048iBU6#,81,85..ARL,SA198409-198708

12V37.5/60W,*HAL,*WB,12V 37.5W/60W,HALOGEN,WHITE

main90981-08011iBU75,85..EUR198409-198708

24V 55/50W,*WSB,24V 55/50W,SEMI-SEALED,WHITE

main90981-08013iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

24V 55/50W,*YSB,24V 55/50W,SEMI-SEALED,YELLOW

main90981-08019iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198708

24V 40/60W,*WB,24V 40/60W,WHITE

main90981-08021iBU75,85..EUR198409-198708

24V 55/50W,*WSB,24V 55/50W,*SSB,WHITE,W/*HC

main90981-08026iBU75,85..EUR198608-198708

24V 75/70W,*SSB,WHITE,HALOGEN

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261iBU6#,7#,8#198409-198708

main81111-20280iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261iBU6#,7#,8#198409-198708

main81111-20280iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iBU6#,7#,8#198409-198708

main81113-20170iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-20170iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

main81114-20210iBU6#,7#,8#198409-198708

81121SPRING, HEADLAMP TENSION

main81112-95410iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

main81121-95400iBU6#,7#,8#198409-198708

LH

main90506-16017iBU6#,7#,8#198409-198708

RH

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261iBU6#,7#,8#198409-198708

main81111-20280iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261iBU6#,7#,8#198409-198708

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-14100iBU6#,7#,8#198409-198708

main81153-20130iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-20130iBU75,85..EUR198409-198708

W/HEADLAMP CLEANER

main81154-20170iBU6#,7#,8#198409-198708

8113122170SCREW, HEADLAMP ADJUSTING

main81131-22170

9018905005

main90189-05005

9321914008

main93219-14008

18 parts on this diagram · 1 diagram in section
