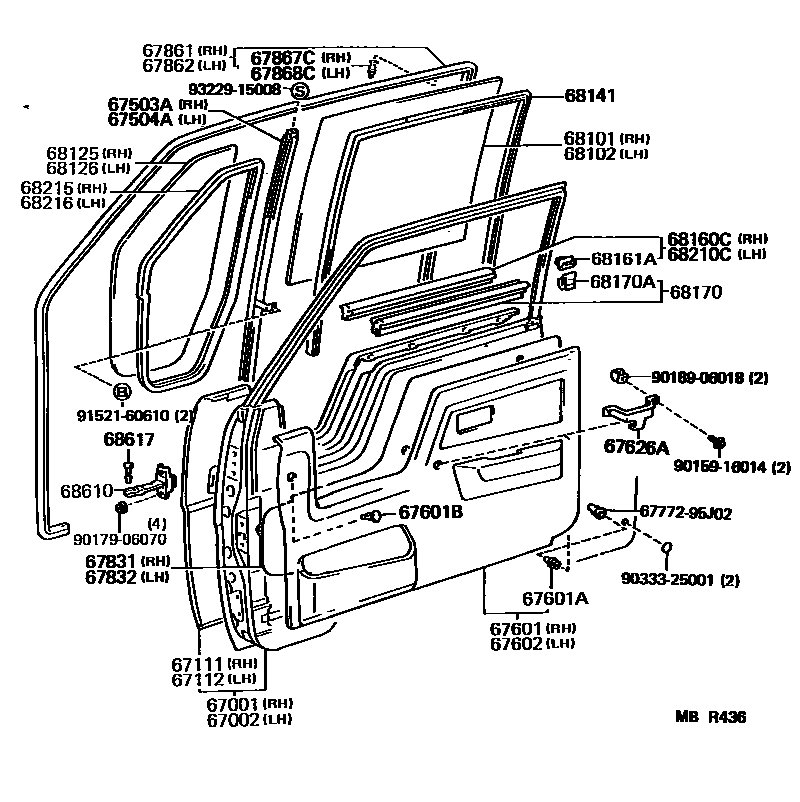

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-37040iLY61199305-199505

main67001-95428iLY60,YY61198708-198801

main67001-95430iLY61198808-199305

main67001-95432iLY60,YY61198801-198808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-37050iLY61199305-199505

main67002-95435iLY60,YY61198708-198801

main67002-95436iLY61198808-199305

main67002-95438iLY60,YY61198801-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-37030iLY61199305-199505

main67111-95407iLY60,YY61198708-198808

main67111-95408iLY61198808-199305

67112PANEL, FRONT DOOR, OUTER LH

main67112-37040iLY61199305-199505

main67112-95406iLY60,YY61198708-198808

main67112-95408iLY61198808-199305

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-95400iLY60,YY61198708-198808

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-95400iLY60,YY61198708-198808

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95413-06iLY60,YY61198708-198808

BROWN,TRIM4#

main67610-95416-06iLY61198808-199109

BROWN,TRIM4#

main67610-95416-B0iLY61199109-199505

GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-30060×22iLY60,YY61198708-198808

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0×4iLY61199303-199505

GRAY,TRIM1#

main90467-06046-03×4iLY61199109-199303

GRAY,TRIM1#

main90467-06046-06×4iLY61198808-199109

BROWN,TRIM4#

main90467-07043-16×2iLY60,YY61198708-198808

BROWN,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95420-06iLY60,YY61198708-198808

BROWN,TRIM4#

main67620-95422-06iLY61198808-199109

BROWN,TRIM4#

main67620-95422-B0iLY61199109-199505

GRAY,TRIM1#

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400×2iLY6#,YY61198708-199505

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95406iLY60,YY61198708-198808

main67831-95408iLY61198808-199505

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95407iLY60,YY61198708-198808

main67832-95409iLY61198808-199505

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-37010iLY61199406-199505

main67861-95406iLY61199406-199505

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-37010iLY61199406-199505

main67862-95406iLY60,YY61198708-199406

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-95403×28iLY61198808-199505

main67868-89101×28iLY60,YY61198708-198808

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-89103×28iLY60,YY61198708-198808

main67868-95402×28iLY61198808-199505

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-37020iLY61..ST199109-199207

*TEM,T=4.0,BRONZE

main68111-95406iLY60,YY61198708-198808

*TEM,T=4.0

main68111-95407iLY61198808-199505

*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-37020iLY61..ST199109-199207

*TEM,T=4.0,BRONZE

main68112-95406iLY60,YY61198708-198808

*TEM,T=4.0

main68112-95407iLY61198808-199505

*TEM,T=4.0

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iLY60,YY61198708-198808

*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iLY60,YY61198708-198808

*TEM,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-95407×2iLY60,YY61198708-198808

main68141-95408×2iLY61198808-199505

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95402iLY60,YY61198708-198808

main68161-95403iLY61198808-199505

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080×10iLY61198808-199505

1ST,3RD,4TH,5TH

main68211-30080×8iLY60,YY61198708-198808

main68211-95402iLY61198808-199505

RH,2ND

main68212-95400iLY61198808-199505

LH,2ND

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95407iLY60,YY61198708-198808

RH

main68171-95409iLY61198808-199505

RH

main68172-95404iLY60,YY61198708-198808

LH

main68172-95406iLY61198808-199505

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080×6iLY60,YY61198708-198808

WHITE

main68211-95400×2iLY60,YY61198708-198808

YELLOWISH GREEN

main68211-95401iLY61198808-199505

YELLOW

main68211-95402×2iLY61198808-199505

LH,BROWN

main68212-95400×2iLY61198808-199505

RH,YELLOWISH GREEN

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68160-95402iLY60,YY61198708-198808

main68162-95402iLY61198808-199505

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iLY60,YY61198708-198808

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iLY60,YY61198708-198808

68610CHECK ASSY, FRONT DOOR

main68610-95400×2iLY60,YY61198708-198808

main68610-95401×2iLY61198808-199505

68617PIN, FRONT DOOR CHECK

main68617-20011×2iLY61198911-199505

main68617-90A00×2iLY6#,YY61198708-198911

6777295J02WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J02

9015916014

main90159-16014

9017906070

main90179-06070

9018906018

main90189-06018

9033325001

main90333-25001

9152160610

main91521-60610

9322915008

main93229-15008

38 parts on this diagram · 2 diagrams in section
